Description

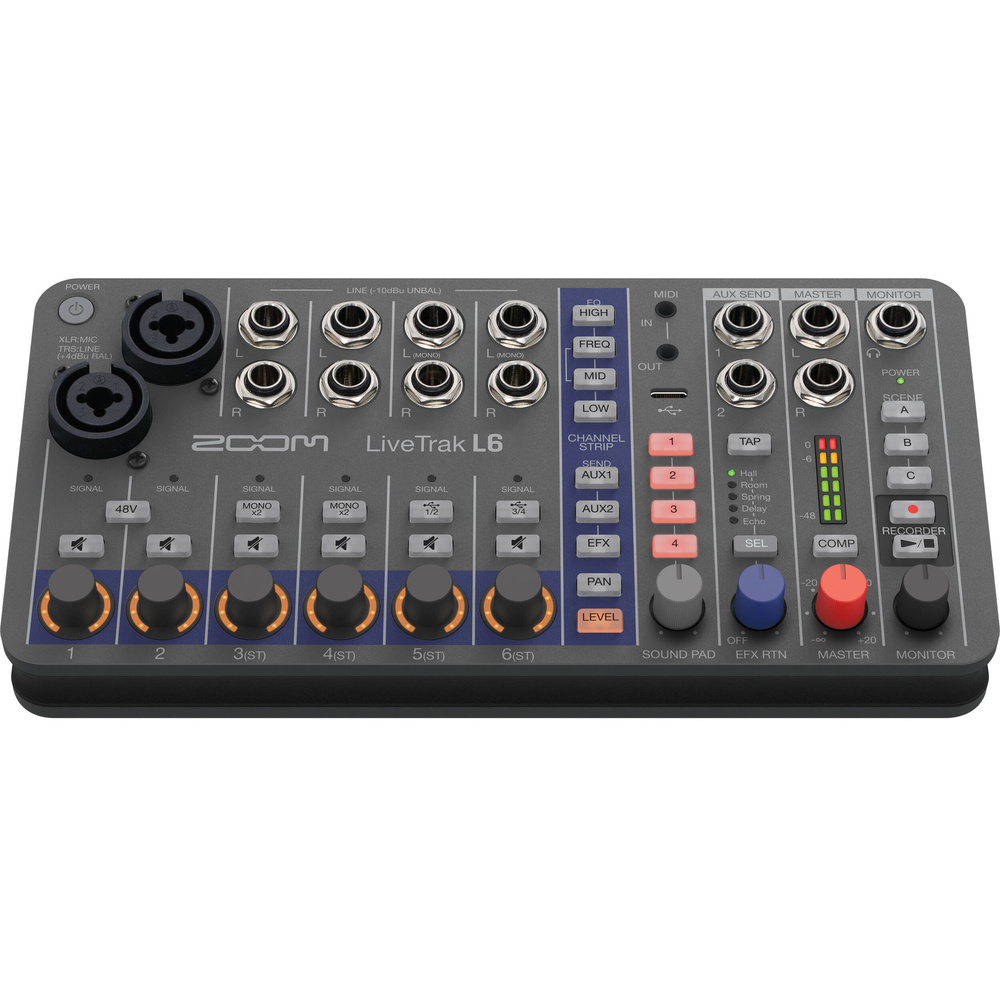

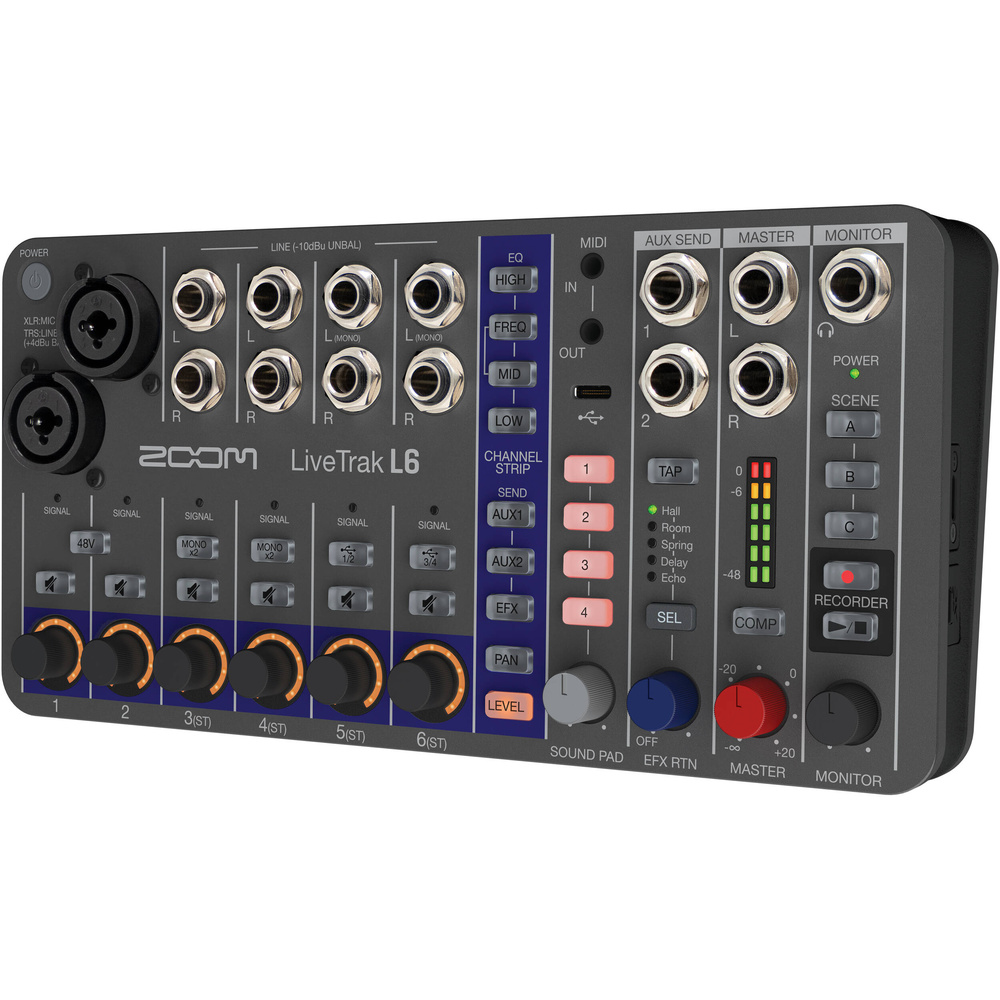

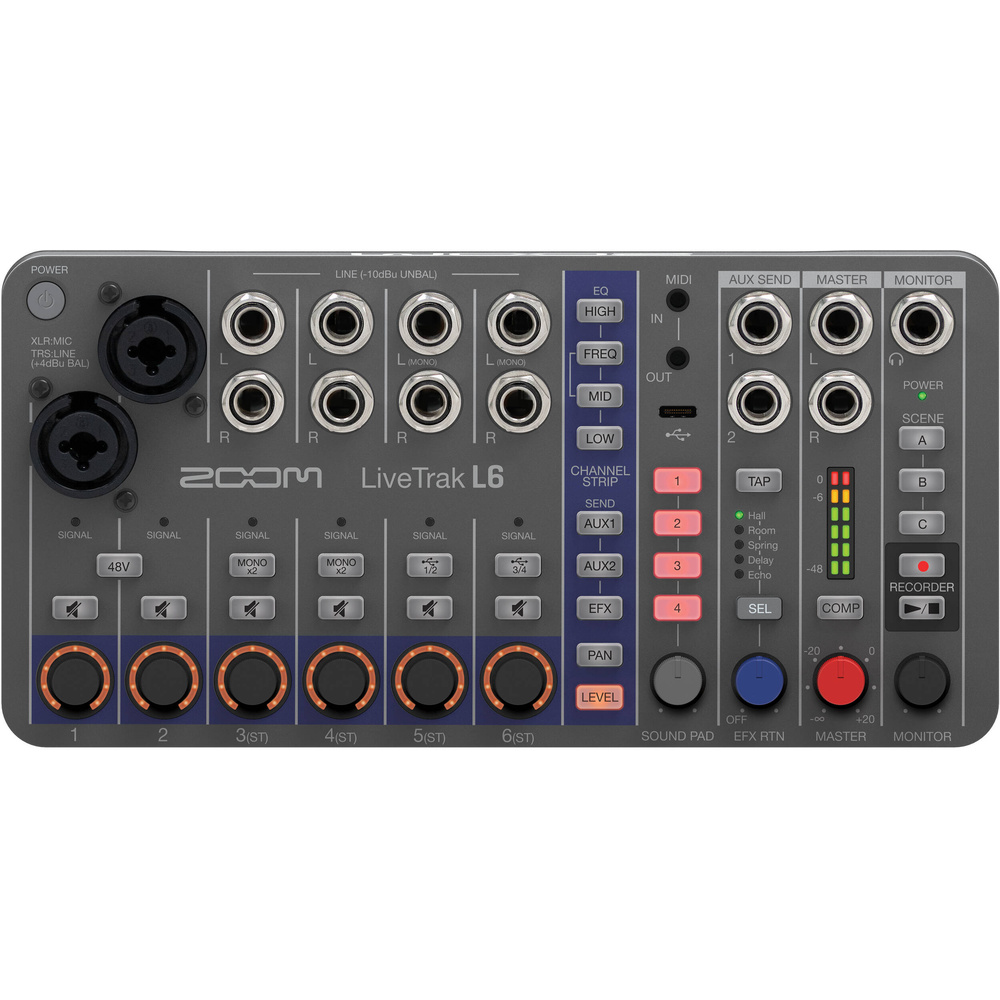

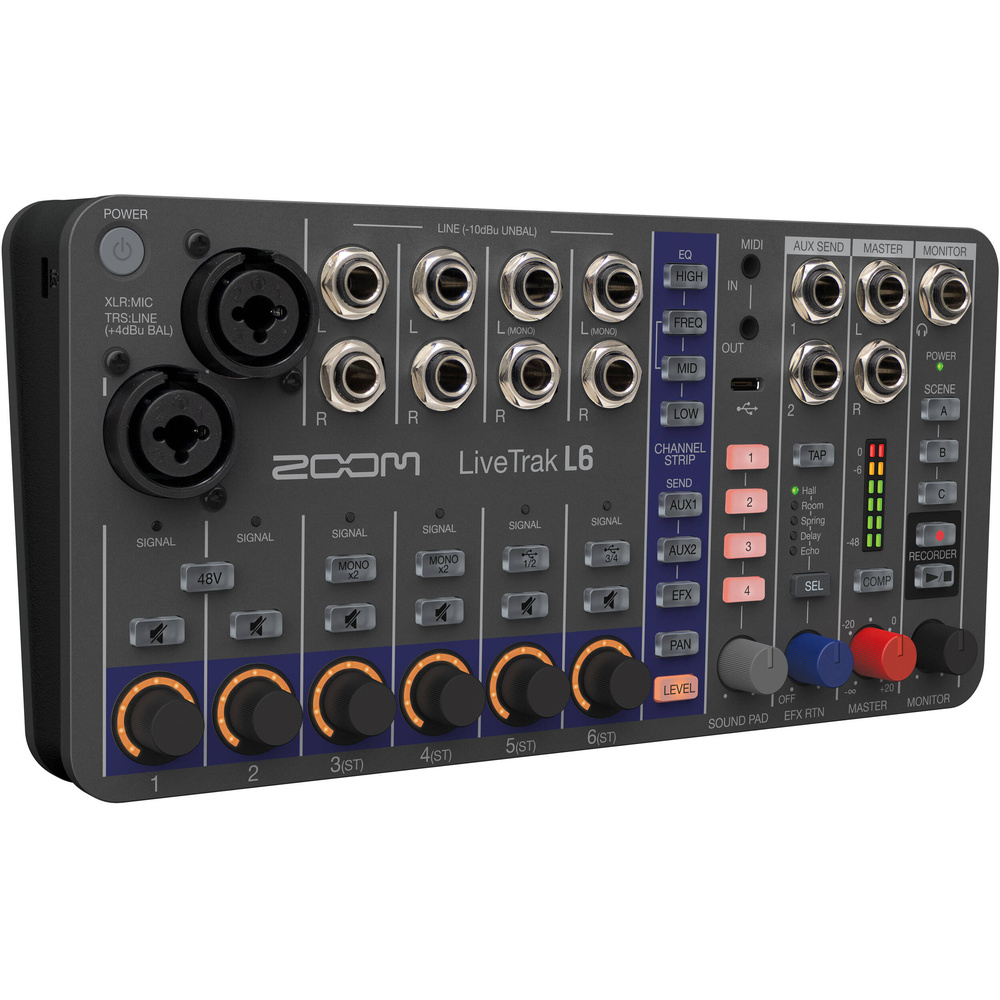

The Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder sits in our Digital Mixers range.
Highlights include portable multitracking Mixer/Recorder, 2 XLR-1/4" Mic/Line inputs with +48V, multitrack recording via microSD and USB, 4 assignable Sound pads (Sample player) and built-in effects and 3-Band AEQ.
Key specifications: frequency response 20 Hz to 20 kHz -1 dB; weight 1.3 lb / 0.6 kg; dimensions 8.8 x 1.8 x 4.5" / 22.3 x 4.6 x 11.4 cm; max I/O capacity 6x Input / 6x Output; number of analogue input channels 6 (2 Mono / 4 Stereo).
An external recorder captures higher-quality codecs than many cameras record internally. In the box: Zoom LiveTrak L-6 portable 6-Channel Digital mixer and multitrack recorder and USB Cable.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Key Specs | |
|---|---|
| Max I/O Capacity | 6x Input / 6x Output |
| Number of Analogue Input Channels | 6 (2 Mono / 4 Stereo) |
| Number of Mic Preamps | 2 |
| Number of Analogue Output Channels | 4 |
| Faders & Level Adjustment | 6 Channel Knob |
| Built-In Effects | 5x Stereo Effect (Type Unspecified) |
| Analogue Inputs | 2x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 8x 1/4" TS Balanced/Unbalanced Line Input (4 Stereo Pairs) |
| Analogue Outputs | 2x 1/4" TRS Balanced/Unbalanced Aux Send 2x 1/4" TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair) 1x 1/4" TRS Unbalanced Stereo Headphone Output |
| Digital I/O | No |
| USB I/O | 1x USB-C 2.0 (Host Connection) |
| Wireless | No |
| Rack Mountable | Yes |
| Mixer | |
| Mix Routing | 2x Mono Aux Send 1x Stereo Main LRC |
| Presets | 3x Scene |
| Metres | Main Metre: 2x 6-Segment LED |
| Signal Processing | |
| AEQ | 3-Band AEQ |
| AEQ Parameters | 1x HF Shelf: ±15 dB at 10 kHz 1x MF Peak: ±15 dB at 100 Hz to 8 kHz 1x LF Shelf: ±15 dB at 100 Hz |
| Graphic AEQ | No |
| Solo/Mute | Mute per Input Channel |
| Audio Delay | No |
| Automatic Mic Mixing | No |
| Digital Audio | |
| Sample Rates | 48 kHz |
| Bit Depth | Up to 32-Bit |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz -1 dB |
| Max Input Level | Combo XLR-1/4" Mic/Line Input: +4 dB (Mic) +24 dB (Line) 1/4" TS Line Input: +9 dB |
| Headphone Output Power | 50 mW per Channel into 63 Ohms (Max) |
| I/O Impedance | XLR Line/Mic Input: 3.8 Kilohms 1/4" TRS Line Input: 39 Kilohms 1/4" TRS Aux/Main Output: 147 Ohms 1/4" TRS Monitor Output: 14.7 Ohms |
| Signal Generator | No |
| Connectivity | |
| Phantom Power | +48 V |
| MIDI I/O | No |
| USB I/O Capacity | 12x Input / 4x Output |
| Expansion Ports | No |
| External Display I/O | No |
| Recording | |
| Max Multitrack Recording | 12 Tracks |
| Media Support | SDHC |
| Power | |
| Input Power | 5 VDC |
| Physical | |
| Dimensions | 8.8 x 1.8 x 4.5" / 22.3 x 4.6 x 11.4 cm |
| Weight | 1.3 lb / 0.6 kg |
In the box
- Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder
- USB Cable
