Description

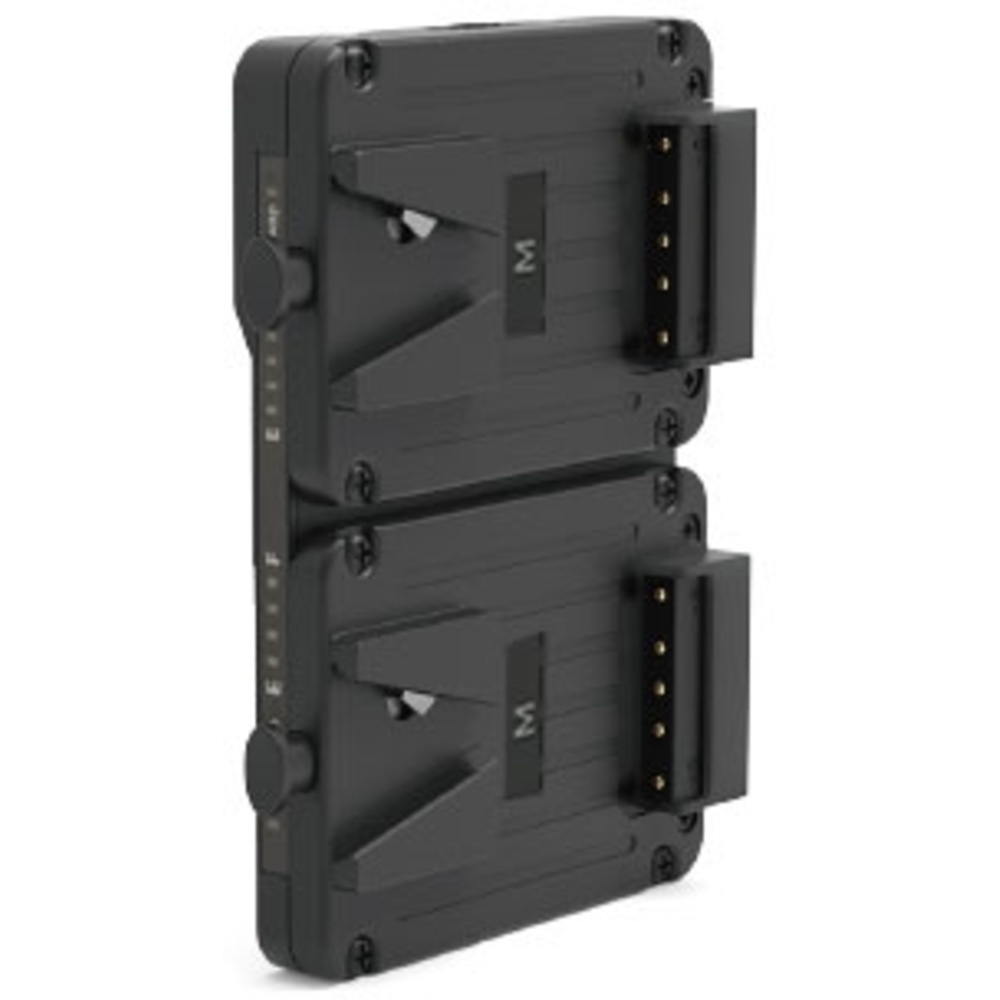

SWIT KA-M20S Dual Pocket V-mount Battery Hot Swap Plate: a battery mounting plate.
Highlights include exclusively for SWIT batteries, SONY&RED power info display, provide 2x D-tap sockets, slim and light weight, balanced install and multiple protection circuit.
Key specifications: input SWIT PB-M series Pocket V-mount Batteries x2 |; output V-mount 11-16.8V |; working temperature -20°C ~ 50°C |; dimension 148×108×28mm |; net weight 238g |.
A V-mount battery powers a camera and accessories from one pack through D-Tap and USB outputs.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Input | SWIT PB-M series Pocket V-mount Batteries x2 | |
|---|---|
| Output | V-mount 11-16.8V | |
| D-tap x2, 11-16.8V | |
| Max Load | Hot swap mode | V-mount: Max load of the single smaller battery |
| High load mode | V-mount: Max load of the single smaller battery x2 | |
| Working temperature | -20°C ~ 50°C | |
| Dimension | 148×108×28mm | |
| Net weight | 238g | |
In the box
- SWIT KA-M20S Dual Pocket V-mount Battery Hot Swap Plate
