Description

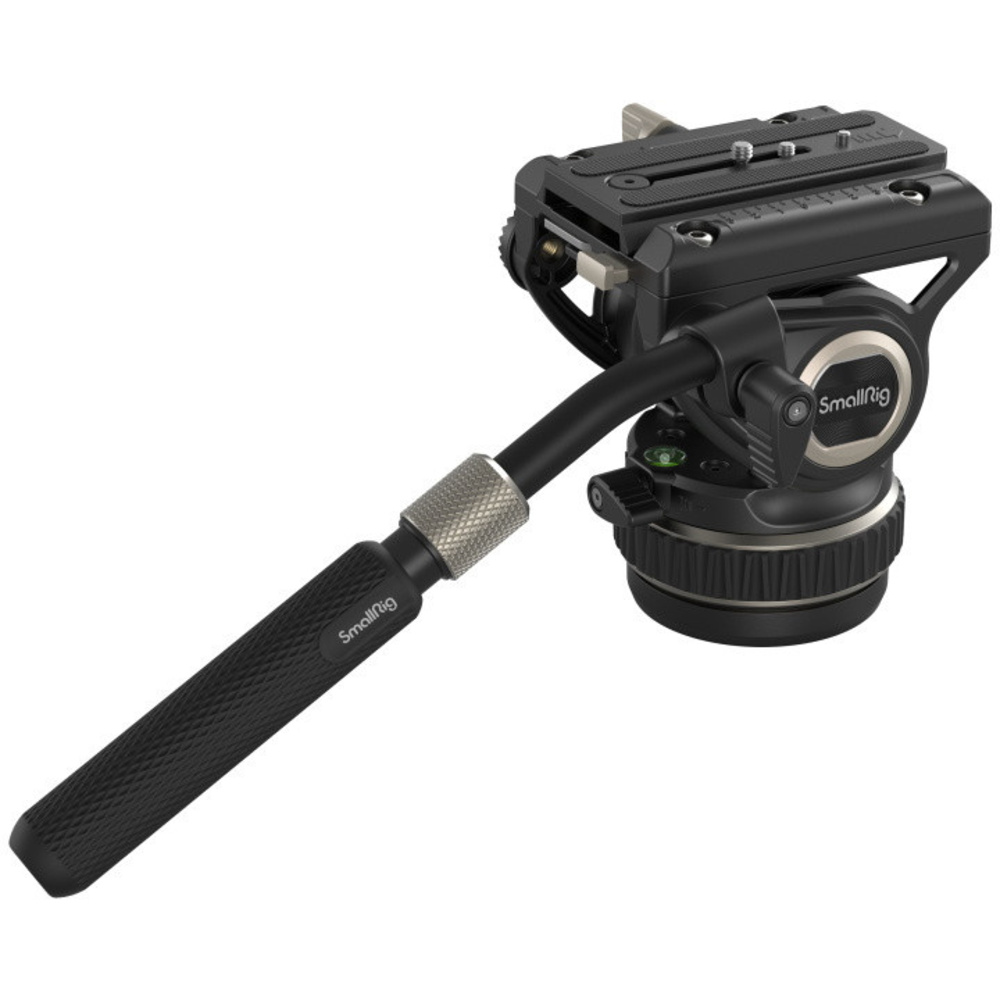

The SmallRig 4165 DH10 Heavy-Duty Video Head is a fluid video head for tripod-based camera work. It suits users who want controlled panning and tilting for video shoots, especially with rigs that need steady movement and a compact head setup. Its 75mm bowl base and 10kg load capacity make it a practical option for a range of cameras and accessories.

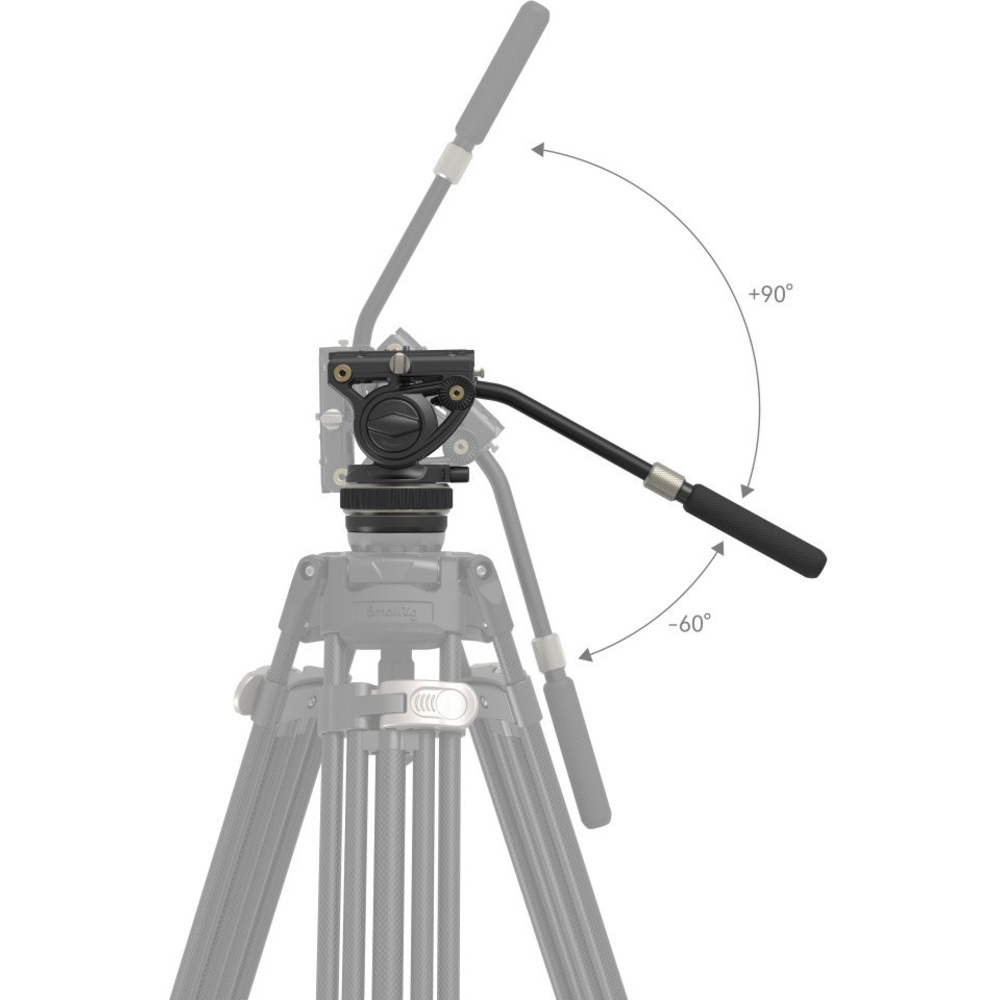

It features an adjustable step-less damping system, 90° to -60° tilt, and an 8kg counterbalance for smoother control through the movement range. The head measures 14.0cm high and weighs 1.2 ± 0.1kg. The detachable telescopic handle extends from 23.0 to 36.0cm. It also includes a 1/4-20 threaded hole for mounting accessories.
In use, it pairs with a tripod or support that accepts a 75mm bowl base. It can switch between Manfrotto and DJI RS QR plates, which helps when moving between tripod and stabiliser setups. The box includes the Video Head DH01, an Allen wrench and a user manual.
Specifications
| Product Dimensions | 118 x 158 x 140 mm |
|---|---|
| Package Dimensions | 280 x 175 x 133mm |
| Product Weight | 1.2 ± 0.1kg |
| Package Weight | 1.5 ± 0.1kg |
| Video Head Height | 14.0cm |
| Bow Base Type | Flat |
| Bowl Base Diameter | 75.0mm |
| Tilt Range | 90°/-60° |
| Counterbalance | 8.0kg |
| Load Capacity | 10kg |
| Handle Length | 23.0~36.0cm |
| Material(s) | Carbon Fiber, Aluminum Alloy, POM, Stainless Steel, Silicone |
Product details
| Load Capacity | 10.0 kg |
|---|---|
| Base Type | 75mm Bowl |
In the box
- Video Head DH01 x 1
- Allen Wrench x 1
- User Manual x 1
