Description

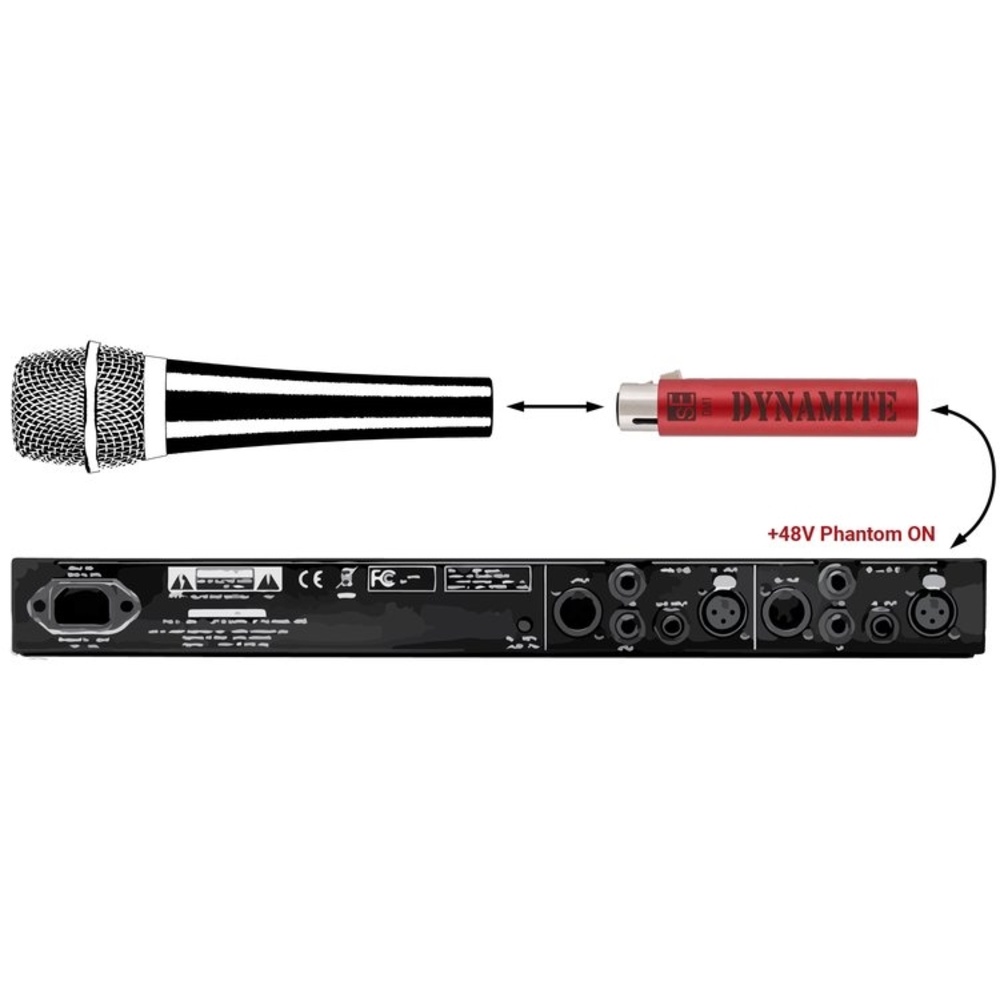

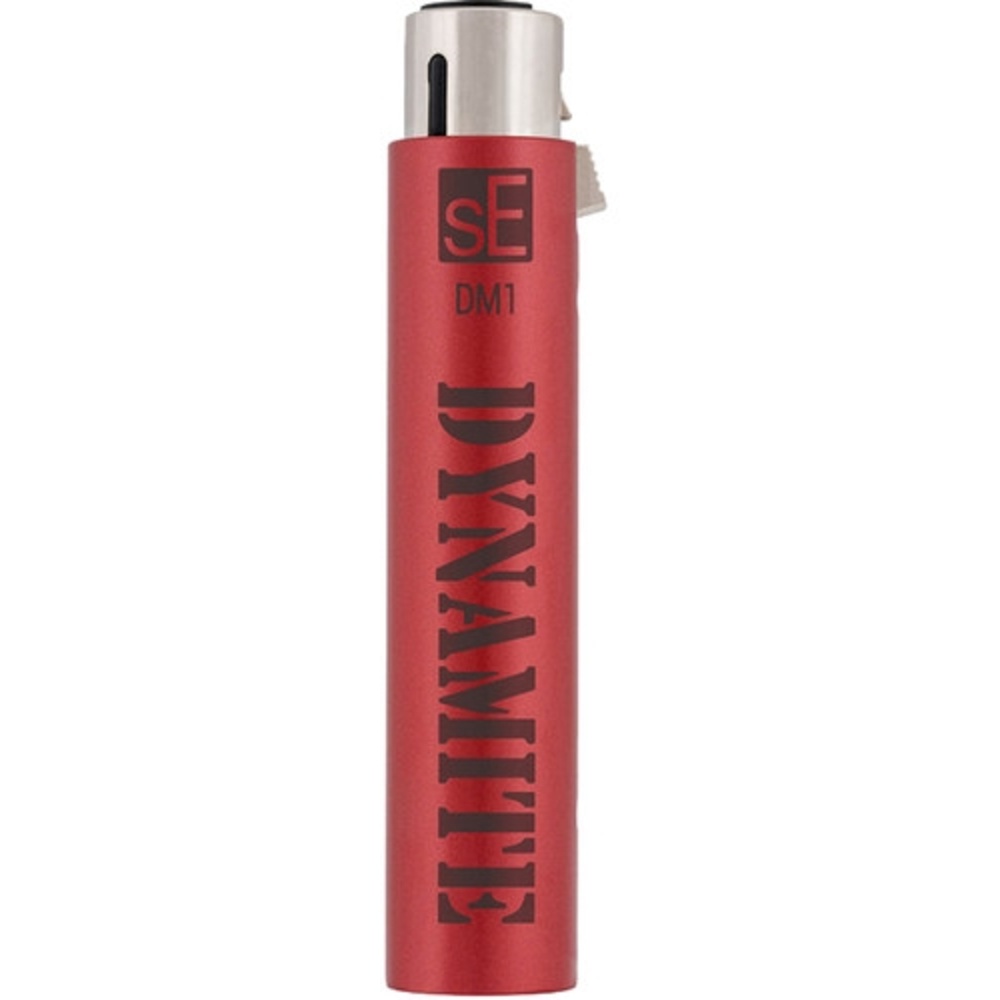

sE Electronics DM1 Dynamite Microphone Preamp: an inline problem solver.
Highlights include for passive ribbon or dynamic microphone, provides 28 dB of gain, Class-A Design, low self-noise and requires phantom Power.
Key specifications: frequency response 10 Hz to 120 kHz -0.3 dB; weight 2.8 oz / 79.9 g; dimensions 0.75 x 3.76" / 1.91 x 9.55 cm; In-Line accessory type Pre-Amplifier; input / output level Input: Mic Level Output: Mic Level.
Manufacturer model number SE_DM1 MICPRE.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| General | |
|---|---|
| In-Line Accessory Type | Pre-Amplifier |
| Input / Output Level | Input: Mic Level Output: Mic Level |
| Number of Channels | 1 |
| Gain | +28 dB (1-Kilohm Load) |
| Circuit Type | Class-A FET |
| Controls | None |
| Connectivity | |
| I/O | 1 x XLR 3-Pin Female Input 1 x XLR 3-Pin Male Output |
| Performance | |
| Frequency Response | 10 Hz to 120 kHz -0.3 dB |
| Impedance | 135 Ohms |
| Load Impedance | 1 Kilohms (Minimum) |
| Max Output Level | +8.3 dBV (0.5% THD) |
| Noise | Output Noise: 30 dBm (JIS-A) |
| Power | |
| Operating Voltage | 48 V (Phantom Power) |
| Operating Current Consumption | 3.0 mA |
| Physical | |
| Dimensions | 0.75 x 3.76" / 1.91 x 9.55 cm |
| Weight | 2.8 oz / 79.9 g |
In the box
- sE Electronics DM1 Dynamite Microphone Preamp
