Description

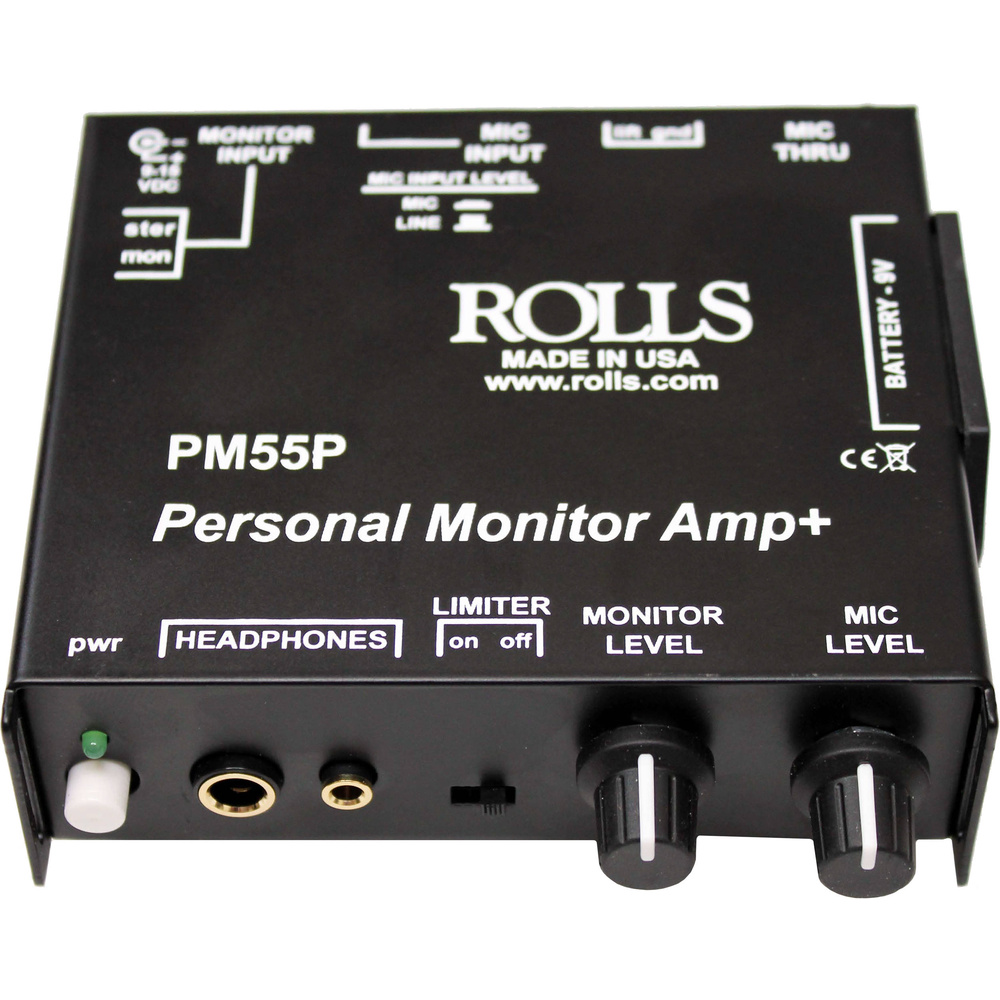

The Rolls PM55P Stereo Personal Monitor Amplifier with Optical Limiter is an inline problem solver.
Highlights include personal Monitor amp for live and studio, built-in switchable optical limiter, XLR mic in & pass through, ground lift on XLR signal and Stereo/Mono 1/4" Monitor input.
Key specifications: weight 1 lb / 450 g; max input -20 dB XLR, 40 dB Monitor; input impedance 600 Ohm Mic, -22 kilohms Monitor; output impedance 10 Ohms; gain 20 dB 1/4", 50 dB XLR.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: Rolls PM55P stereo personal Monitor amplifier with optical limiter and wall Power adapter.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Max Input | -20 dB XLR, 40 dB Monitor |
|---|---|
| Input Impedance | 600 Ohm Mic, -22 kilohms Monitor |
| Output Impedance | 10 Ohms |
| Gain | 20 dB 1/4", 50 dB XLR |
| Bandwidth | 50 Hz to 20 kHz |
| S/N Ratio | 90 dB |
| Limiter Threshold Range | 0 dB |
| Current Draw | 70 mW Nominal |
| Max Output | 100 mW at 16 Ohm |
| Power | 9 to 15 VDC |
| Size | 4.5 x 4 x 1.4" / 114 x 101.6 x 34.9 mm |
| Weight | 1 lb / 450 g |
In the box
- Rolls PM55P Stereo Personal Monitor Amplifier with Optical Limiter
- Wall Power Adapter
