Description

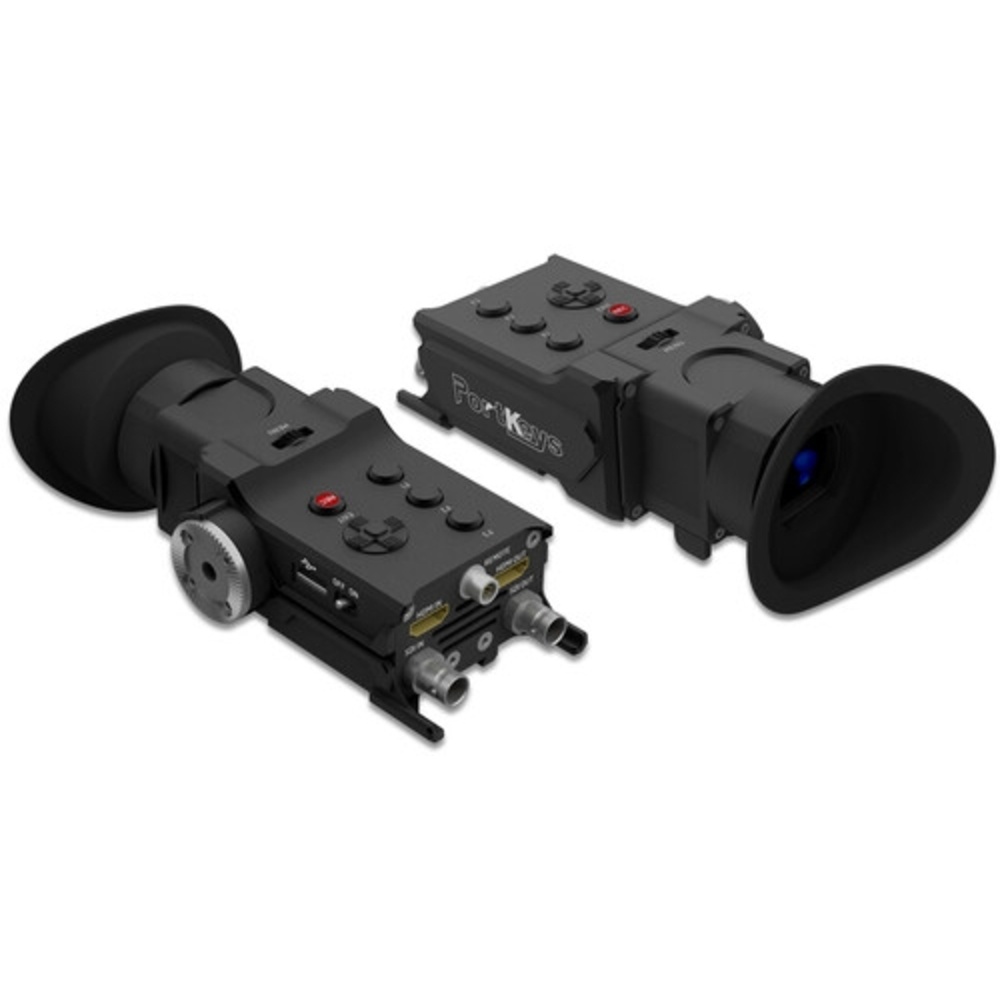

Portkeys OEYE 4K 3G-SDI/HDMI EVF with RED Camera Menu Control: a viewfinder.
Highlights include 1920 x 1080 resolution Micro-OLED EVF, allows RED DSMC2/KOMODO menu control, 3G-SDI and HDMI Inputs/Loop outputs, rosette mount allows rotation and synchronization with RED fan mute.
Key specifications: mounting 1 x Rosette; weight 400 g, Including; dimensions 180 x 72.4 x 69.7 mm, Including; material of construction Aluminium; panel type OLED.
In the box: Portkeys OEYE 4K 3G-SDI/HDMI EVF with RED Camera menu control, 4-Pin to D-Tap Power Cable, 5-Pin to 5-Pin Power Cable, 4-Pin to 3-Pin Control Cable, 9-Pin to 3-Pin Control Cable and SDI Cable and 3 more items. Manufacturer model number OEYE-RED.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Color/Monochrome | Color |
| Panel Type | OLED |
| Display Size | 0.71" / 1.8 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Touchscreen | No |
| Maximum Brightness | 200 cd/m2 |
| Contrast Ratio | 100,000:1 |
| Bit Depth / Colour Support | 8-Bit (16.7 Million Colours) |
| Pixels Per Inch (ppi) | 3102 ppi |
| Image Controls | Colour Temperature Selection, Customisable Aspect Ratios, False Color, Focus Peaking, H/V Delay, Image Flip, Image Rotate, OSD Flip, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra |
| I/O | |
| Video | 1 x BNC (3G-SDI) Input |
| Video Format | HDMI |
| Camera Connection | 5-Pin |
| Power | 1 x 4-Pin LEMO Input |
| Optics | |
| Diopter Correction | -3.0 to +8.0 |
| Power | |
| DC Input Power | 7 to 24 VDC |
| Power Consumption | 10 W |
| General | |
| Mounting | 1 x Rosette |
| Material of Construction | Aluminium |
| Dimensions | 180 x 72.4 x 69.7 mm, Including |
| Weight | 400 g, Including |
In the box
- Portkeys OEYE 4K 3G-SDI/HDMI EVF with RED Camera Menu Control
- 4-Pin to D-Tap Power Cable
- 5-Pin to 5-Pin Power Cable
- 4-Pin to 3-Pin Control Cable
- 9-Pin to 3-Pin Control Cable
- SDI Cable
- Mounting Clamp
- Allen Wrench
- Plastic Storage Case
