Description

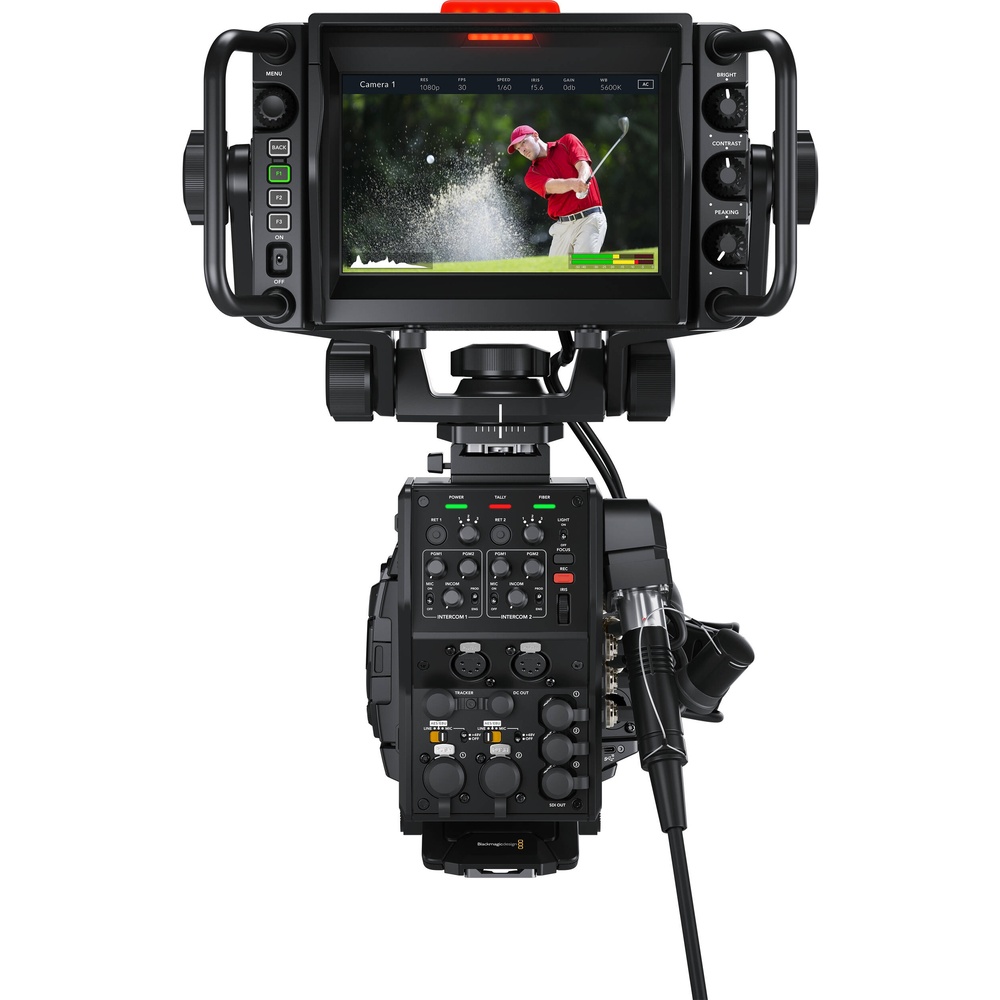

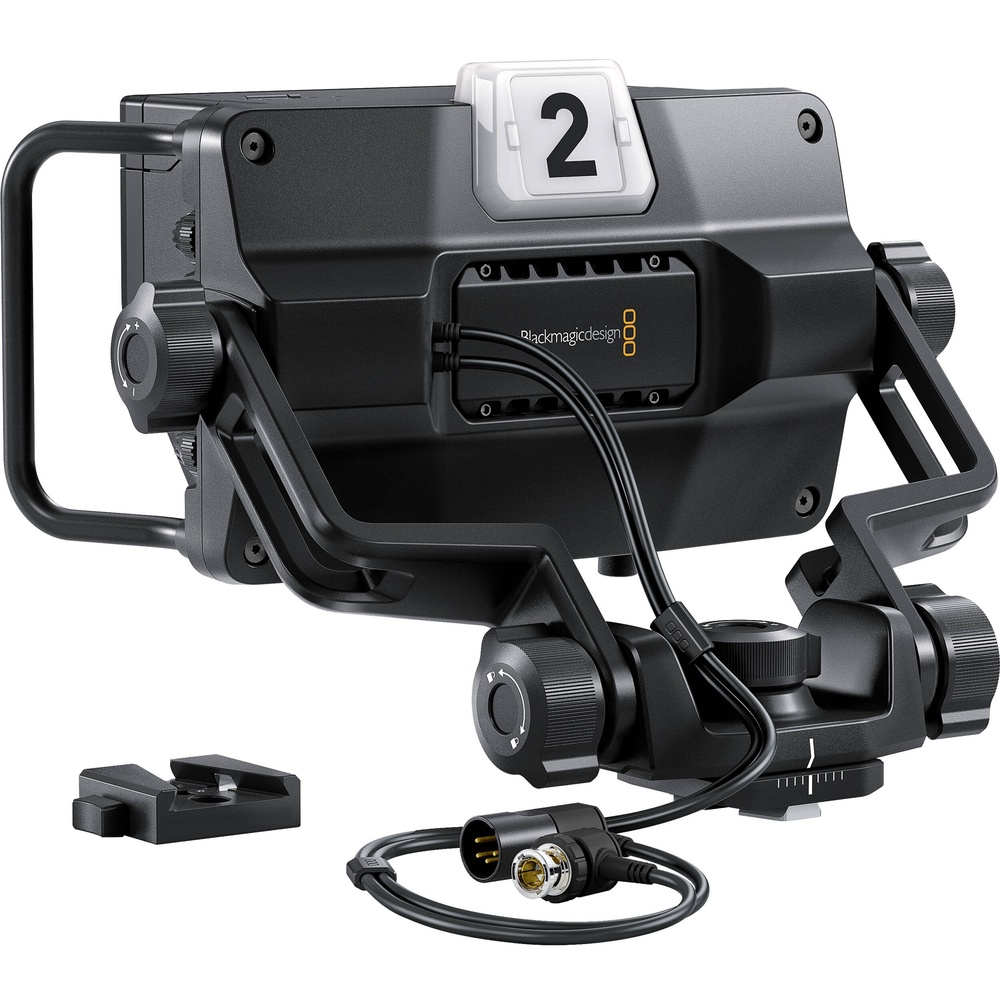

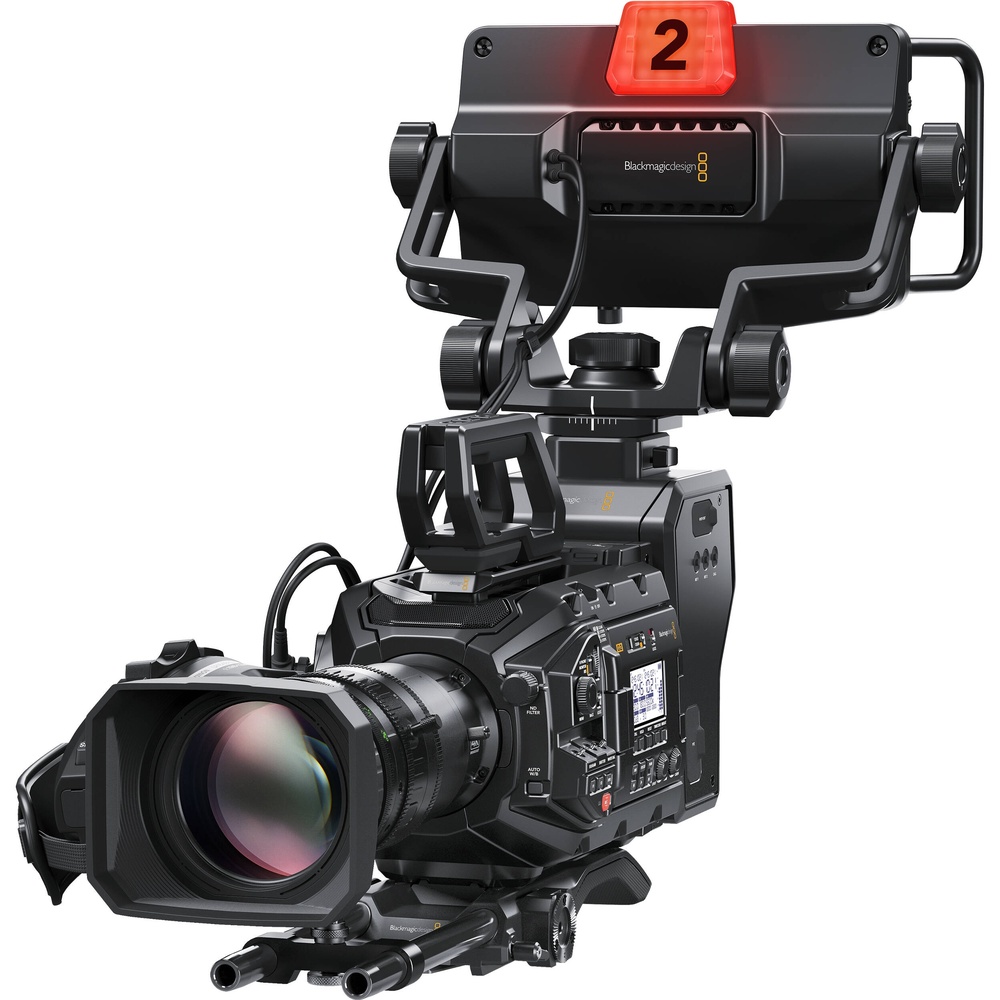

The Blackmagic Design 7" URSA Studio Viewfinder G2 sits in our Viewfinders range.
Highlights include designed for URSA G2/URSA mini cameras, 7" 1920 x 1200 TFT LCD Screen, 3G-SDI connector to Camera, 2000 cd/m² Brightness and 4-Pin XLR Power, V-Lock mount.
Key specifications: mounting 1 x V-Lock; weight 2.69 kg; dimensions 33.1 x 30.4 cm; panel type TFT LCD; display size 7.0" / 17.8 cm.
In the box: Blackmagic Design 7" URSA studio viewfinder G2 and sun hood. Manufacturer model number CINEURSANSVF2.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Colour/Monochrome | Colour |
| Panel Type | TFT LCD |
| Display Size | 7.0" / 17.8 cm |
| Screen Resolution | 1920 x 1200 |
| Touchscreen | No |
| Maximum Brightness | 2000 cd/m 2 |
| Image Controls | False Colour, Focus Assist, Focus Peaking, Screen Markers |
| I/O | |
| Video | 1 x BNC (3G-SDI) Input |
| Video Format | SDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Power | 1 x 4-Pin XLR (12 VDC) Input |
| Other I/O | 1 x USB 2.0 (USB Type-C) Input |
| Power | |
| DC Input Power | 12 VDC |
| Environmental | |
| Operating Humidity | 0 to 90% (Non-Condensing) |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 60°C |
| General | |
| Mounting | 1 x V-Lock |
| Dimensions | 33.1 x 30.4 cm |
| Weight | 2.69 kg |
In the box
- Blackmagic Design 7" URSA Studio Viewfinder G2
- Sun Hood
