Description

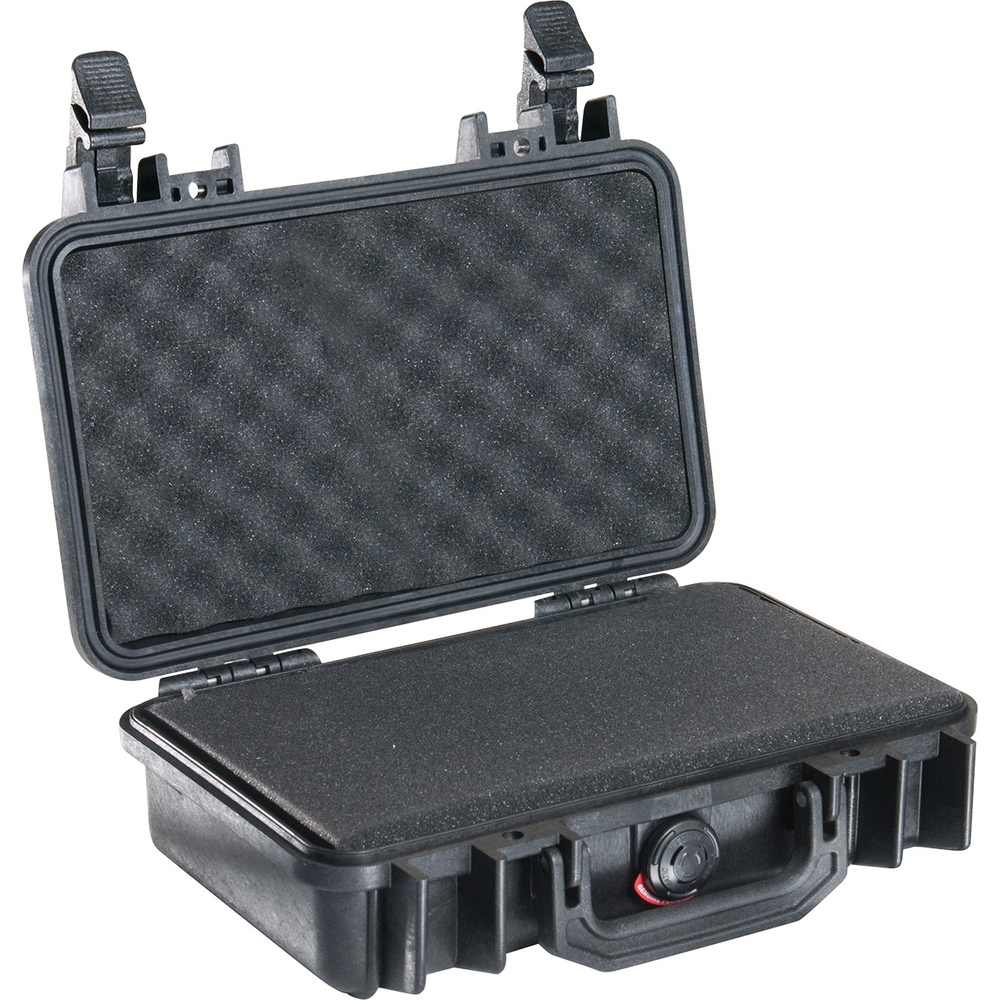

The Pelican 1170 Case is a compact hard case with foam that suits people needing protection for small cameras, audio accessories, lighting parts or other delicate gear. It is made for carrying items that need a rigid shell, a sealed lid and internal cushioning. The size suits compact kits rather than larger camera bodies or bulky accessories.
It has an interior size of 26.8 x 15.3 x 8 cm and an exterior size of 29.6 x 21.2 x 9.6 cm. The lid depth is 2.7 cm and the bottom depth is 5.3 cm. The case weighs 1 kg with foam and 0.9 kg empty. It uses a polypropylene body, ABS latches, a polymer O-ring, stainless steel pins and polyurethane foam. The padlock hole diameter is 0.5 cm, and buoyancy is 3.3 kg.
In use, the case is suited to compact camera accessories, small audio items, cables or similar gear that benefits from a shaped foam interior. The foam can be used to support and separate items during transport. It suits gear sized to the listed internal dimensions.
Specifications
| DIMENSIONS | |
|---|---|
| Interior | (L×W×D) 26.8 x 15.3 x 8 cm |
| Exterior | (L×W×D) 29.6 x 21.2 x 9.6 cm |
| MEASUREMENTS | |
| Lid Depth | 2.7 cm |
| Bottom Depth | 5.3 cm |
| Total Depth | 8 cm |
| Int Volume | 0.003 m³ |
| Padlock Hole Diameter | 0.5 cm |
| WEIGHTS | |
| Weight With Foam | 1 kg |
| Weight Empty | 0.9 kg |
| Buoyancy | 3.3 kg |
| MATERIALS | |
| Body Material | Polypropylene |
| Latch Material | ABS |
| O-Ring Material | Polymer |
| Pins Material | Stainless Steel |
| Foam Material | Polyurethane |
| Purge Body Material | ABS |
| Purge Vent Material | 3 Micron Hydrophobic Non-Woven |
| TEMPERATURES | |
| Minimum Temperature- | -40 ° C |
| Maximum Temperature | 99 ° C |
| APPROVALS | |
| Certifications | IP67 |
Product details
| Colour | Black |
|---|---|
| Exterior Length | 29.6 cm |
| Exterior Width | 21.2 cm |
| Exterior Depth | 9.6 cm |
| Interior Length | 26.8 cm |
| Interior Width | 15.3 cm |
| Interior Depth | 8.0 cm |
| Weight | 0.95 kg |
| Insert Type | Pick N Pluck Foam |
| Pelican Series | Protector |
| Wheels | Without Wheels |
| Latch Type | ABS Double Throw Latches |
