Description

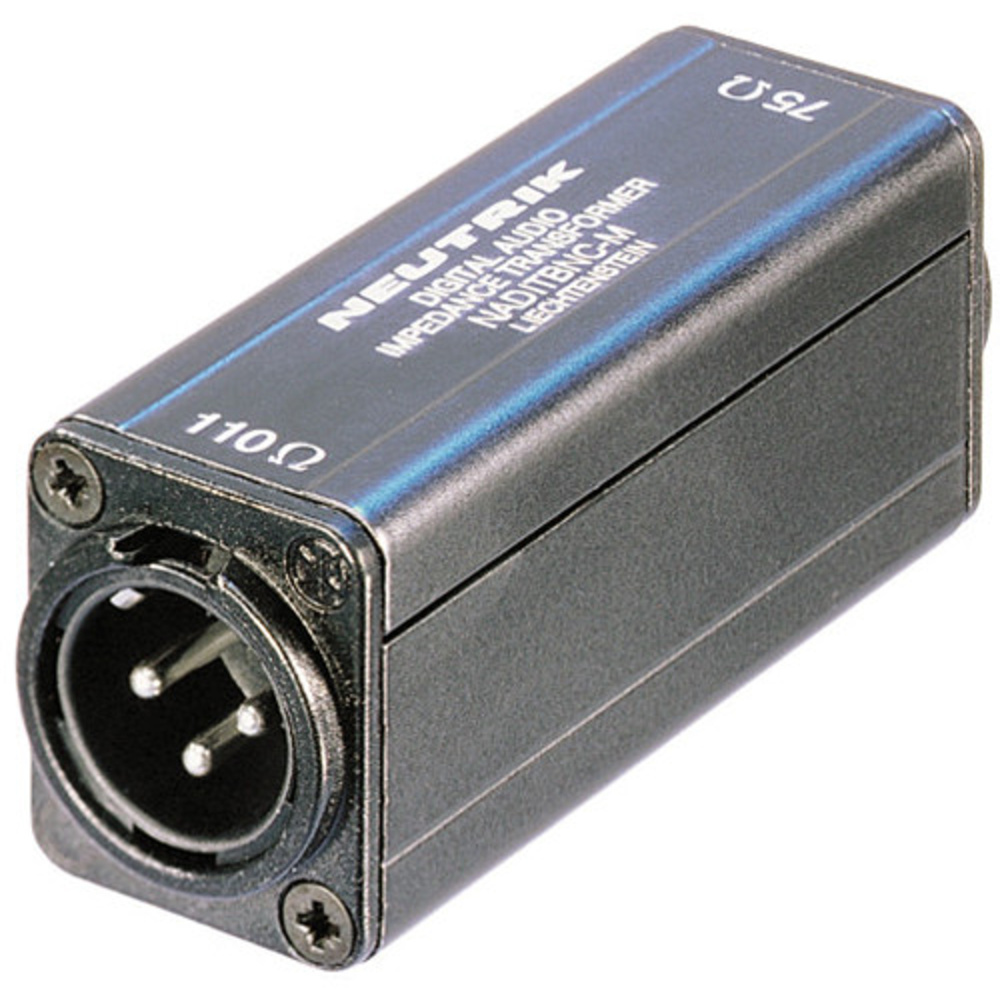

The Neutrik NADITBNC-M - AES/EBU Impedance Transformer sits in our Converters & Adaptors range. Compatible with Balanced 110 Ω and coaxial 75 Ω lines.
Highlights include female BNC 75 Ω input, male XLR chassis connector 110 Ω output, interfaces balanced and coaxial lines, passive impedance transformer and for digital audio signal cable runs.
Key specifications: frequency range 0.1 - 6 MHz; cable connector BNC Female; connection type Adapter; compatible with Balanced 110 Ω and coaxial 75 Ω lines; title NADITBNC-M.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Title | NADITBNC-M |
|---|---|
| Connection type | Adapter |
| Gender | male |
| Frequency range | 0.1 - 6 MHz |
| Rated voltage | ≤ 5 V p-p |
| VSWR | < 1.1 |
| Return loss | > 26.4 dB |
| Insertion loss | < 0.3 dB @ 0.1 MHz to 10 MHz |
Product details
| Cable Connector | BNC Female |
|---|---|
| Compatible With | Balanced 110 Ω and coaxial 75 Ω lines |
