Description

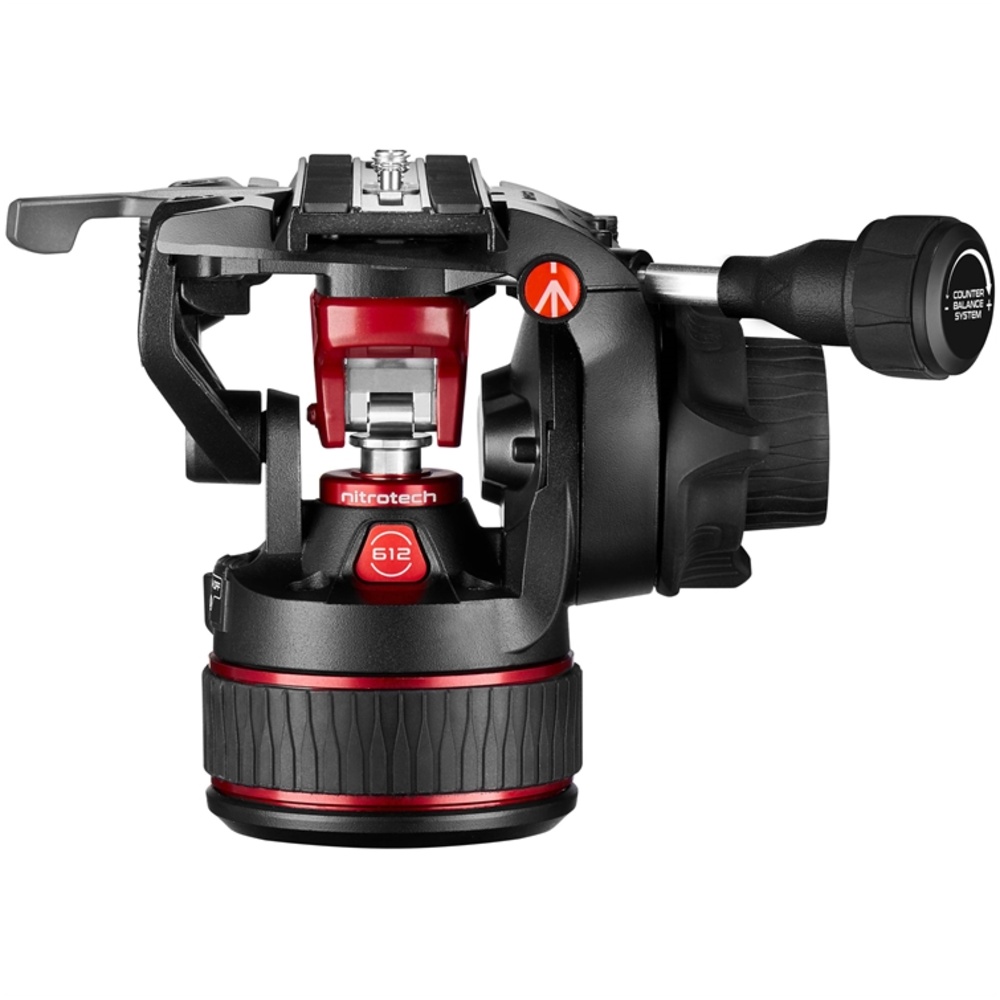

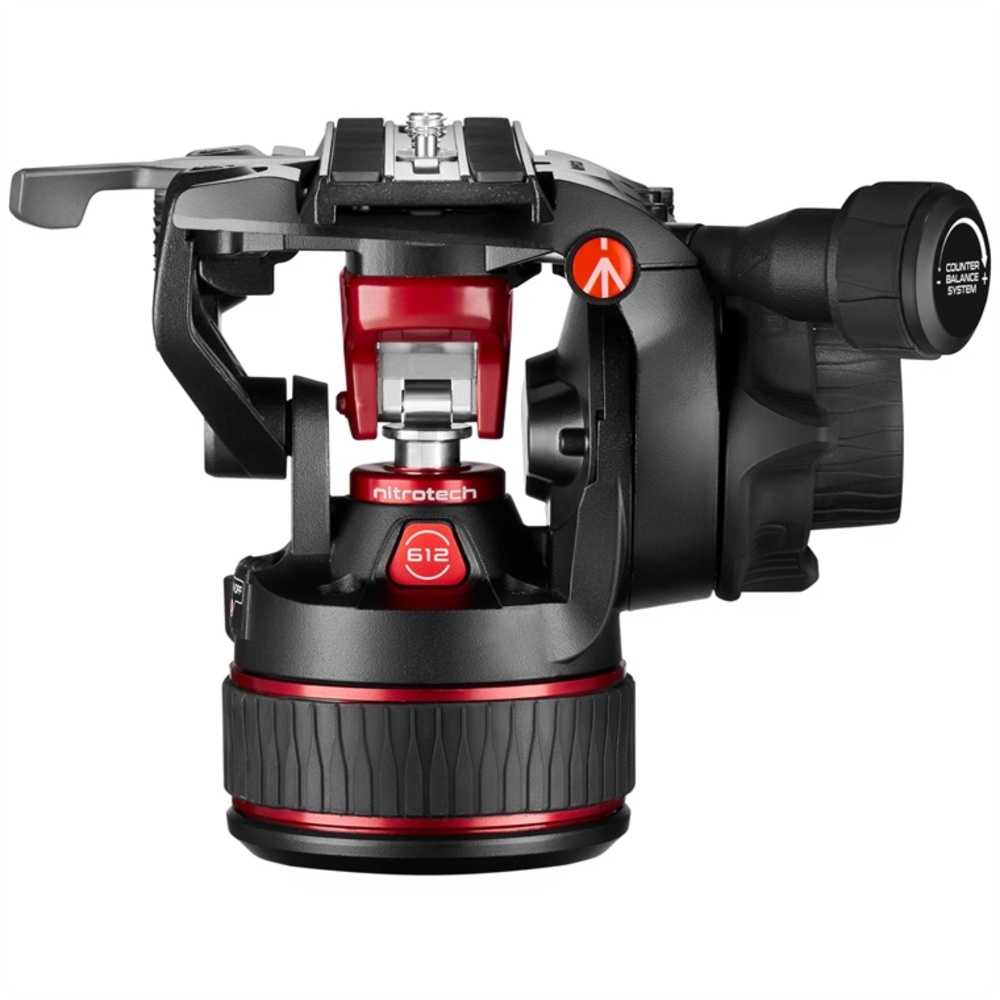

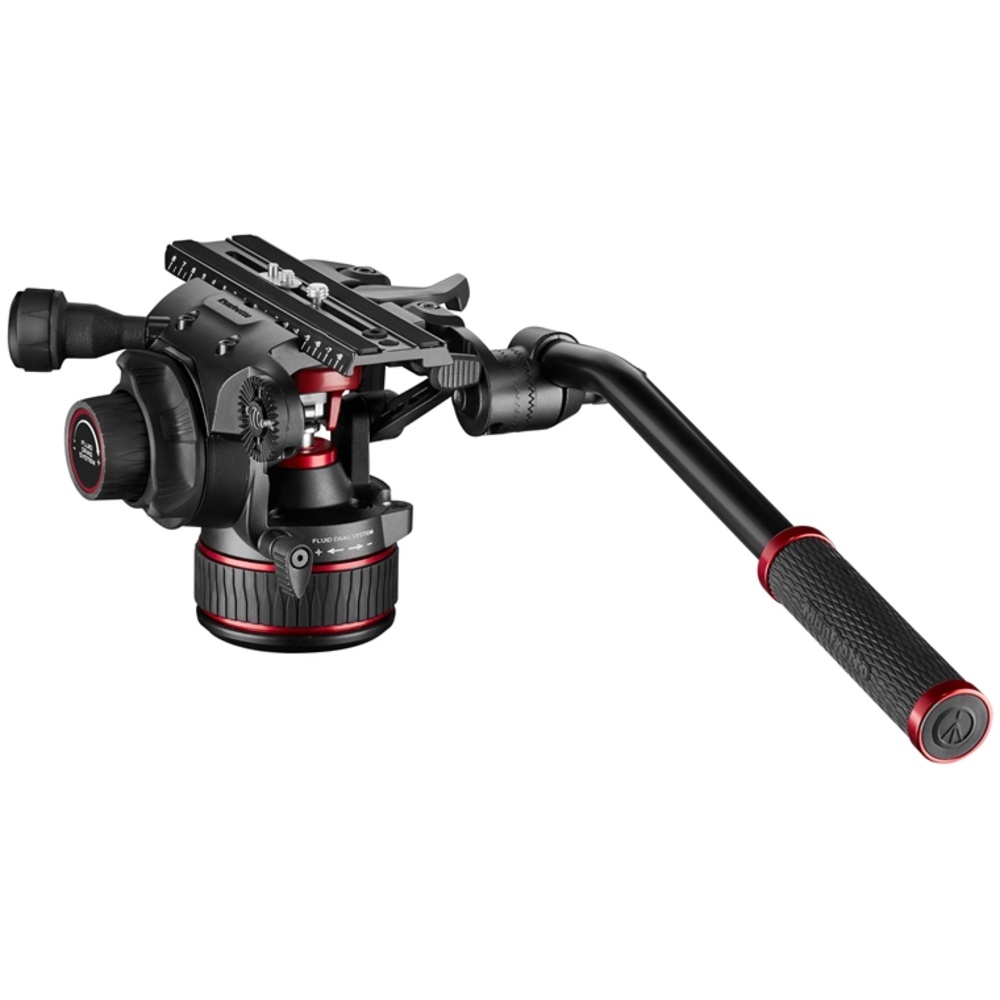

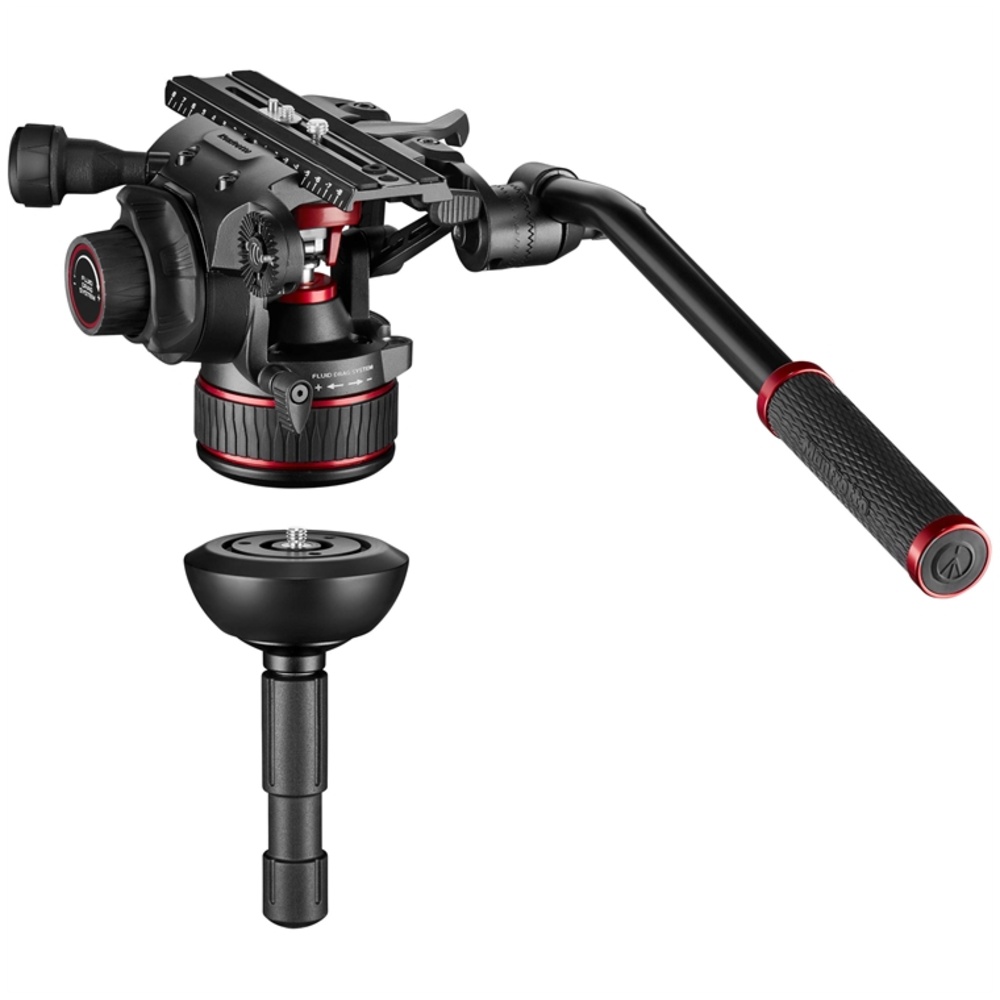

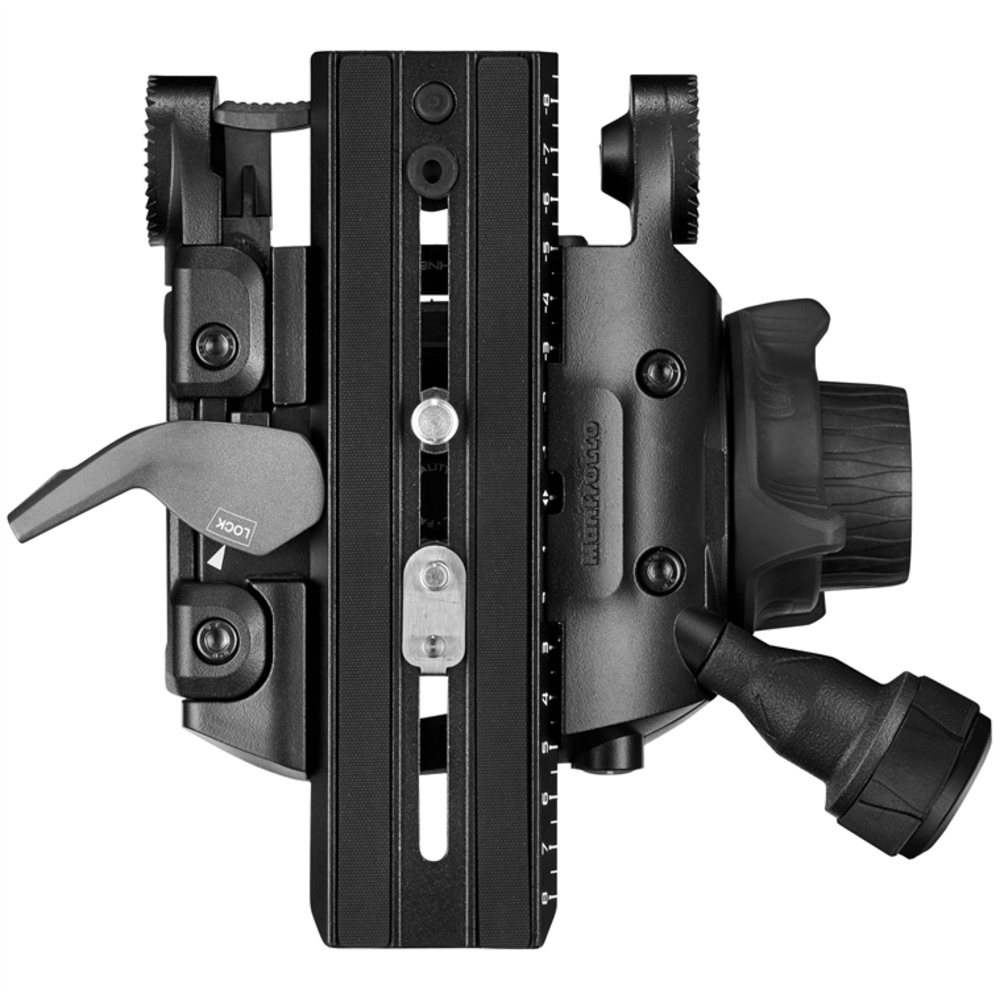

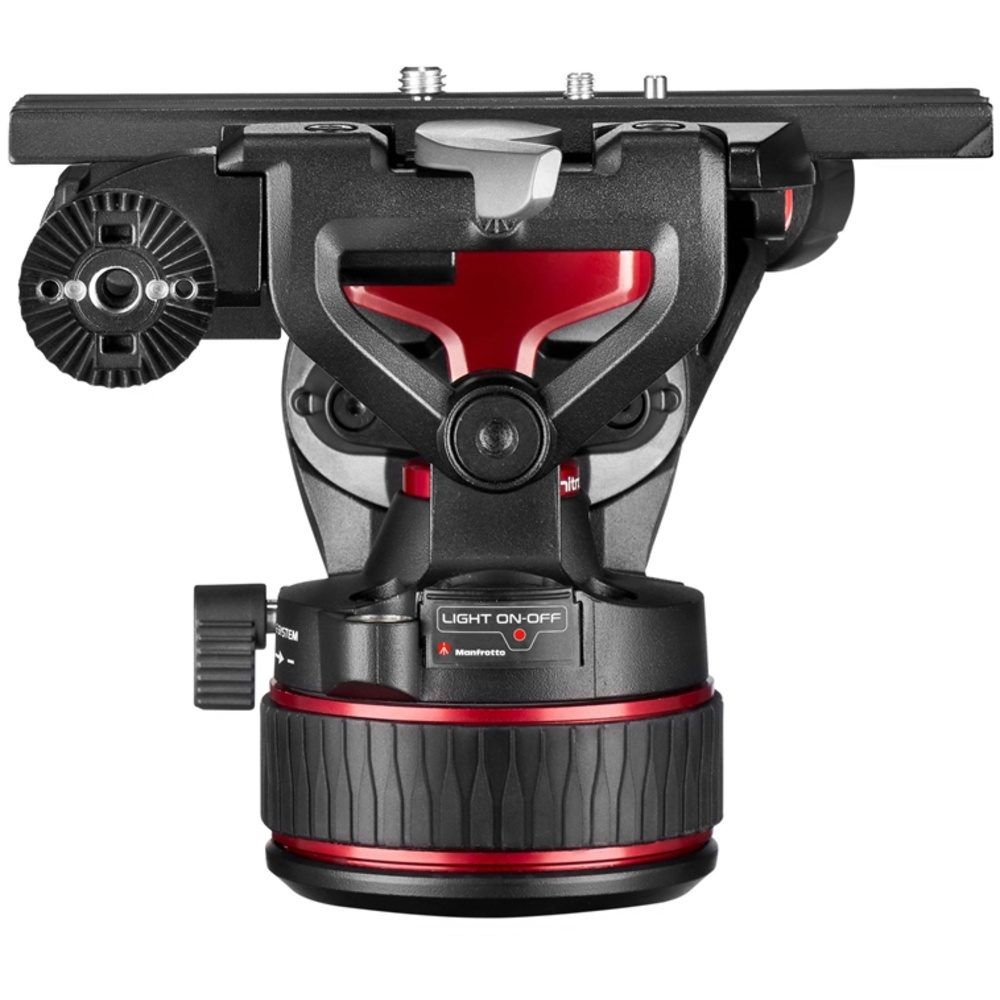

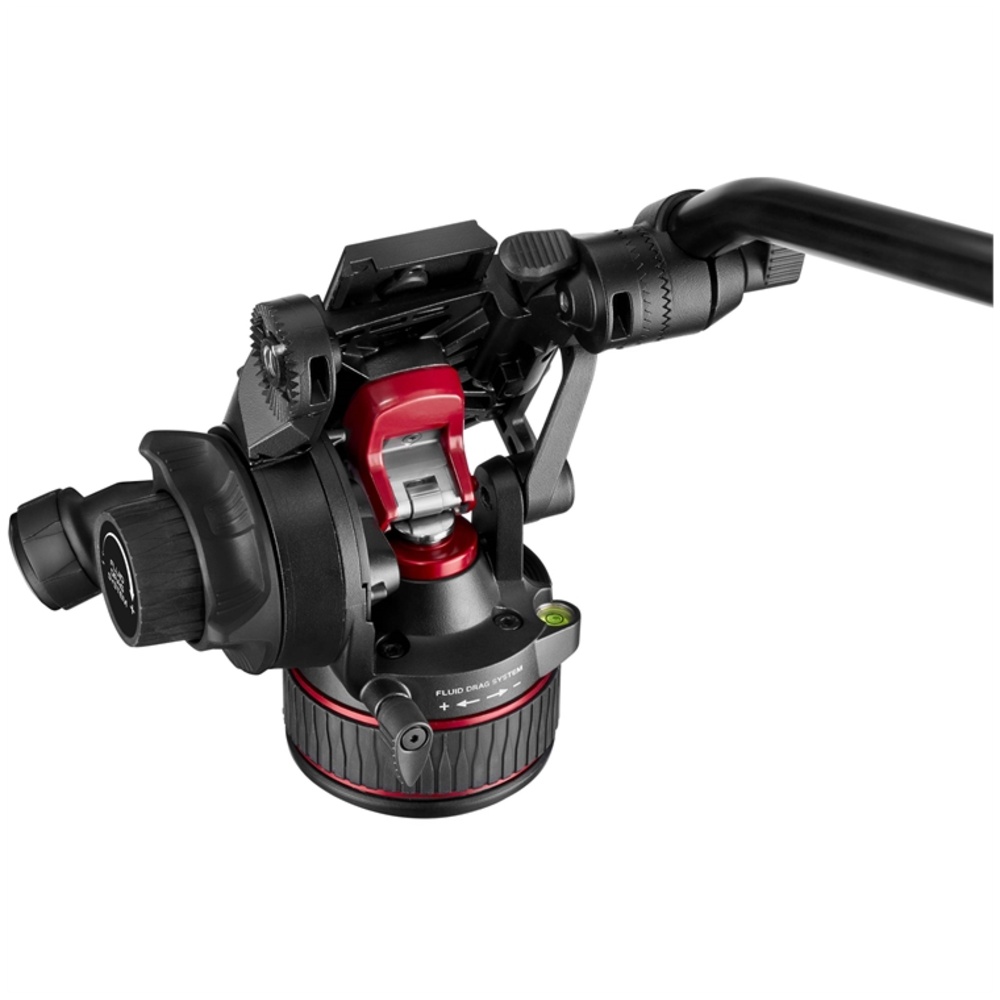

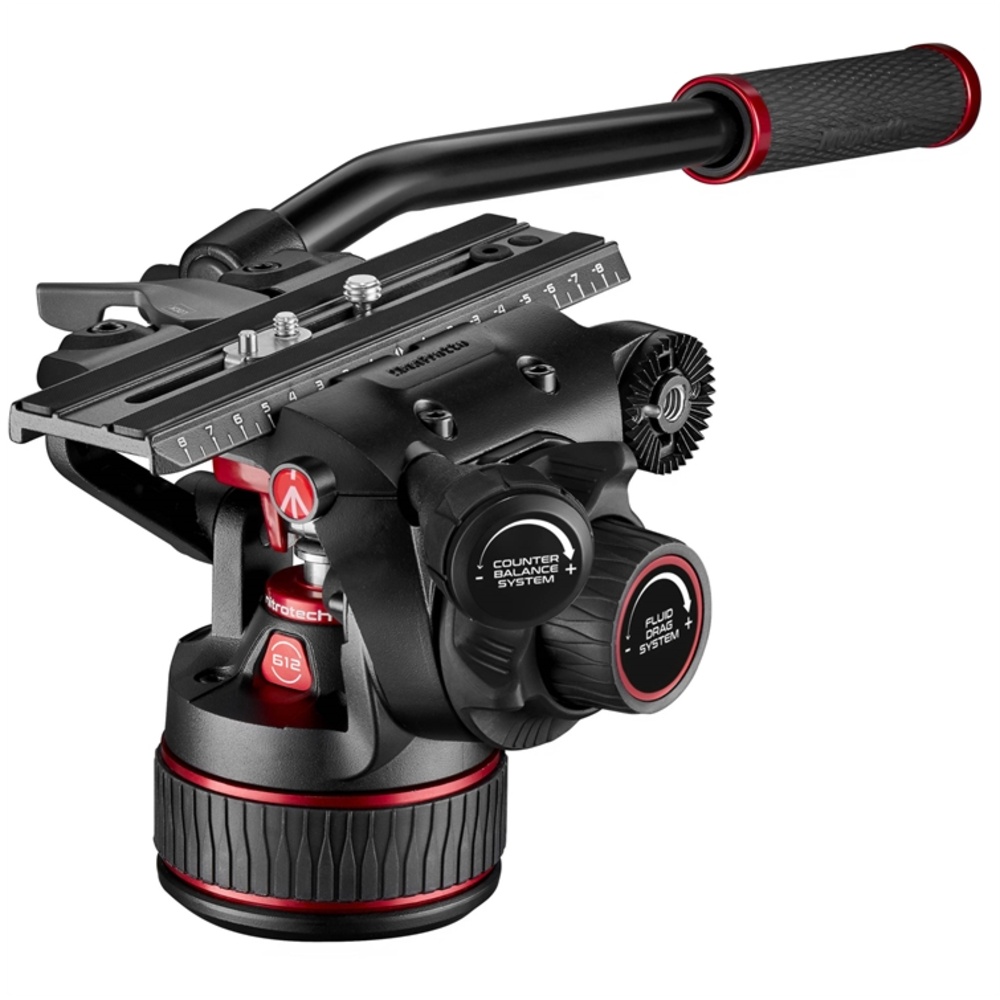

The Manfrotto Nitrotech 612 Fluid Video Head With Continuous CBS is a video tripod head.
Highlights include nitrotech fluid video head with continuous CBS, variable continuous fluid pan & tilt drag system, side lock plate attachment and 3/8” easy link connector for accessories, with anti-rotation. Fluid video head with continuous counterbalance system (4-12 kg).
Key specifications: load capacity 3.99 to 11.97 kg at CoG 5.5 cm; weight 2.3 kg; material Aluminium; camera plate features Quick Release; base mount 3/8"-16 Female.
Check the load rating against the weight of your camera, lens and accessories. In the box: Manfrotto nitrotech 612 fluid video head with continuous CBS, pan bar, 504PLONGR Camera Plate, 2 x 1/4"-20 Screw, 2 x 3/8"-16 Screw and 2 x Anti-Rotation Pin and 1 more items. Manufacturer model number MVH612AH.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Camera Plate | |
|---|---|
| Camera Plate Features | Quick Release |
| Camera Mounting Screw | x 1/4"-20 Male with Locating Pin3/8"-16 Bushing Included |
| Tripod Platform | |
| Base Mount | 3/8"-16 Female |
| Pan & Tilt | |
| Drag Control | Pan: Continuous Tilt: Continuous |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -70° |
| Panning Range | 360° |
| Physical | |
| Load Capacity | 3.99 to 11.97 kg at CoG 5.5 cm |
| Counter Balance | Continuous (3.99 to 11.97 kg) |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Accessory Mounting | 2 x 3/8"-16 Female Thread |
| Operating Temperature | -20 to 50°C |
| Weight | 2.3 kg |
Product details
| Head Type | Fluid |
|---|---|
| Base Type | Flat Base |
| Load Capacity | 12.0 kg |
| Material | Aluminium |
In the box
- Manfrotto Nitrotech 612 Fluid Video Head With Continuous CBS
- Pan Bar
- 504PLONGR Camera Plate
- 2 x 1/4"-20 Screw
- 2 x 3/8"-16 Screw
- 2 x Anti-Rotation Pin
- Spare Rosette
