Description
The Manfrotto 502AH is a fluid video head with a flat base for cameras and rigs that need controlled pan and tilt movement. It suits video shooters who want steady framing and simple setup on compatible tripods or supports.
It has a 7 kg load capacity and a spring-loaded counterbalance set for 4 kg camera weight. Pan and tilt drag are continuously adjustable from 0 to maximum, with a 360° pan range and -80° to +90° tilt range. The aluminium body is black, and the head includes a levelling bubble, pan lock and tilt lock.

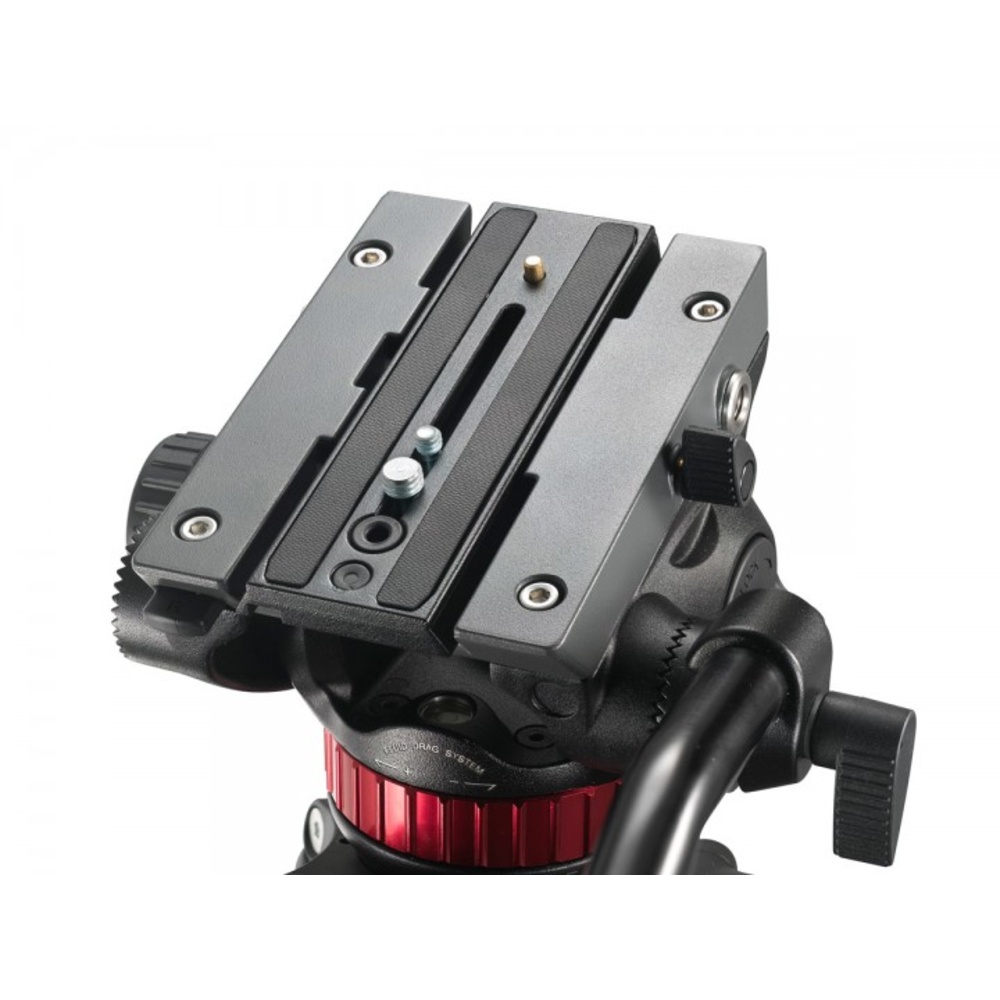

It mounts with a 3/8-16 thread and uses the 504PLONG quick release plate, which has a 1/4-20 screw and a 1/4-20 to 3/8-16 adapter. The box includes the head, pan bar and 504PLONG long quick release mounting plate. It works with video tripods and other supports that accept a flat-base head.
Specifications
| Load Capacity | Static: 7.0 kg Counterbalance supports 4 kg |
|---|---|
| Head to Tripod Mounting Thread | 3/8"-16 thread |
| Counter Balance System | Spring-loaded |
| Counter Balance Range | One fixed spring for 4 kg camera weight |
| Centre of Gravity | Not specified by manufacturer |
| Quick Release/Wedge Plate | 504PLONG plate with 1/4"-20 screw and 1/4"-20 to 3/8"-16 adapter |
| Balance Plate | 504PLONG plate slides 83.0 mm |
| Tilt Drag | Continuously adjustable from 0 to max level |
| Tilt Range | -80° to +90° tilt range front to back |
| Tilt Lock | Yes |
| Spring Loaded Counter Balance | Yes |
| Pan Drag | Continuously adjustable from 0 to max level |
| Pan Range | 360° |
| Pan Lock | Yes |
| Pan Bar | 1 included 2 possible positions |
| Levelling Bubble/Illuminated | Yes/ not specified by manufacturer |
| Material | Aluminium |
| Colour | Black |
| Temperature Range | -20 to 40 °C |
| Height | 13.0 cm |
| Weight | 1.6 kg |
Product details
| Load Capacity | 4.0 kg |
|---|---|
| Weight | 1.60 kg |
| Base Type | Flat Base |
In the box
- Manfrotto 502AH - Pro Video head with Flat Base
- Pan Bar
- 504PLONG Long Quick Release Mounting Plate
- 2 Year Limited Warranty + 3 Year Extension upon Online Registration
