Description
Hollyland Pyro 7 Video Transmission Monitoring Kit: a production monitor. Compatible with Hollyland Pyro 7.

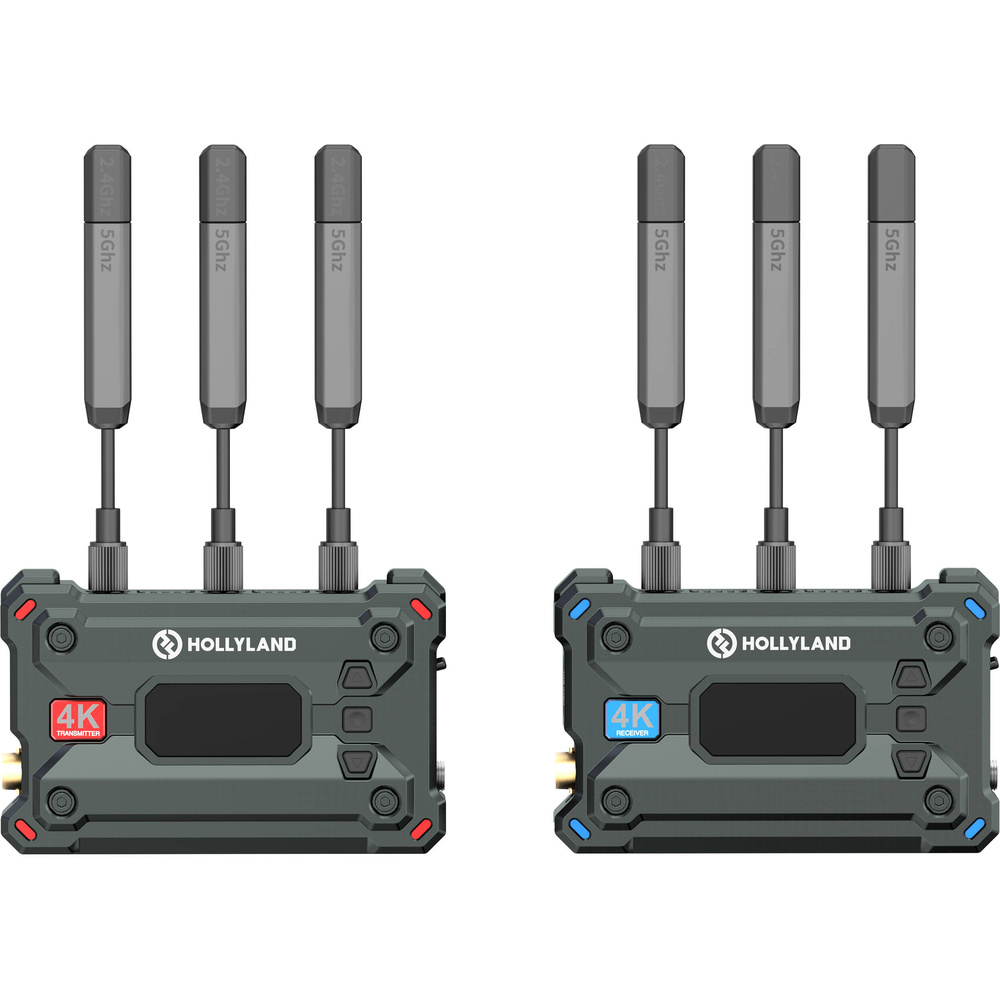

Highlights include pyro 7 Transceiver/Recording Monitor, pyro S 4K transmitter & receiver kit, Monitor hood, shoe mount, pyro 7 handle and SDI/HDMI I/O, 1300' Transmission.
Key specifications: mounting 1/4"-20 Female; frequency range US: 5.1 to 5.8 GHz US: 2.412 to 2.484 GHz; connection HDMI; battery type 2x L-Series (Interchangeable Mount); weight 1.2 lb / 545 g, Excluding Antenna.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: Hollyland pyro 7 wireless transceiver Monitor, Hollyland pyro S 4K HDMI/SDI wireless video transmission system, Hollyland shoulder strap for pyro 7, Hollyland Monitor hood for pyro 7, Hollyland side & bottom-mounted aluminium handle for pyro 7 / mars M1 enhanced and pyro hard-shell case and 1 more items. Manufacturer model number PYRO S and PYRO 7 Kit.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Key Specs | |
|---|---|
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1200 |
| Touchscreen | Yes |
| HDR Support | No |
| Video I/O | 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output 1x HDMI 1.4b Input 1x HDMI 1.4b Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC |
| Video Format | HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/30/29.97/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Phantom Power | No |
| Built-In Battery | No |
| Battery Type | 2x L-Series (Interchangeable Mount) |
| Power Consumption | 22 W (Maximum) |
| Mounting | 1x 1/4"-20 Female (Left) 1x 1/4"-20 Female (Right) 1x 1/4"-20 Female (Bottom) |
| Display | |
| Panel Type | LCD |
| Aspect Ratio | 16:9 |
| Maximum Brightness | 1200 nits / cd/m 2 |
| Contrast Ratio | 1000:1 |
| Pixels Per Inch (ppi) | 323 ppi |
| Response Time | 50 ms |
| Real-Time LUT Monitoring | SDR |
| Image Controls | Focus Peaking, Waveform |
| Inputs / Outputs | |
| Antenna I/O | 2x RP-SMA Male |
| Embedded Audio | HDMI/SDI: 8-Channel |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Power I/O | 1x Barrel Input |
| Other I/O | 1x USB-C (Firmware) Input |
| Encryption | No |
| Wireless Range | 1300' / 396.2 m (Line-of-Sight) 650' / 198.1 m |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | US: 5.1 to 5.8 GHz US: 2.412 to 2.484 GHz |
| Latency | 60 ms |
| RF Power | 23 dBm |
| RF Sensitivity | -80 dBm |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | Yes, Required: Android & iOS App Name: HollyView Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed |
| Format Support | |
| Audio Format | 4-Channel |
| Wireless Video Compression | Compressed |
| Timecode Support | Yes |
| Recording | |
| Pulldown Conversion | No |
| Camera Trigger | No |
| Pre-Roll Record | No |
| Closed Caption Support | No |
| Reference Input | No |
| Power | |
| Input Power | 10 to 18 VDC at 2.5 A |
| Environmental | |
| Environmental Protection | No |
| Certifications | No |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| General | |
| Internal Storage | No |
| Material of Construction | Aluminium, Magnesium |
| Dimensions | 7.1 x 5 x 1.3" / 180 x 127 x 31.8 mm (Excluding Antenna) |
| Weight | 1.2 lb / 545 g, Excluding Antenna |
| Key Specs | |
| Resolution | Not Specified by Manufacturer |
| Touchscreen | No |
| Video I/O | Transmitter: 1x HDMI 1.4b Input Transmitter: 1x BNC (3G-SDI) Input Receiver: 1x HDMI 1.4b Output Transmitter: 1x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI |
| Latency | 50 ms |
| Video Format | HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Power Consumption | Transmitter: 11 W Receiver: 8 W |
| Mounting | 1/4"-20 Female |
| Display | |
| Panel Type | Transmitter/Receiver: LCD |
| Aspect Ratio | Not Specified by Manufacturer |
| Inputs / Outputs | |
| Audio I/O | No |
| Power I/O | Transmitter/Receiver: 1x Barrel Input |
| Other I/O | Transmitter/Receiver: 1x USB-C |
| Wireless | |
| Wireless Range | 1300' / 396.2 m (Line-of-Sight) 650' / 198.1 m (Line-of-Sight) |
| Frequency Range | 5.15 to 5.25 GHz 5.25 to 5.35 GHz 5.47 to 5.725 GHz 5.725 to 5.85 GHz 2.412 to 2.484 GHz |
| RF Sensitivity | -85 dBm |
| Wi-Fi | Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz) |
| Mobile App Compatible | Yes: Android & iOS |
| Cellular Support | No |
| Format Support | |
| Video Signal Conversion | No |
| Wireless Video Compression | Uncompressed |
| Power | |
| Input Power | 6 to 16 VDC |
| General | |
| Material of Construction | Magnesium |
| Dimensions | Transmitter/Receiver: 4.4 x 2.8 x 1.3" / 112 x 71.2 x 34.1 mm |
| Weight | 7.3 oz / 207 g |
| Weight | Transmitter/Receiver: 7.3 oz / 207 g |
| Compatibility | Hollyland Pyro 7 |
| Physical | |
| Mounting | 2x Locking Clasps |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Mounting | 1x Clip-On |
| Colour | Black |
| Dimensions | 8.5 x 6.1 x 1.1" / 215 x 155 x 28 mm |
| General | |
| Compatibility | Hollyland Pyro 7 Monitor/Transceiver / Mars M1 Enhanced |
| Physical | |
| Mounting | 1x 1/4"-20 Thumbscrew |
| Material of Construction | Aluminium |
| Dimensions | 5.8 x 4 x 2.6" / 148 x 101 x 65 mm |
Product details
| Screen Size | 7" |
|---|---|
| Connection | HDMI |
| Screen Resolution | 1920 x 1200 |
In the box
- Hollyland Pyro 7 Wireless Transceiver Monitor
- Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System
- Hollyland Shoulder Strap for Pyro 7
- Hollyland Monitor Hood for Pyro 7
- Hollyland Side & Bottom-Mounted Aluminium Handle for Pyro 7 / Mars M1 Enhanced
- Pyro Hard-Shell Case
- Rotating Shoe Mount
