Description

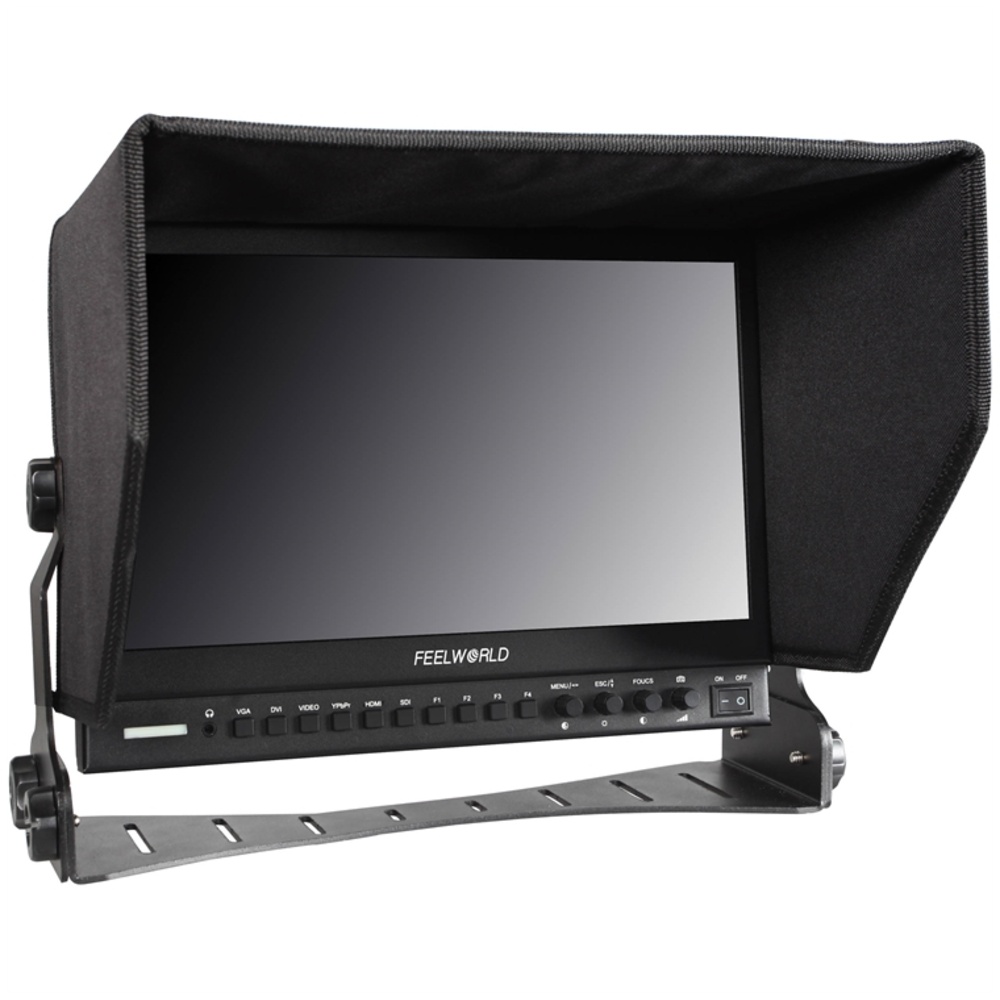

FeelWorld P133-9HSD 13.3" Broadcast IPS LCD Monitor: a production monitor.
Key specifications: Mounting-Hole pattern 75 x 75 mm; weight 1.64 kg 1.96 kg, Including Bracket; dimensions (W x H x D) 315.5 x 231 x 26.4 mm; panel type IPS-Type LCD; display size 33.8 cm.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: FeelWorld P133-9HSD 13.3" broadcast IPS LCD Monitor, Power supply, V-Mount Battery Plate, mini HDMI cable, tally kit and sunshade and 1 more items.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 33.8 cm |
| Screen Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 170° Vertical: 170° |
| Maximum Brightness | 400 cd/m2 |
| Contrast Ratio | 1000:1 |
| Dot Pitch | 0.1533 x 0.1533 mm |
| Bit Depth / Colour Support | 8-Bit (16.7 Million Colours) |
| Image Controls | Blue Only, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers |
| I/O | |

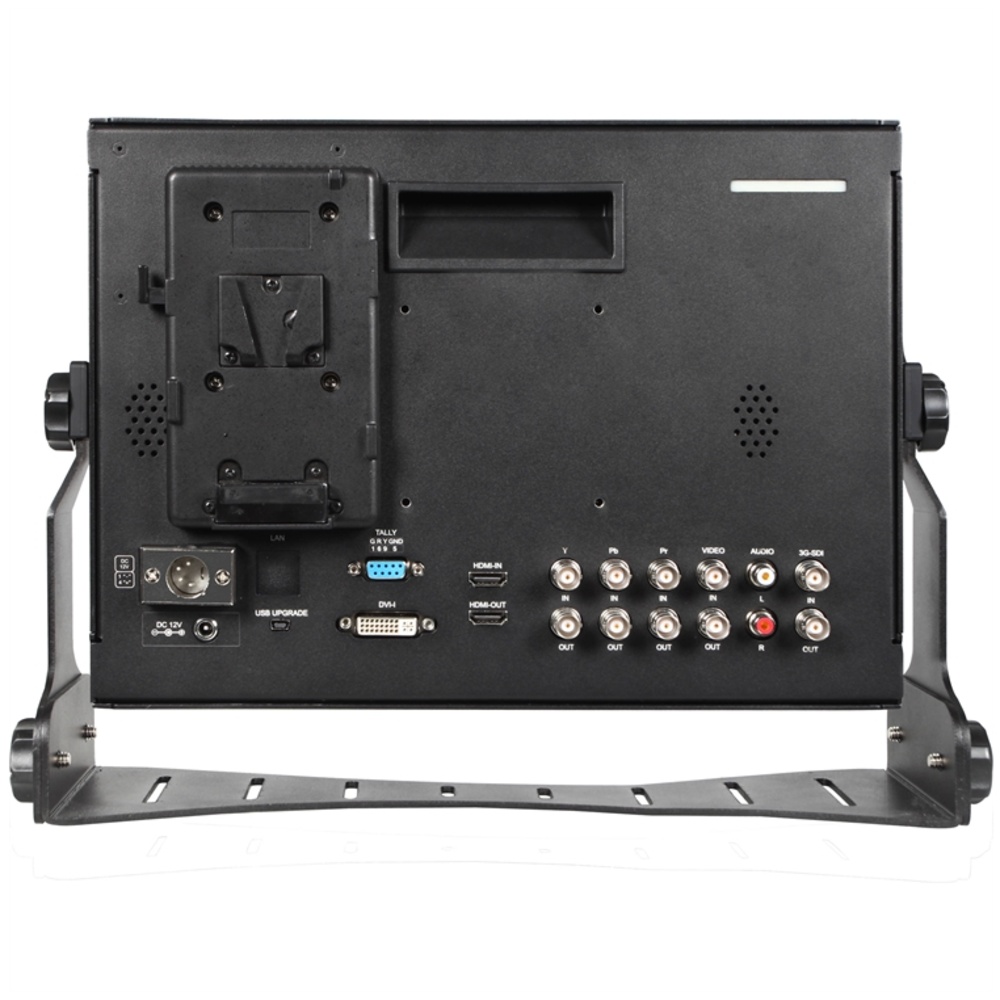

| Video | 1 x BNC (3G-SDI) Output 1 x HDMI Type A Output 1 x 3BNC (Component) Output 1 x BNC (Composite) Output 1 x BNC (3G-SDI) Input 1 x HDMI Type A Input 1 x 3BNC (Component) Input 1 x DVI-I Input 1 x BNC (Composite) Input |
| Audio | 1 x RCA Input 1 x 3.5 mm Headphone Output |
| Built-In Speaker | 2 |
| Card Slot | None |
| Format Support | |
| Video Format | HDMI DCI 4K: 23.98/24 UHD 4K: 23.98/24/25/29.97/30 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24 1080i: 50/59.94/60 720p: 29.97/30/50/59.94/60 576p PAL 480p NTSC SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24 1080i: 50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60 NTSC PAL |
| Power | |
| DC Input Power | 9 to 24 VDC |
| Battery Type | None |
| Power Consumption | 12 W (Maximum) |
| Mounting | |
| Mounting-Hole Pattern | 75 x 75 mm |
| Environmental | |
| Operating Temperature | -10 to 50°C |
| Storage Temperature | -20 to 60°C |
| General | |
| Dimensions (W x H x D) | 315.5 x 231 x 26.4 mm |
| Weight | 1.64 kg 1.96 kg, Including Bracket |
Product details
| Display Size | 13.3 inches |
|---|
In the box
- FeelWorld P133-9HSD 13.3" Broadcast IPS LCD Monitor
- Power Supply
- V-Mount Battery Plate
- Mini HDMI Cable
- Tally Kit
- Sunshade
- U-Bracket
