Description

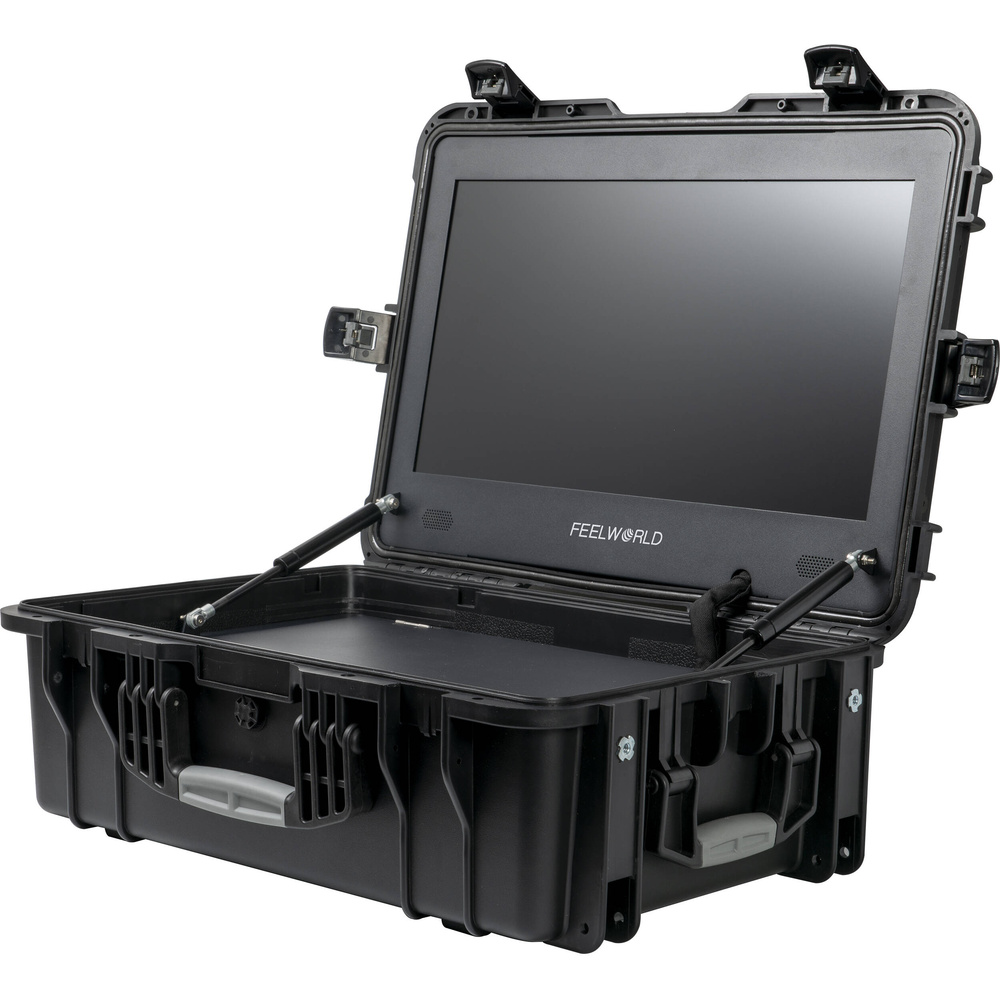

The FeelWorld WPC215 21.5" 4K Broadcast Carry-On Director Monitor is a production monitor.
Highlights include IPS LED display in portable carry case, 4K input via HDMI, 1080p input via SDI, 1000:1 contrast, 1000 cd/m² brightness, 1920 x 1080 Resolution and 2 x HDMI & 1 x 3G-SDI Outputs.
Key specifications: battery type 1 x V-Mount; weight 14.8 kg; dimensions 372 x 262 x 28.4 mm, Excluding; screen size 21.5"; resolution 1920 x 1080.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: FeelWorld 21.5" 4K broadcast carry-on director Monitor, 1× Power Adapter, 1× V-Mount Battery Plate (Default to mount on device), 1× Mini HDMI Cable, 1× SDI Cable and 1× User Manual.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Panel Type | IPS-Type LCD |
| Display Size | 21.5" / 54.6 cm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° (89/89) Vertical: 178° (89/89) |
| Touchscreen | No |
| Maximum Brightness | 1000 nits / cd/m 2 |
| Contrast Ratio | 1000:1 |
| Dot Pitch | 0.02479 x 0.02479 mm |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 102 ppi |
| Response Time | 25 ms |
| Image Controls | Anamorphic De-Squeeze, Blue Only, Cheque Field, False Colour, Focus Assist, Focus Peaking, Green Only, Image Rotate, Red Only, Screen Markers, Screen Split - Half, Screen Split - Quarter |
| Inputs / Outputs | |
| Video I/O | 2 x HDMI Input 1 x BNC (3G-SDI) Input 2 x HDMI Output 1 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power I/O | 1 x Barrel (12 VDC) Input |
| Other I/O | 1 x USB-A 2.0 Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Bluetooth | None |
| Mobile App Compatible | No *As of April, 2023: Cheque with manufacturer for the most up-to-date compatibility |
| Format Support | |
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 576i 480p 480i SDI (8-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 |
| Gamma Curve | Rec709 |
| Power | |
| DC Input Power | 12 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 32 W |
| Environmental | |
| Environmental Protection | Advertised as Dust Resistant/Moisture Resistant/Outdoor Use/Water Resistant/Weather Resistant with Included Housing *Manufacturer Testing: IP67 |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| General | |
| Material of Construction | Polycarbonate |
| Dimensions | 372 x 262 x 28.4 mm, Excluding |
| Weight | 14.8 kg |
Product details
| Screen Size | 21.5" |
|---|---|
| Screen Resolution | 1920 x 1080 |
| Display Size | 21.5 inches |
In the box
- FeelWorld 21.5" 4K Broadcast Carry-On Director Monitor
- 1× Power Adapter
- 1× V-Mount Battery Plate (Default to mount on device)
- 1× Mini HDMI Cable
- 1× SDI Cable
- 1× User Manual
