Description

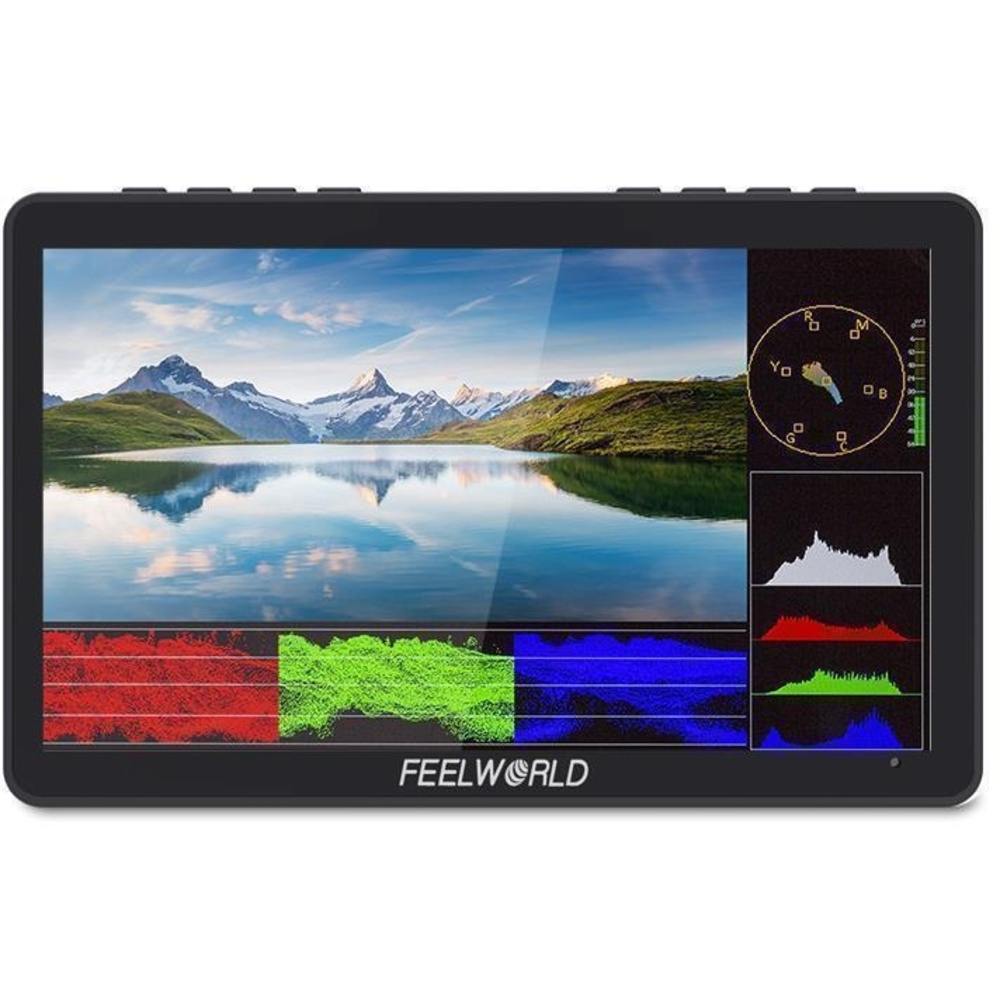

FeelWorld F5 Pro V4 6" 4K HDMI On-Camera Monitor: a production monitor.
Highlights include high resolution, supports 3D LUT log to Rec.709, user 3D LUT upload and provides auxiliary power out.
Key specifications: brightness 450cd/m²; screen size 6" IPS Touch Screen; resolution 1920x1080 pixels; pixel pitch 0.069 (H) x 0.069 (V) mm; aspect ratio 16:9.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Display | |
|---|---|
| Model | F5 Pro V4 |
| Screen Size | 6" IPS Touch Screen |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069 (H) x 0.069 (V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 450cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| Input | |
| 1 X HDMI | HDMI |
| 1 X Type-C | 5V Type-C (Note: please use 5V/2A or more than 2A Type-C power supply) |
| Output | |
| 1 X DC Output | DC Output |
| Audio | |
| Audio | Stereo Headphone |
| HDMI Input/ Output Support Format | 480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
| General | |
| Input Voltage | DC7～24V |
| Power Consumption | ≤8W |
| Power Connector | DC |
| Working Temperature | -20°C~50°C |
| Storage Temperature | -30°C~60°C |
| Install Way | ¼-20 thread points |
| Unit Size | 148 x 93 x 20mm |
| Unit Weight | 245g |
Product details
| Screen Size | 6" |
|---|---|
| Screen Resolution | 1920 x 1080 |
| Display Size | 6.0 inches |
In the box
- 1× Micro HDMI Cable 1× Sunshade 1× Tilt Arm 1× Disassemble Wrench 1× Manual <h4 class="me-2 d-inline align-middle"
