Description

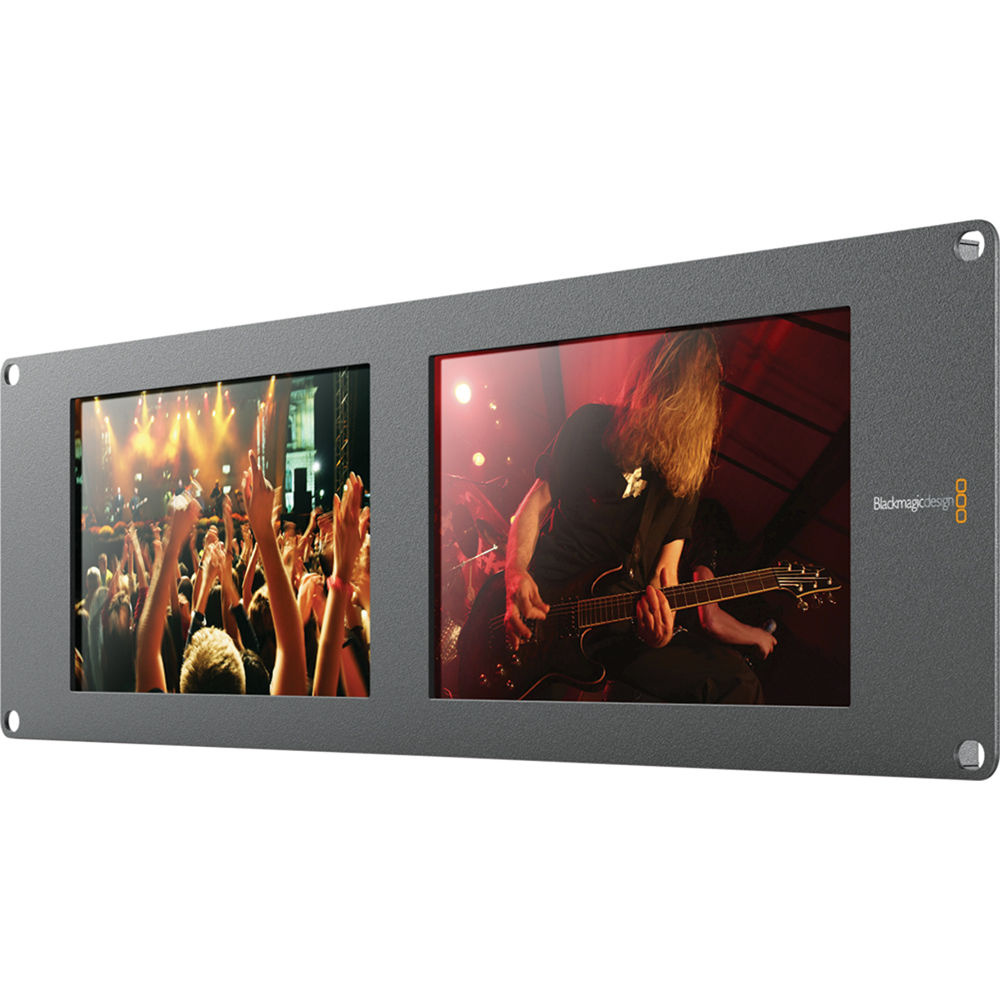

Blackmagic Design SmartView Duo Rackmountable Dual 8" LCD Monitors: a production monitor.
Highlights include 3G/HD/SD-SDI inputs, both with loop-out, integrated tally for live broadcast, ethernet input for adjustments, upgradeable firmware via USB and 2K, 1080i/p, 720p & 50/60 hz SD support.
Key specifications: brightness Not specified by manufacturer; screen size 2x 8" diagonal; resolution 800 x 480; video sampling 4:2:2 and 4:4:4; monitor type TFT active-matrix LCD.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. In the box: Blackmagic Design SmartView duo rackmountable dual 8" LCD monitors, 12V Universal Power Supply with International Socket Adapters for All Countries and 1 Year Limited Warranty.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Signal System | Digital signal support for both 50 Hz (PAL) and 60 Hz (NTSC) regions |
|---|---|
| SDI Input | Switchable (auto-selects) between SD, HD and 3 Gb/s SDI. Reclocked loop-through output |
| Multi-Rate Support | Auto detection of 2K, HD or standard definition inputs |
| SDI Format Support | 525i59.94, 625i50, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60, 2048x1080p/23.98, 2048x1080p/24, 2048x1080p/25, 2048x1080PsF/23.98, 2048x1080PsF/24, 2048x1080PsF/25, 2048x1556PsF/23.98, 2048x1556PsF/24, 2048x1556PsF/25 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, and SMPTE 425M |
| Colour Space | REC 601, REC 709 |
| Video Sampling | 4:2:2 and 4:4:4 |
| Colour Precision | 10-bit |
| Monitor Type | TFT active-matrix LCD |
| Screen Size | 2x 8" diagonal |
| Resolution | 800 x 480 |
| Display Colours | 16.7 million colours |
| Viewing Angle | Not specified by manufacturer (displays can rotate upside down for optimal viewing angle) |
| Brightness | Not specified by manufacturer |
| Contrast Ratio | Typically 500:1 |
| Response Time | < 15 ms |

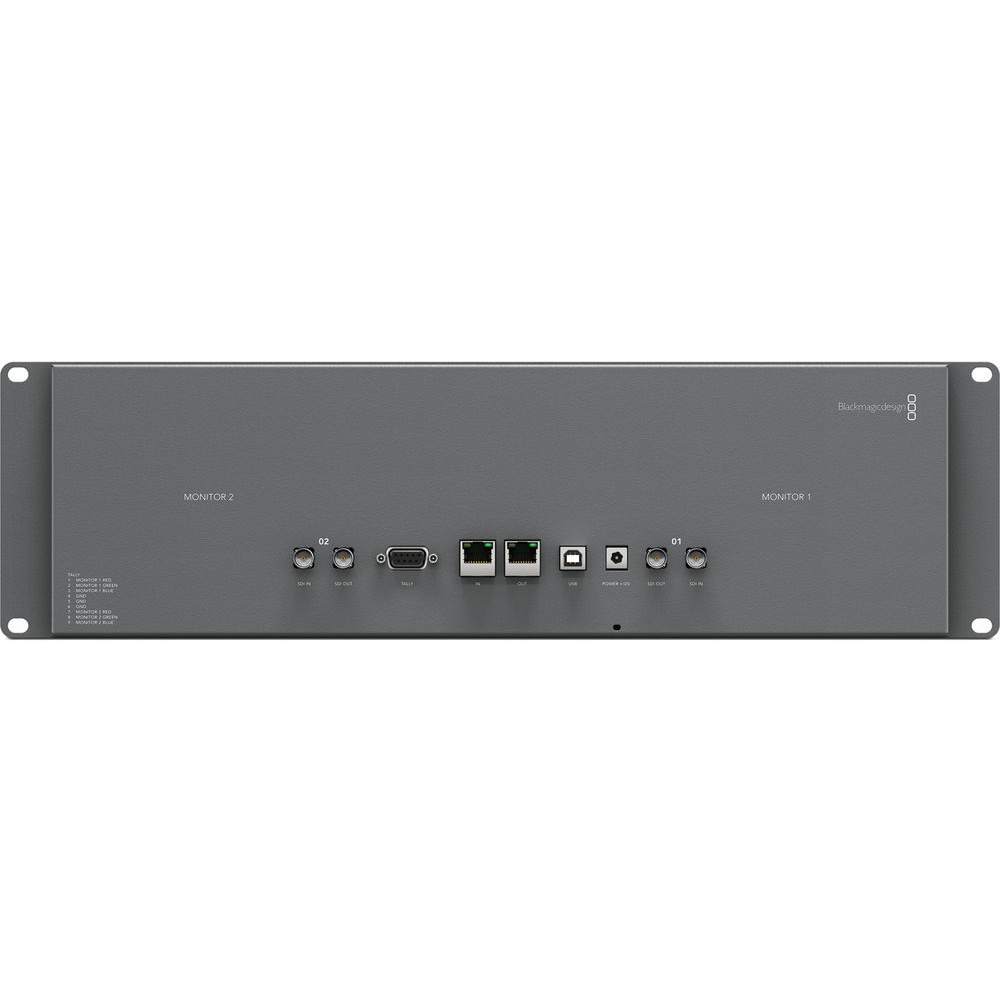

| Inputs | 2x SD/HD/3G-SDI (switchable, with auto-detection of HD/SD/2K sources) 1x USB 2.0 (480 Mb/s for updates and configuration) 1x 9-pin D-type (standard parallel connector for tally) 1x 10/100 BaseT Ethernet (for configuration) |
| Outputs | 2x SD/HD/3G-SDI (loop-out) 1x 10/100 BaseT Ethernet (loop-out) |
| Platform | Mac OS X and Windows software control |
| Remote Control | No |
| Operating Temperature | Not specified by manufacturer |
| Power Requirements | 12-15V |
| Power Consumption | < 20 |
| Rack Space Height | 3 RU |
| Dimensions (WxHxD) | 48.3 x 13.3 x 2.5 cm SmartView Duo is actually less than 2.5 cm deep. |
| Weight | Not specified by manufacturer |
In the box
- Blackmagic Design SmartView Duo Rackmountable Dual 8" LCD Monitors
- 12V Universal Power Supply with International Socket Adapters for All Countries
- 1 Year Limited Warranty
