Description
DZOFilm X-Tract 18-28mm T8 FF Detachable Probe Zoom with Case (0 & 360, ARRI PL, Metric): a digital cine lens.
Highlights include full frame | T8 maximum aperture, detachable 0 and 360° probe Zoom, 0.8 MOD FIZ gears, 300° focus rotation, 2.1:1 image magnification and versatile 73 to 100° angle of view.
Key specifications: lens mount ARRI PL; maximum aperture T8; Aperture/Iris blades 10; length 16.3" / 41.5 cm 16.6" / 42.1 cm; weight 2.4 lb / 1.09 kg 2.91 lb / 1.32 kg.
In the box: 0° Tube, 360° Tube, 15mm Follow Focus Rod with Brackets, front cap, rear cap and large O-Ring quick release clamp (1.8") and 5 more items. Manufacturer model number DZO-X1828ACS.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Maximum Aperture | T8 |
|---|---|
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Interchangeable Mount | No |
| Lens Format Coverage | Full-Frame |
| Image Circle | 43.2 mm |
| Angle of View | Full Frame Horizontal: 100 to 73° |
| Focus Scales | Metric |
| Optical Design | 25 Elements in 18 Groups 26 Elements in 19 Groups |
| Filter Thread | No |
| Zoom Ratio | 1.56x |
| Minimum Focus Distance | From Front of Lens: 0.2" / 6 mm |
| Magnification | 2.1:1 Macro Reproduction Ratio 0.47x Magnification |
| Aperture/Iris Blades | 10 |
| Image Stabilisation | No |
| Lens Mounting | 1x 1/4"-20 (via Included Support Foot) 3x 3/8"-16 (via Included Support Foot) |
| Gear Standard | Focus, Iris, Zoom: 0.8 MOD |
| Gear Rotation | Focus: 300° Iris: 72° Zoom: 100° |
| Electronic Communication | No |
| Built-In Light | No |
| Probe Offset | No |
| Diameter | Front: 1.2" / 30 mm |
| Length | 16.3" / 41.5 cm 16.6" / 42.1 cm |
| Weight | 2.4 lb / 1.09 kg 2.91 lb / 1.32 kg |
Product details
| Lens Type | Probe |
|---|---|
| Zoom or Prime Lens | Zoom |

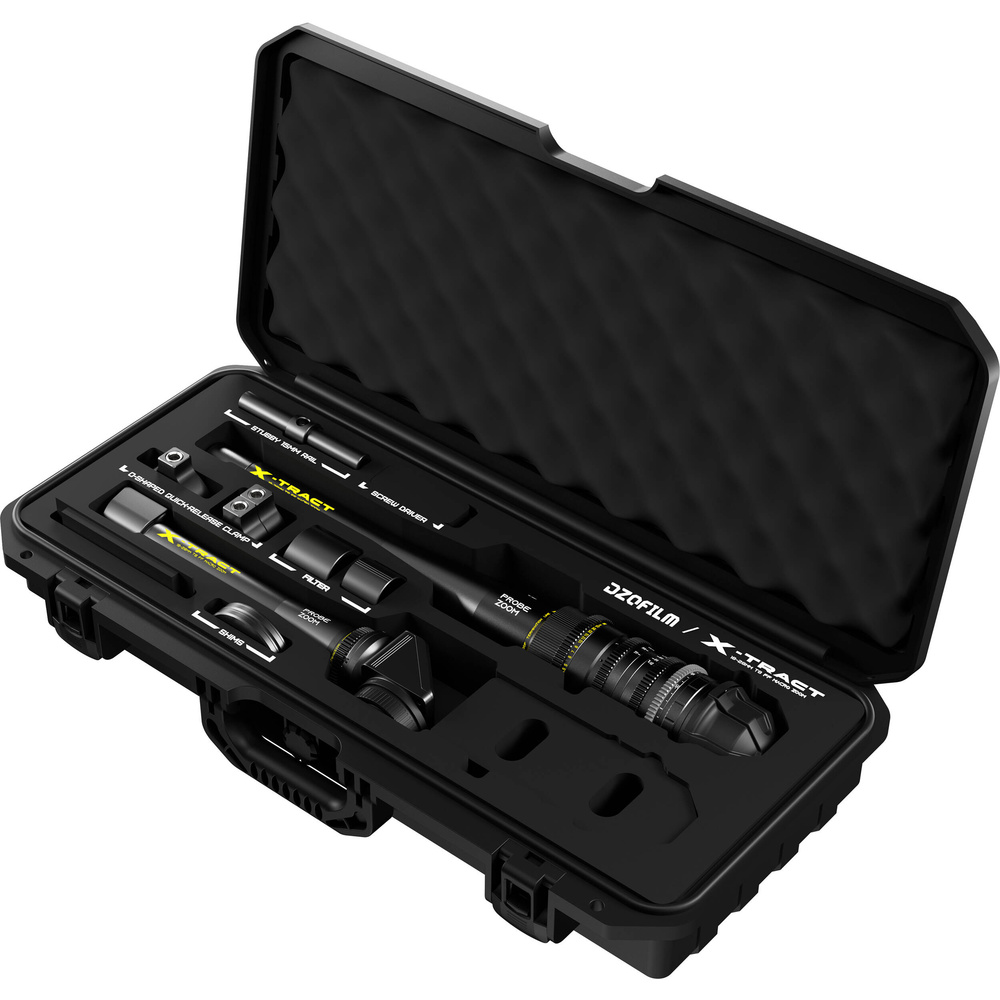

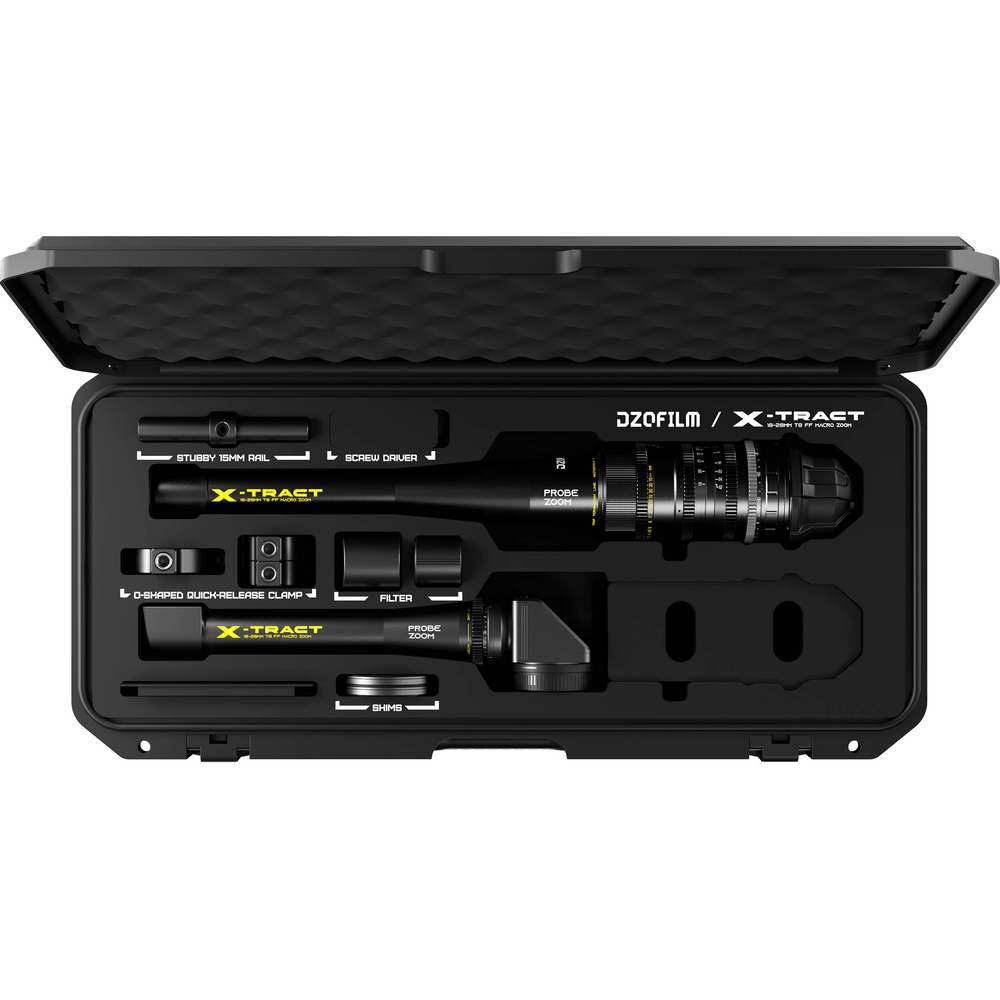

In the box
- 0° Tube
- 360° Tube
- 15mm Follow Focus Rod with Brackets
- Front Cap
- Rear Cap
- Large O-Ring Quick Release Clamp (1.8")
- 2 x Small O-Ring Quick Release Clamp (1.2")
- 2 x Shim Set
- UV Filter (#1)
- UV Filter (#2)

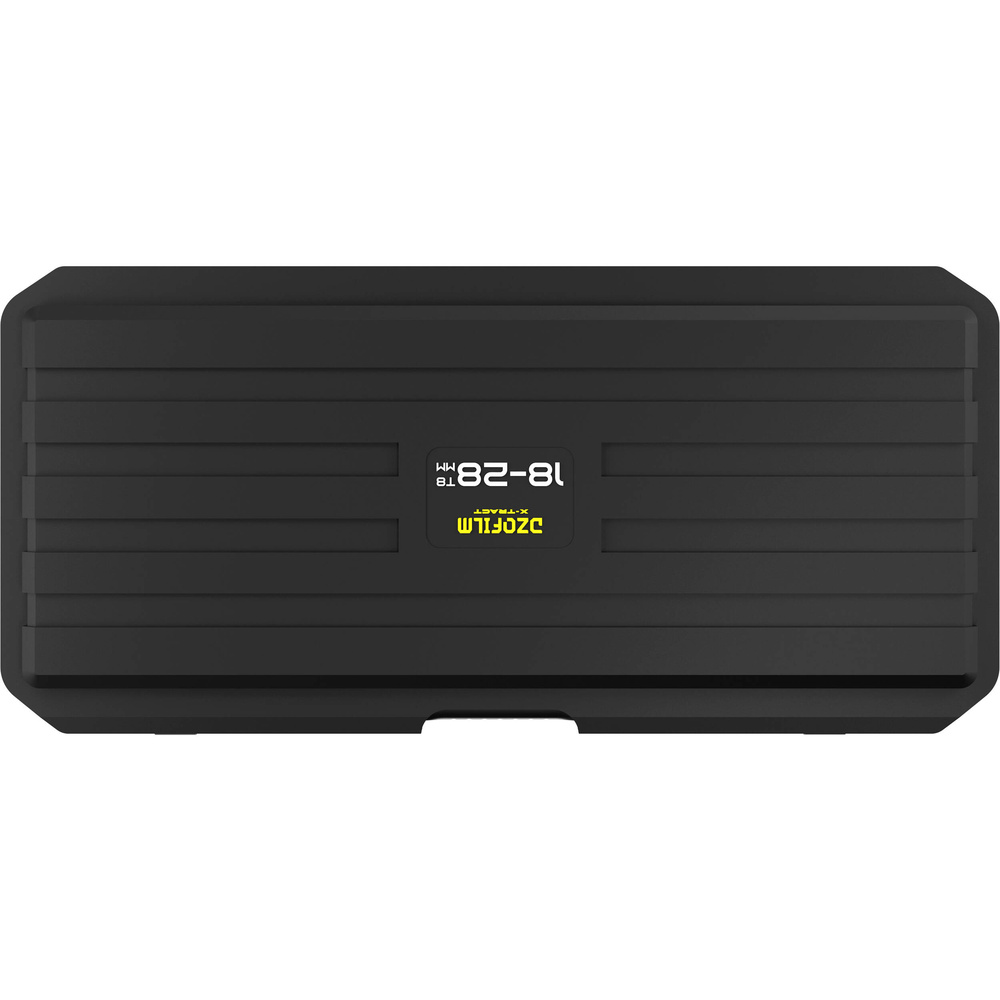

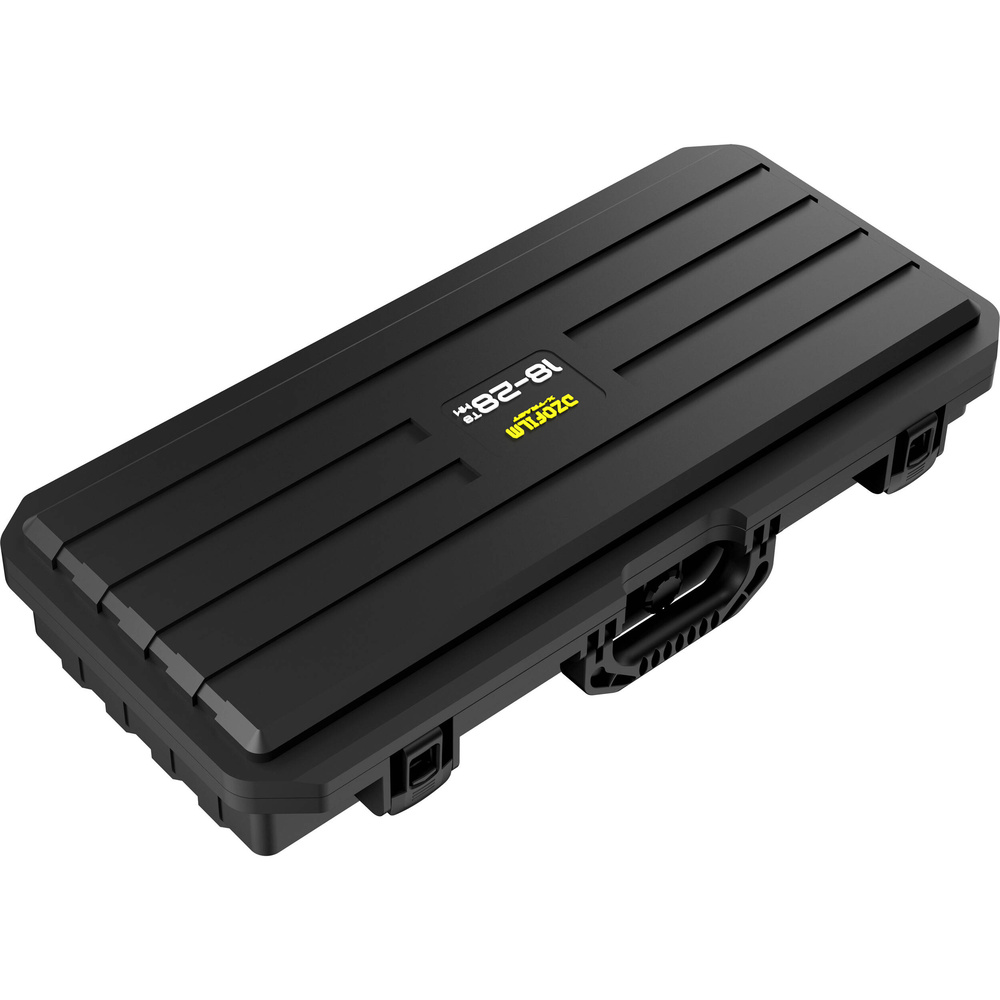

- Hard Case with Foam Inlay
