Description

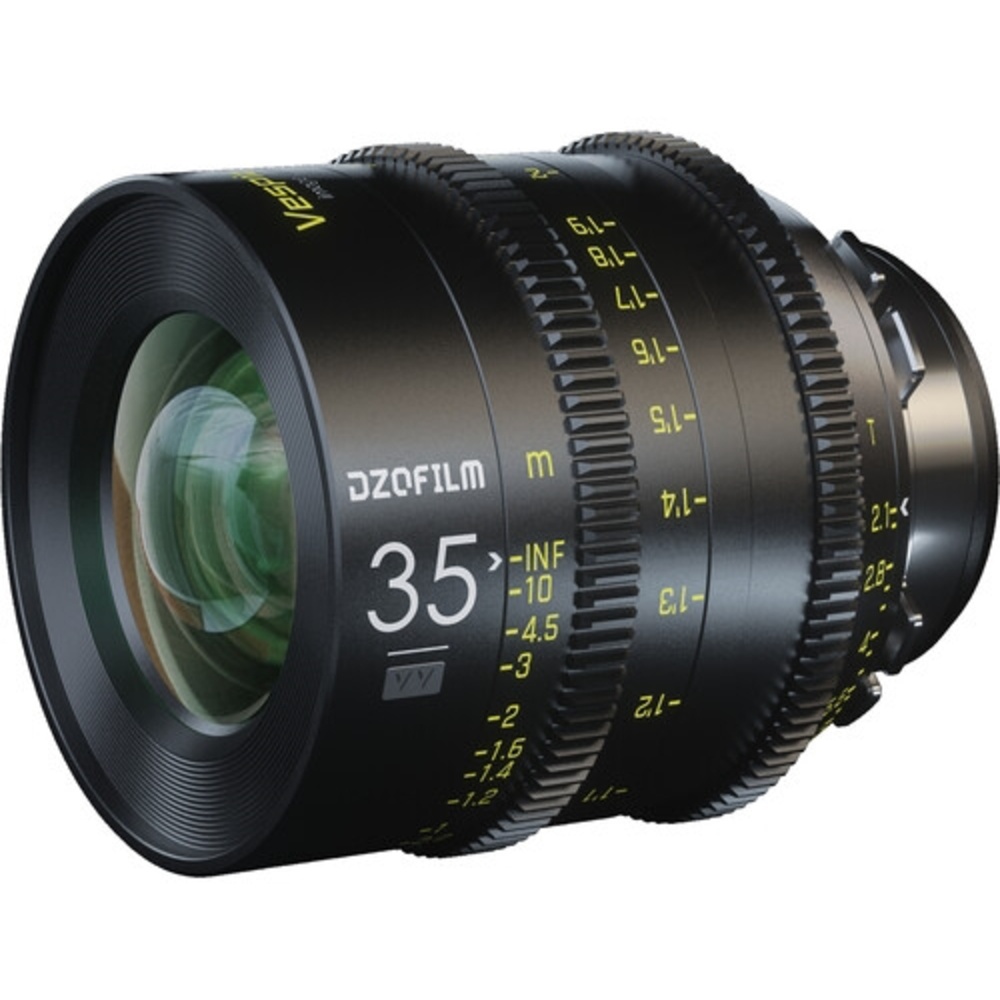

The DZOFilm VESPID 35mm T2.1 PL Lens is a fully manual cine lens for full-frame cameras. It suits shooters who want a 35mm field of view with cinema-style focus and iris control for narrative work, interviews, and controlled production setups.
It offers a T2.1 to T22 aperture range, 16 iris blades, 270° focus rotation, and 63° iris rotation. The lens uses 0.8 MOD gearing with a 32 pitch for focus and iris, has an 80 mm front diameter, a 77 mm filter thread, and a 46.5 mm image circle. Minimum focus distance is 0.3 m, and the lens weighs 834 g.
It mounts to ARRI PL cameras and is designed for full-frame coverage. In practice, it works with cinema rigs that use geared follow focus and matte boxes, and the 80 mm front size helps with standard cine accessories. The box includes the lens, front lens cap, rear lens cap, and an EF mount tool kit.
Specifications
| Focal Length | 35mm |
|---|---|
| Lens Mount | ARRI PL |
| Format | Full Frame |
| Image Circle | 46.5 mm |
| Maximum T-Stop | T2.1 |
| Minimum T-Stop | T22 |
| Minimum Focus Distance | From Image Plane: 1.0' / 0.3 m |
| Iris Blades | 16 |
| Gear MOD & Pitch | |
| Focus | 0.8 MOD / 32 Pitch |
| Iris | 0.8 MOD / 32 Pitch |
| Front Diameter | 80 mm |
| Filter Thread | 77 mm |
| Focus Scales | Imperial |
| Focus Rotation | 270° |
| Iris Rotation | 63° |
| Electronic Communication | No |
| Length | 87 mm |
| Weight | 834 g |
Product details
| Zoom or Prime Lens | Prime |
|---|---|
| Maximum Aperture | T2.1 |
| Lens Type | Wide |
In the box
- DZOFilm VESPID 35mm T2.1 PL Lens (PL Mount)
- Front Lens Cap
- Rear Lens Cap

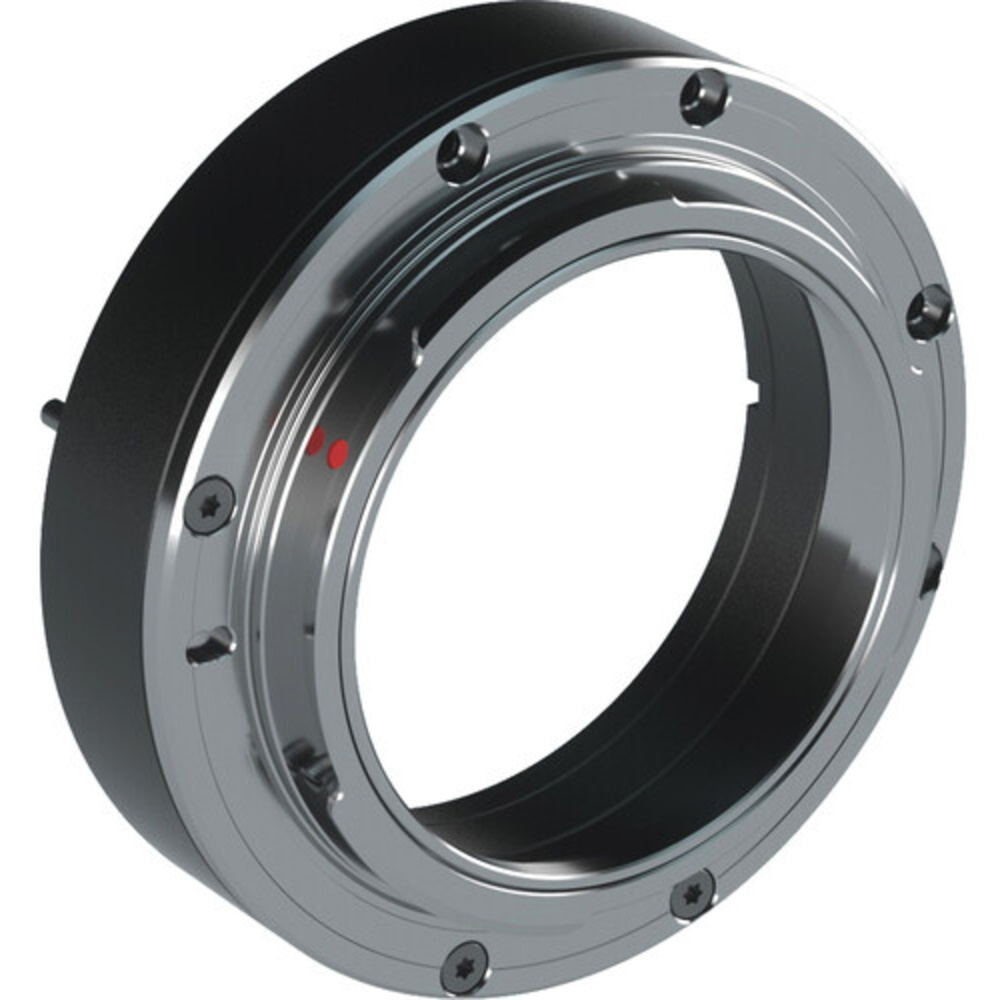

- EF Mount Tool Kit
