Description

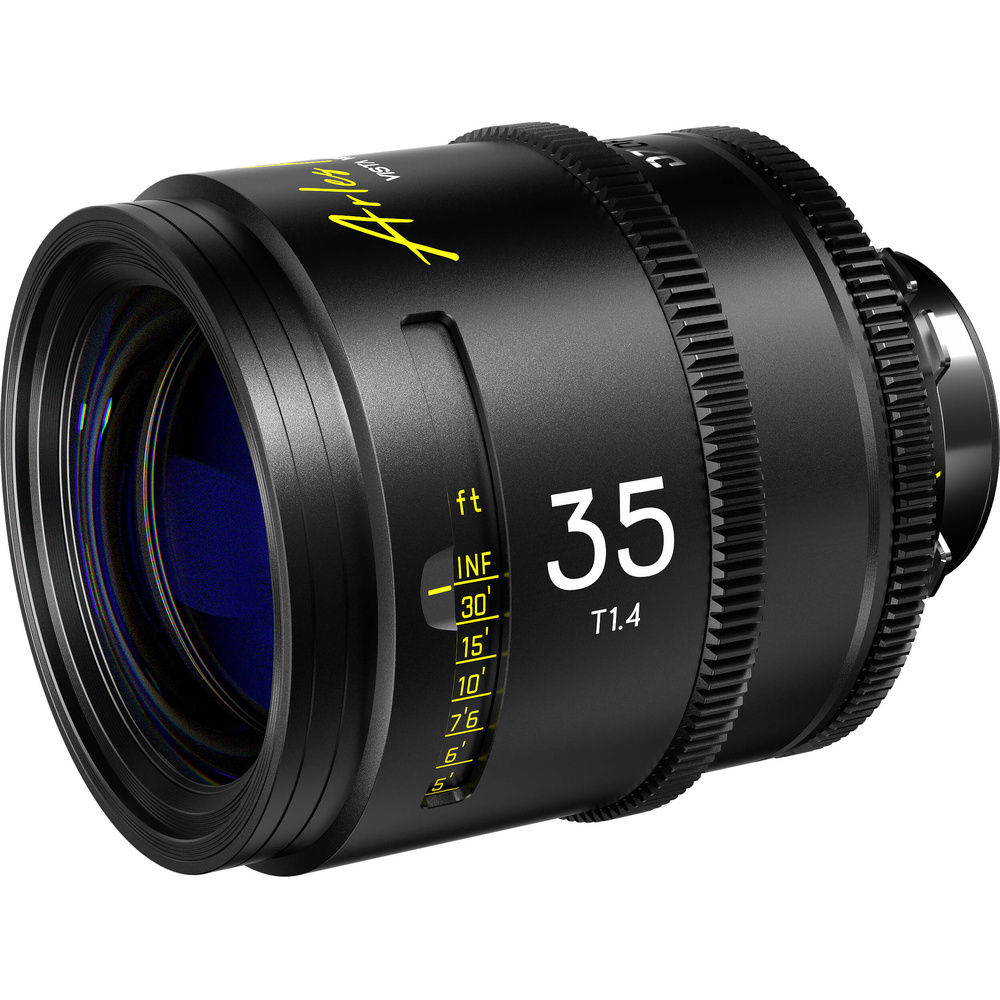

The DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL, Feet) is a digital cine lens.
Highlights include covers full frame sensors, T1.4 to T22 aperture range, 16-Blade Iris, 95mm outside diameter and 14 elements in 12 groups.
Key specifications: lens mount ARRI PL; maximum aperture T1.4; length 4.8" / 121 mm; weight 3.6 lb / 1650 g; minimum aperture T22.
In the box: DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL, Feet), front cap, PL Rear Cap, shim set, support base and support rod. Manufacturer model number DZO-SAP35IPL.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Maximum Aperture | T1.4 |
|---|---|
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Lens Format Coverage | Full Frame |
| Image Circle | 46.5 mm |
| Angle of View | Full Frame Horizontal: 61.1° Vertical: 34.23° Diagonal: 67.15° |
| Focus Scales | Imperial |
| Optical Design | 14 Elements in 12 Groups |
| Filter Thread | 86 mm |
| Minimum Focus Distance | From Camera Sensor: 13.78" / 0.35 m |
| Diaphragm Blades | 16 |
| Image Stabilisation | No |
| Gear Standard | Focus: 0.8 MOD Iris: 0.8 MOD |
| Gear Rotation | Focus 270° (Manual Only) Iris 80° (Manual Only) |
| Coatings | Multi-Coating |
| Environmental Protection | No |
| Diameter | 3.7" / 95 mm |
| Length | 4.8" / 121 mm |
| Weight | 3.6 lb / 1650 g |
Product details
| Zoom or Prime Lens | Prime |
|---|
In the box
- DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL, Feet)
- Front Cap
- PL Rear Cap
- Shim Set
- Support Base
- Support Rod
