Description
The Deity TC-1 Wireless Timecode Generator Box 3-Pack Kit is a three-unit timecode set for multi-camera shoots and audio recorders that need matching SMPTE timecode. It suits filmmakers, camera crews and sound recordists who want to keep devices in sync during production and simplify matching footage in post.

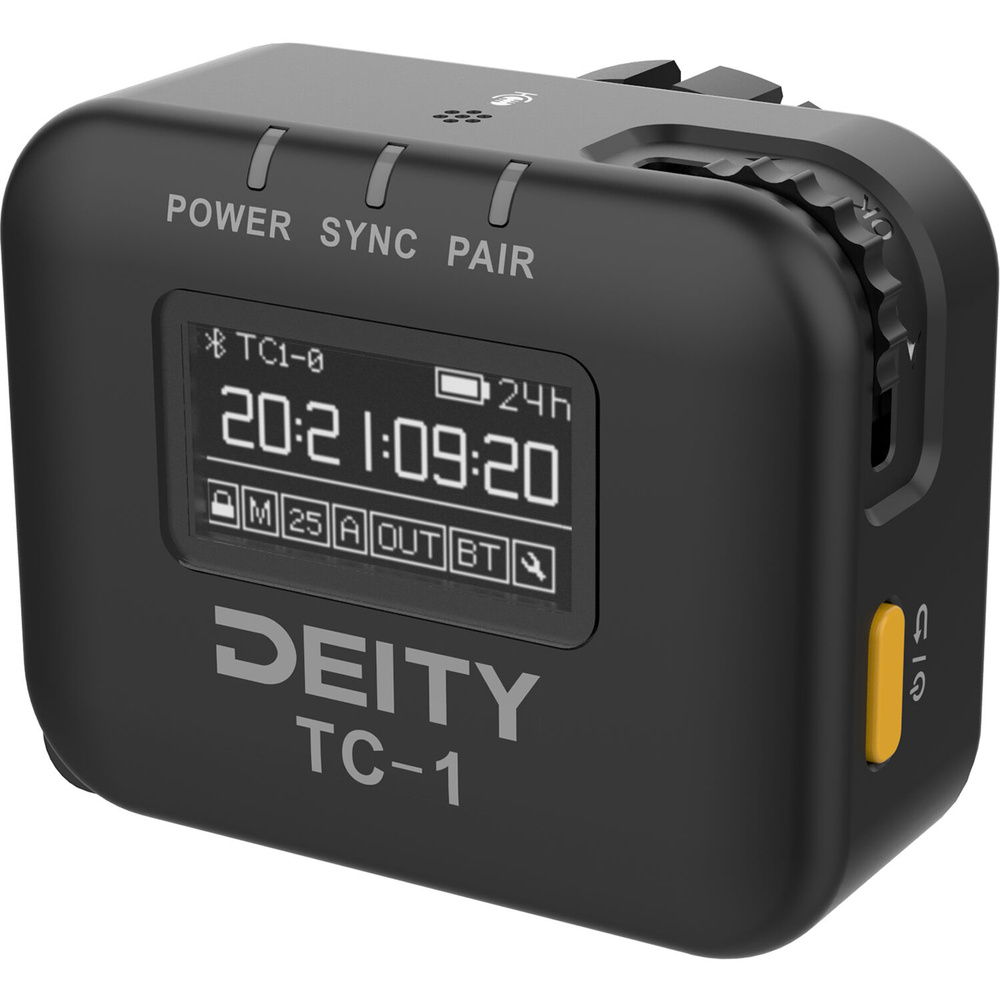

Each TC-1 has a 1-inch OLED display, Bluetooth 5.0 control from a phone, 2.4 GHz control from other TC-1 units, and a locking 3.5mm timecode port. It generates and jams all SMPTE timecode formats, with drift under 1 frame per 72 hours. The LiPo battery is rated for up to 28 hours and recharges in about 2 hours.
In use, the three boxes can sit on cameras, recorders or other production gear using the supplied cold shoe mounts or hook-and-loop fasteners. The box includes three TC-1 units, three cold shoe mounts, a locking 3.5mm TRS to TRS coiled cable, a locking 3.5mm TRS to BNC cable, a locking 3.5mm TRS to right-angle 5-pin LEMO cable and a USB Type-A to triple USB-C charging cable.
Specifications
| Display | |
|---|---|
| Panel Type | OLED |
| Size | 1" |
| Touchscreen | No |
| Inputs / Outputs | |
| USB | 1 x USB Type-C Female Input |
| Wireless | |
| Bluetooth | 5.0 |
| Battery | |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Battery Capacity | 950 mAh |
| Recharge Time | 2 Hours |
| Maximum Battery Life | 28 Hours |
| Environmental | |
| Operating Temperature | -20 to 45°C |
| Physical | |
| Mounting | 1 x Shoe Mount 1 x Hook-and-Loop |
| Colour | Black |
| Dimensions | 53.4 x 40 x 21.8 mm |
| Weight | 41 g |
Product details
| Battery | Lithium-Ion |
|---|
In the box
- Deity Microphones TC-1 Wireless Timecode Generator Box 3-Pack Kit (Bluetooth, 2.4 GHz)
- 3 x Cold Shoe Mount for DSLR
- Locking 3.5mm TRS to TRS Coiled Cable
- Locking 3.5mm TRS to BNC Cable
- Locking 3.5mm TRS to Right-Angle 5-Pin LEMO Cable
- USB Type-A to Triple USB Type-C Charging Cable
- 3 x Hook-and-Loop Fastener
