Description

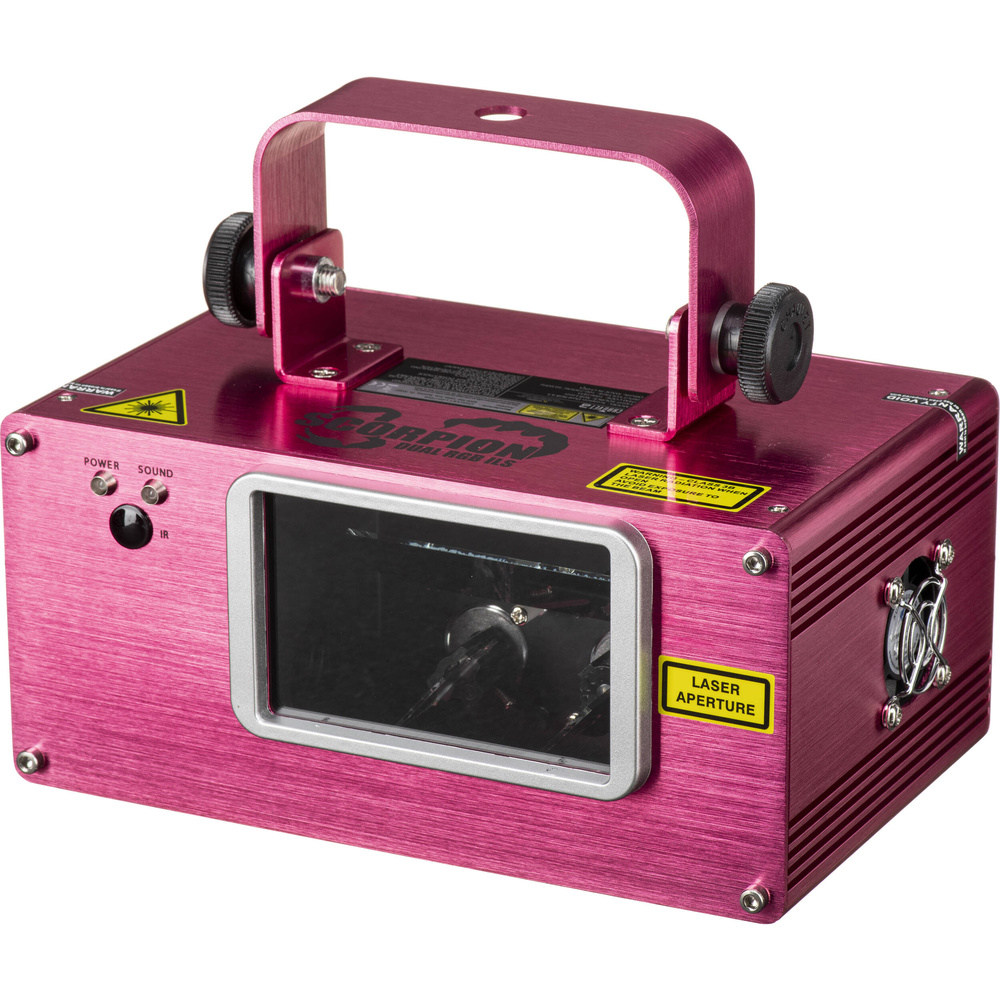

The Chauvet DJ Scorpion Dual RGB ILS FAT BEAM Aerial Effect Laser sits in our Stage & DJ Lighting range.
Highlights include integrated lighting system (ILS), red, green, and Blue laser diodes, dual mirror output, scan and speed adjustment and 32 built-in patterns + laser sky effect.
Key specifications: mounting Mounting Bracket; weight 3.8 lb / 1.7 kg; dimensions 8.5 x 6.3 x 7" / 21.6 x 16.1 x 18 cm; Inputs/Outputs 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output; fixture type Special Design.
In the box: CHAUVET DJ Scorpion Dual RGB ILS FAT BEAM Aerial Effect Laser and Power cord.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Light | |
|---|---|
| Fixture Type | Special Design |
| Light Source | 3 x Laser Diode |
| Colours | Red, Green, Blue |
| Laser | Red: 638 nm / 30 mW Green: 520 nm / 20 mW Blue: 450 nm / 50 mW |
| Coverage Angle | 36° |
| Zoom Adjustment | 1 to 29° |
| Dimming | None |
| Performance | |
| Operating Modes | Automatic, Primary/Secondary, Sound-Active |
| Macros / Programmes | Laser Pattern |
| Effects | Shapes |
| Strobe Rate | 0 to 27 Hz |
| Gobos | None |
| Movement | |
| Tilt Ranges | 30° |
| Pan Ranges | 30° |
| Control | |
| Control Protocols | DMX512 |
| DMX Channel Modes | 1 Mode(s): 10-Channel |
| Display / Controls | LED / 4-Button |
| Remote Control | IR Remote (with Optional Equipment) |
| Connectivity | |
| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| Power | |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x IEC Output: 1 x Edison Plug Type: NEMA 5-15 |
| Fuse | T 3.15 A 250 V |
| Power / Current Consumption | 120 VAC, 60 Hz: 20 W / 0.3 A 230 VAC, 50 Hz: 19 W / 0.2 A |
| Power Linking | 27 Units at 120 VAC 48 Units at 230 VAC |
| Environmental | |
| IP Rating | None |
| Environmental Protection | None |
| Operating Temperature | 59 to 95°F / 15 to 35°C |
| Physical | |
| Mounting | Mounting Bracket |
| Included Accessories | 1 x Power Cable |
| Exterior Colour | Pink |
| Cooling | Fan |
| Certifications | COE, RoHS *as per Manufacturer |
| Dimensions | 8.5 x 6.3 x 7" / 21.6 x 16.1 x 18 cm |
| Weight | 3.8 lb / 1.7 kg |
In the box
- CHAUVET DJ Scorpion Dual RGB ILS FAT BEAM Aerial Effect Laser
- Power Cord
