Description

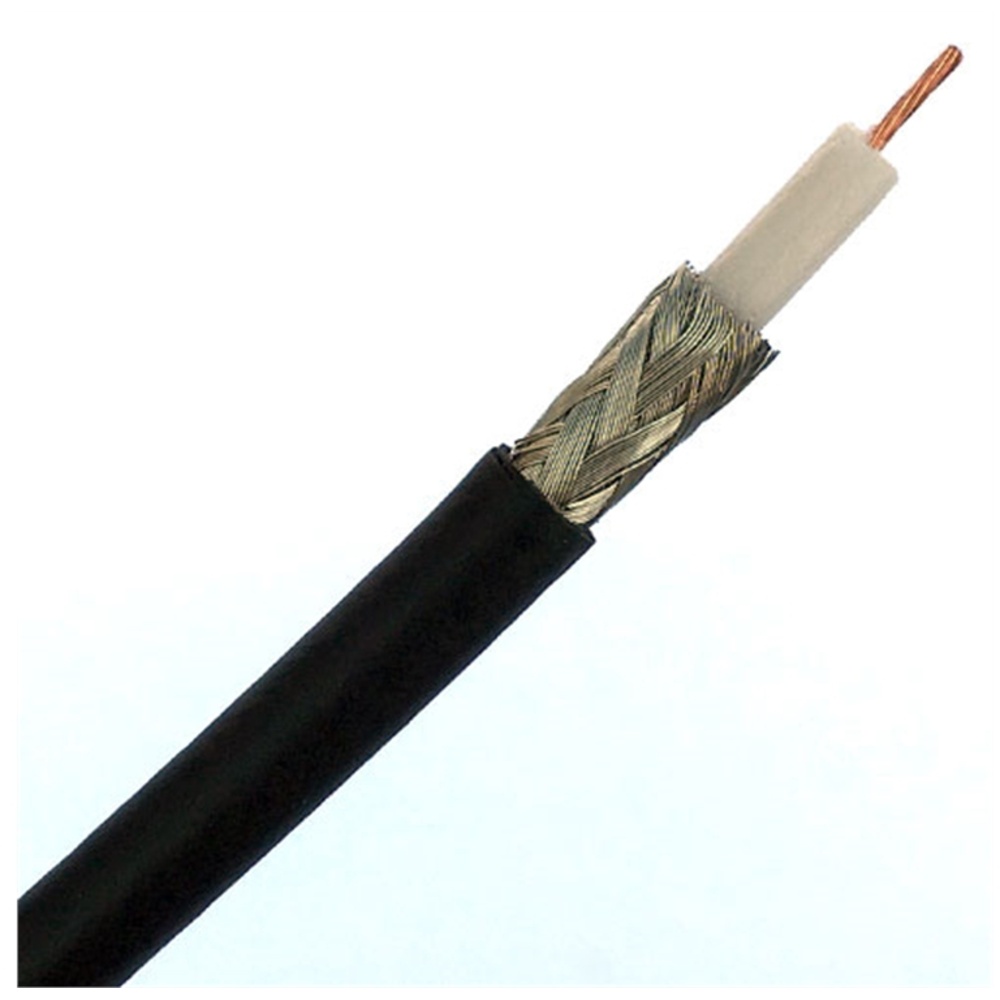

The Canare L-2.5CHWS Ultra Slim 12G-SDI UHD Video Cable 100 Meter sits in our Bulk Cable range. Compatible with Canare BCP-B25HW BNC connectors and DCP-C25HW 1.0/2.3 DIN connector.
Highlights include 75 ohm coaxial cable, designed for 12G-SDI / UHD use, overall diameter 4.2 mm, black PVC jacket and stranded 24 AWG center conductor.
Key specifications: length meters 100 m; weight 3.2 kg/100m; product name 75Ω Coaxial Cable; model number L-2.5CHWS; nominal outside diameter 4.2 mm.
Manufacturer model number L-2.5CHWS100.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product name | 75Ω Coaxial Cable |
|---|---|
| Model number | L-2.5CHWS |
| Nominal outside diameter | 4.2 mm |
| Weight | 3.2 kg/100m |
| Inner conductor | 24 AWG, 7/0.20A |
| Dielectric outside diameter | 2.6 mm |
| Shield construction | 0.10TA / 8 /16 (95%), 0.10TA / 9 /16 (94%) |
| Impedance | 75 ohms |
| Capacitance | 53 pF/m |
| Inner conductor resistance | 8.5 ohms/100m |
| Screen resistance | 1.0 ohms/100m |
| Jacket material | PVC |
Product details
| Length Meters | 100 m |
|---|---|
| Compatible With | Canare BCP-B25HW BNC connectors and DCP-C25HW 1.0/2.3 DIN connector |
