Description

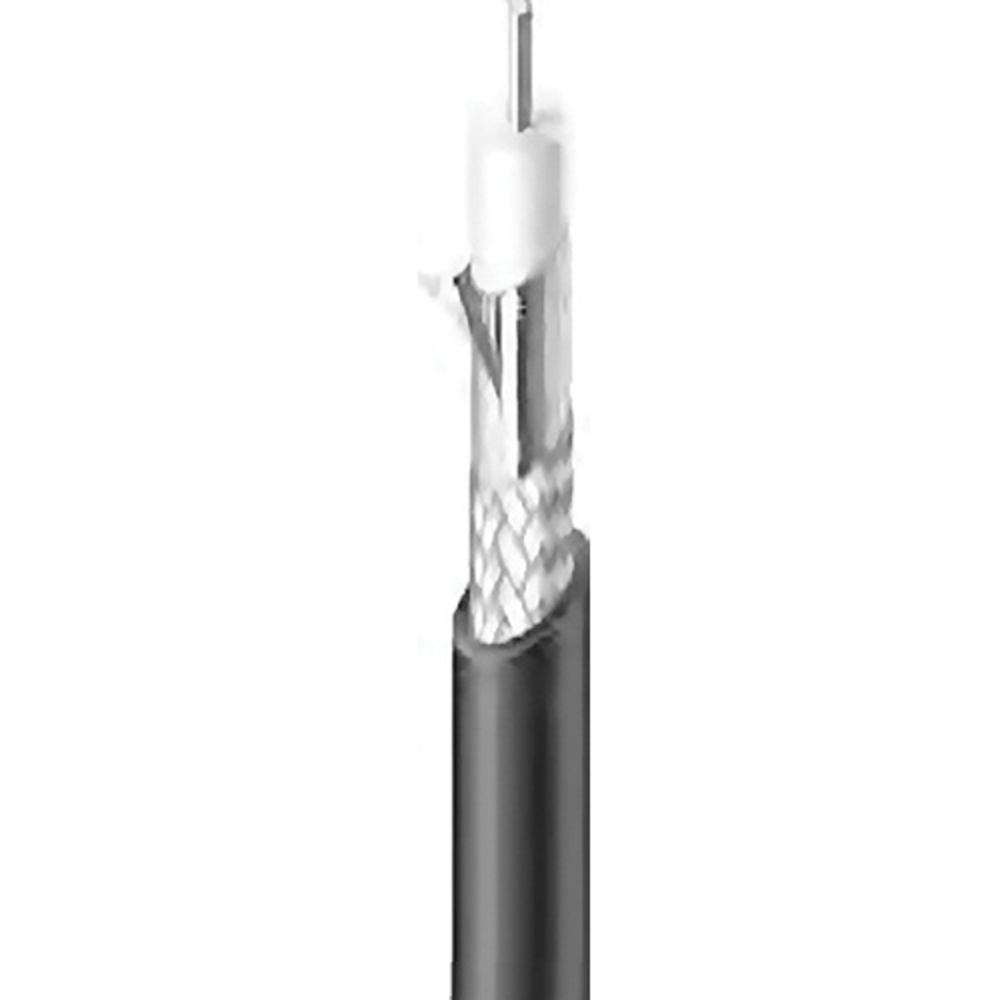

The Canare L-2.5CHD Video Coaxial Cable (100m, Black) sits in our Bulk Cable range.
Highlights include 100% sweep tested, supports SMPTE 259M, 292M & 424M and UL 1666 riser flame test conformant.
Key specifications: length meters 100 m; length 100m; static capacity 53 nF/km @ 1 kHz; impedance 75±3 Ω.
Manufacturer model number L-2.5CHD-B1R.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Resistance | Inner Conductor: ≤64.3 Ω/km Outer Conductor: ≤16.9 Ω/km |
|---|---|
| Static Capacity | 53 nF/km @ 1 kHz |
| Impedance | 75±3 Ω |
| Maximum Transmission Distance | Composite NTSC: 1030.18' (314 m) @ 143 Mbps (SMPTE 259M) Composite PAL: 941.60' (287 m) @ 177 Mbps (ITU-R BT.601) Component (4:2:2): 777.55' (237 m) @ 270 Mbps (SMPTE 259M) Component (4:2:2) 16x9: 675.85' (206 m) @ 360 Mbps (SMPTE 259M) SDI: 551.18' (168 m) @ 540 Mbps (SMPTE 344M) HD-SDI: 216.53' (66 m) @ 1.5 Gbps (SMPTE 292M) HD 1080p: 150.91' (46 m) @ 3 Gbps (SMPTE 424M) |
| Length | 100m |
Product details
| Length Meters | 100 m |
|---|
In the box
- Canare L-2.5CHD Video Coaxial Cable (100m, Black)
Reviews
There are no reviews yet.
