Description

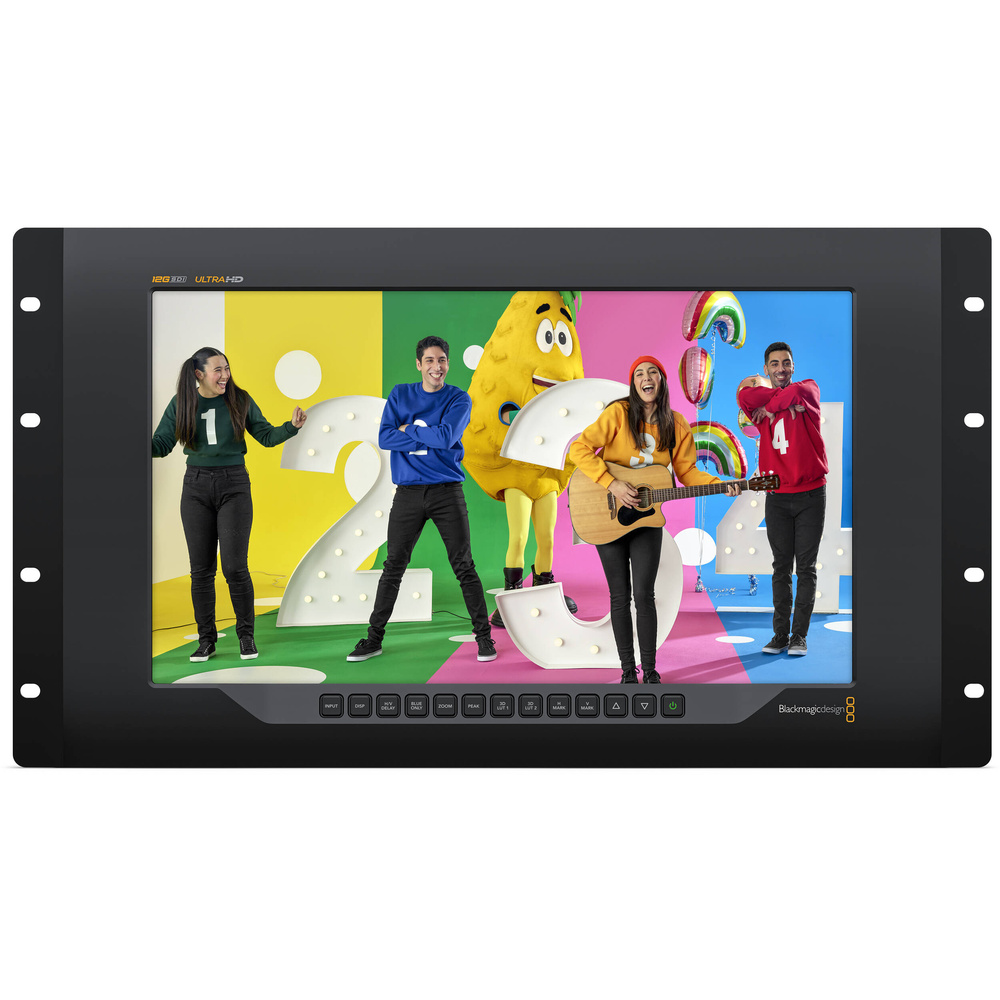

Blackmagic SmartView 4K G3 15.6" DCI 4K Broadcast Monitor (6RU): a production monitor.
Highlights include 15.6" 3840 x 2160 Active-Matrix TFT LCD, supports up to DCI 4K60 video, SMPTE 2110 IP in via RJ45, optical fiber, 2 x multi-rate 12G-SDI inputs and 1 x optical fiber SDI socket.
Key specifications: connection SDI; screen size 15.6"; SDI inputs 2; SDI rates 270Mb, 1.5G, 3G, 6G, 12G.; updates and configuration USB.
An external monitor gives a larger, brighter view with exposure and focus tools the camera screen lacks. Manufacturer model number HDL-SMTV4K12G3.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Connections | |
|---|---|
| SDI Inputs | 2 |
| SDI Outputs | 1 loop out Reclocked video output that automatically switches to input selection. |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G. |
| Optical Video Input | SFP Optical Fiber connector cage. Supports 2110 IP video and optical SDI. |
| Multi Rate Support | Auto detection of 4K, Ultra HD, 2K, HD or SD inputs. |
| Updates and Configuration | USB |
| Ethernet | 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates. |
| Tally | 9-pin D connector |
| Standards | |
| SD Format Support | 525i59.94 NTSC, 625i50 PAL |
| HD Format Support | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Format Support | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30 |
| Ultra HD Format Support | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 4K Format Support | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B,SMPTE 425M, SMPTE 2082. |
| SDI Color Space | REC 601, REC 709 |
| SDI Auto Switching | Automatically selects between SD, HD, 3G, 6Gand 12G-SDI. |
| Video Sampling | 4:2:2 and 4:4:4 |
| IP Video Compliance | |
| SMPTE 2110-20 (Uncompressed Video) | IGMP v2 |
| SMPTE 2110-21 (Traffic Shaping) | Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 (PCM) | Audio Conformance level: Level C |
| SMPTE 2110-40 (Ancillary Data) | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Precision Time Protocol | IEEE 1588‑2008 (PTP v2) ST 2059‑1 ST 2059‑2 |
| NMOS IS‑04 Discovery and Registration | v1.3.2 Peer‑to‑peer via mDNS/DNS‑SD |
| NMOS IS-05 Connection Management | v1.1.2 NMOS BCP‑002‑01 Natural Grouping |
| NMOS BCP‑004‑01 | Receiver capabilities |
| Code | Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. |
| Software | |
| Internal Software Upgrade | Via included firmware updater software. |
| Settings Control | Via USB or Ethernet. |
| Operating Systems | Mac 12.0 Monterey, Mac 13.0 Ventura or later. Windows 10, 64-bit. Windows 11. |
| Display | |
| Display Element | 15.6" TFT Active Matrix LCD |
| Display Resolution | 3840 x 2160 pixels |
| Response | 25 ms |
| Contrast Ratio | 1000:1 |
| Color Depth | 16.7 million colors |
| Power Requirements | |
| Power Supply | 1 x Internal 100 - 240V AC 50/60Hz. |
| Power Inputs | 1 x IEC C14 socket for AC power. 1 x 5.5mm barrel +12V DC In for external power supply or battery use. |
| Power Consumption | 24 W |
| Physical Installation | 6 rack units. |
| Environmental | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
Product details
| Screen Size | 15.6" |
|---|---|
| Connection | SDI |
| Screen Resolution | 3840 × 2160 |
In the box
- Blackmagic SmartView 4K G3 15.6" DCI 4K Broadcast Monitor (6RU)
