Description

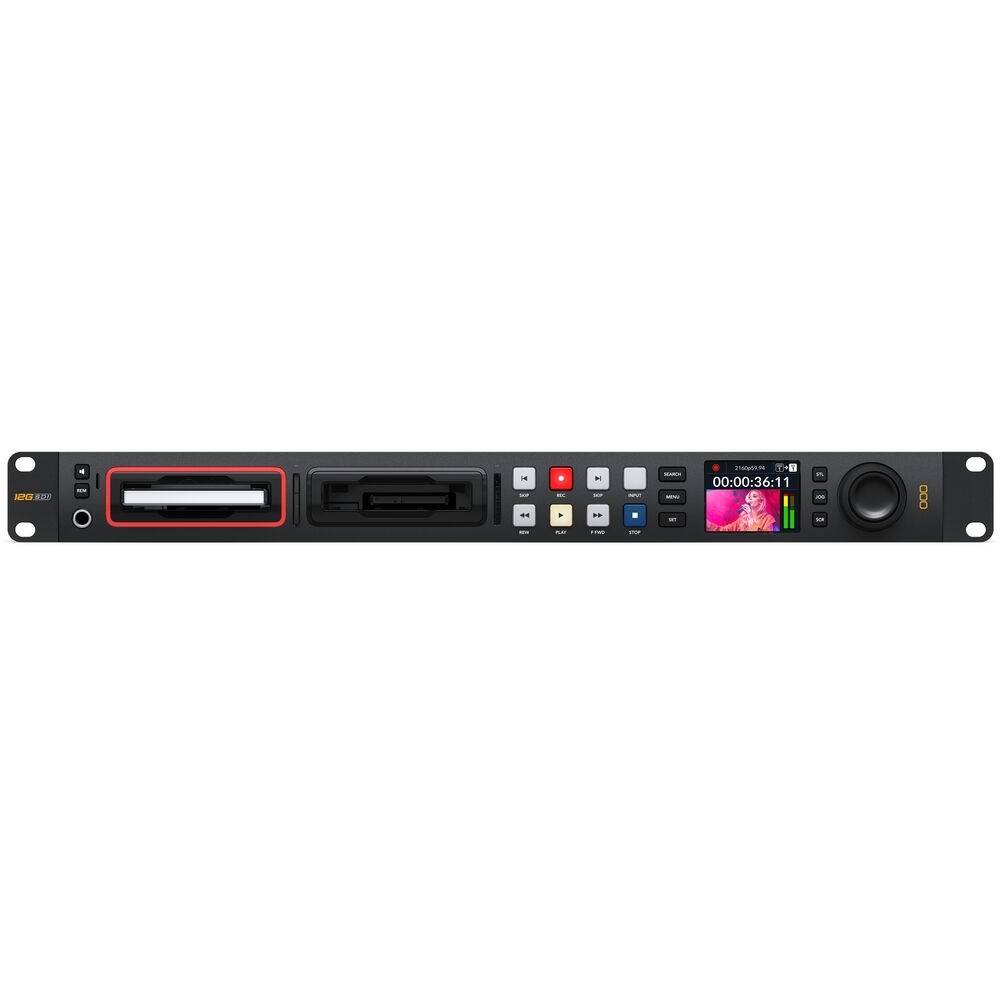

Blackmagic HyperDeck Studio 4K Pro: a video recorder.
Highlights include 1 RU file-based video recorder, H.264/H.265 10-Bit 4:2:2 Video, records compressed in ProRes / DNxHD, 1 x 12G-SDI input, 2 x 12G-SDI outputs and 2 x 2.5" SSD slots & 2 x SD card slots.
Key specifications: weight 4.65 lb / 2.11 kg; dimensions 19 x 9.3 x 1.7" / 48.3 x 23.6 x 4.4 cm; display size 2.2" LCD; USB I/O 1 x USB-C 3.1/3.2 Gen 2 Female Output; audio I/O 1x 1/4" Headphone Output.
An external recorder captures higher-quality codecs than many cameras record internally. Manufacturer model number HYPERD/ST/DG4P.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| General | |
|---|---|
| Format Support | DCI/UHD 4K 2160p: 30/29.97/25/24/23.98 2K 1440p: 30/29.97/25/24/23.98 1080p: 60/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 NTSC/PAL 525i 59.94 625i 50 480p60 and 576p50 via HDMI Only |
| Display Size | 2.2" LCD |
| Inputs / Outputs | |
| USB I/O | 1 x USB-C 3.1/3.2 Gen 2 Female Output |

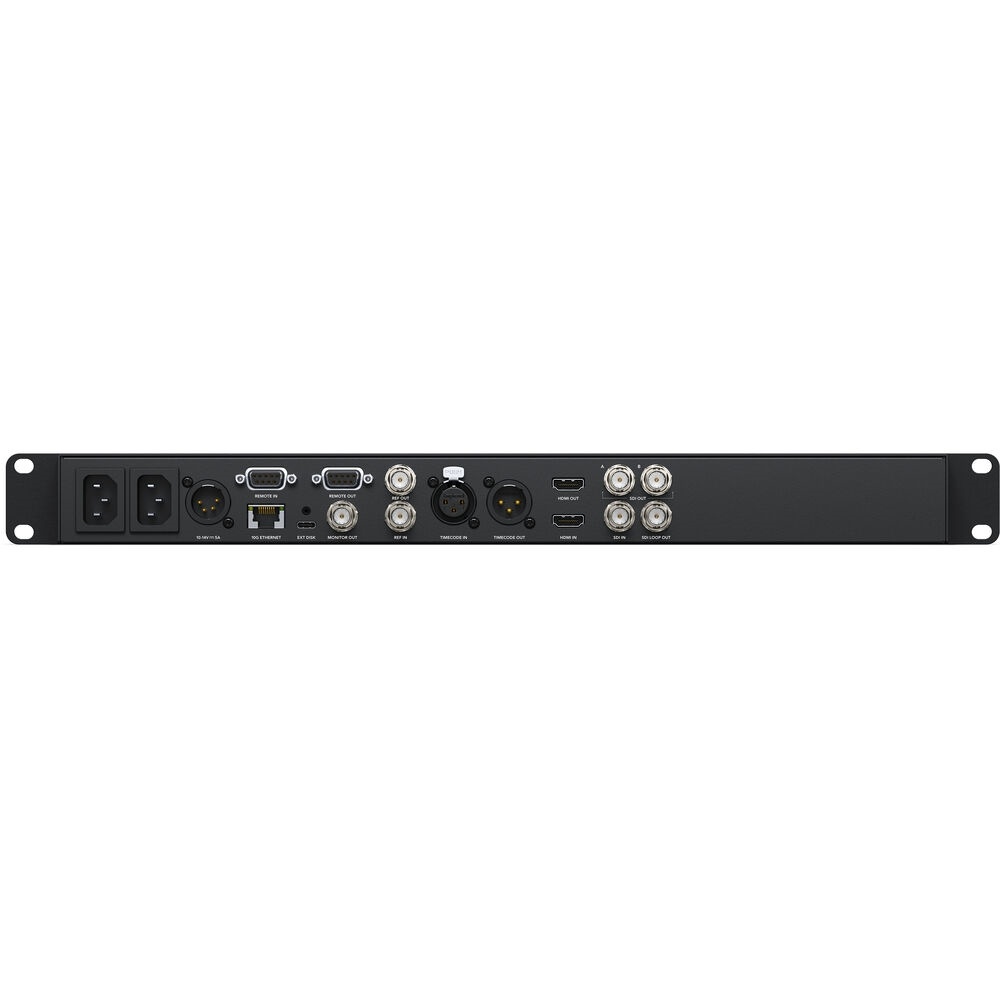

| Video I/O | 1x BNC (12G-SDI) Input 2x BNC (12G-SDI) Output 2x BNC (3G-SDI) Loop Output 1x HDMI 2.0 Input 1x HDMI 2.0 Output |
| Audio I/O | 1x 1/4" Headphone Output |
| Network | 1 x RJ45, 10 Gb/s |
| Media Slots | 2 x 2.5" SSD 2 x SD Card |
| SSD Interface | 2 x 2.5" SATA III 6 Gb/s |
| Reference Input | 1 x BNC |
| Reference Output | 1 x BNC |
| Timecode | 1 x XLR (Input) 1 x XLR (Output) |
| Embedded Audio | Input: 16 x Channels SDI 8 x Channels HDMI Output: 8 x Channels SDI 8 x Channels HDMI |
| Speaker | Mono |
| Device Control | 1 x RS-422 Input 1 x RS-422 Output |
| Supported Operating Systems | macOS 10.15 Catalina macOS 11.1 Big Sur or Later Windows 10, 64-Bit |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2084, and SMPTE 2108-1 |
| SDI Metadata Support | HD RP188 and closed captioning CEA-708 HDR Metadata Supported on SDI |
| Sampling | Video: 4:2:2 YUV Audio: 24-Bit, 48 kHz |
| Colour Precision | 10-Bit |
| Colour Space | Rec. 601, Rec. 709, Rec. 2020 3D LUTS can be Applied to SDI Monitor Out |
| Multiple Rate Support | Autodetection of SD, HD, 6G-SDI, and 12G-SDI |
| HDR Support | Hybrid Log Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
| Codecs Supported | ProRes HQ QuickTime ProRes 422 QuickTime ProRes LT QuickTime ProRes Proxy QuickTime for all Formats up to 2160p30 ProRes 4444 QuickTime up to 1080p60 with Auto Routing of Fill and Key over SDI A and B Outputs (Playback Only) DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD Formats up to 60 fps DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p Formats up to 30 fps H.265 SDI 4:2:2 10-Bit, H.265 High 4:2:0 10-Bit, H.265 Medium 4:2:0 10-Bit, H.265 Low 4:2:0 10-Bit for all 2160p Formats up to 60 fps H.264 SDI 4:2:2 10-Bit, H.264 High 4:2:0 8-Bit, H.264 Medium 4:2:0 8-Bit, H.264 Low 4:2:0 8-Bit for all Progressive formats up to 1080p60 |
| Rack Size | 1 RU |
| Power | |
| Power Source | AC Input |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 VDC |
| Power Consumption | 100 W (Maximum) |
| Power Input Connection | 4-Pin XLR Input |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 90% () |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Storage Humidity | 0 to 90% |
| Physical | |
| Dimensions | 19 x 9.3 x 1.7" / 48.3 x 23.6 x 4.4 cm |
| Weight | 4.65 lb / 2.11 kg |
In the box
- Blackmagic Design HyperDeck Studio 4K Pro
