Description

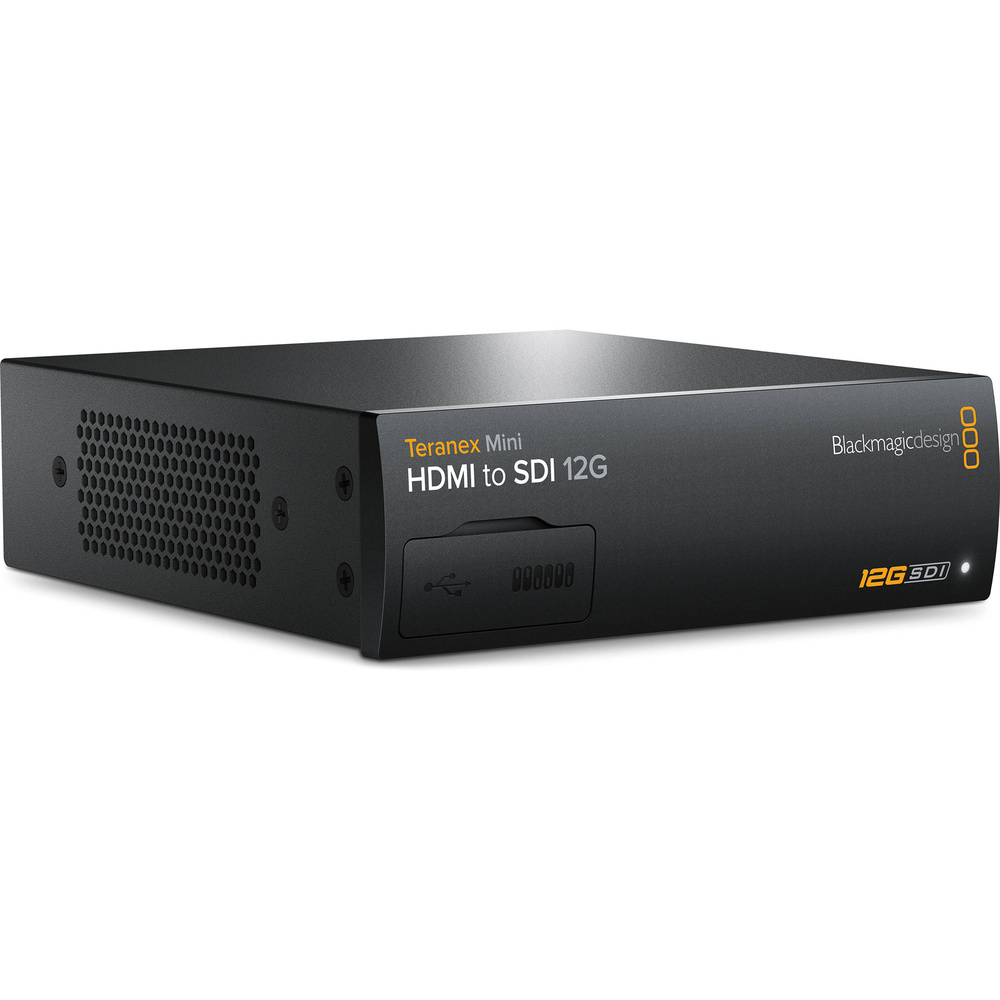

The Blackmagic Design Teranex Mini HDMI to SDI 12G Converter is a signal converter.
Highlights include advanced high-data rate signal convertor, supports up to 4K DCI 4096x2160p signals, two independent 12G-SDI outputs, run 4096x2160p 70 ft using 6G-SDI Cables and XLR connections switchable to AES/EBU.
Key specifications: weight 0.6 kg; HDMI input 1x HDMI 2.0 type A; multi rate support Automatic switching between SD, HD, 2K, and 4K; updates and configuration USB or Ethernet; SD format support 525/29.97 NTSC, 625/25 PAL.
In the box: Blackmagic Design teranex mini HDMI to SDI 12G converter, software SD card and limited 3-Year warranty.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| HDMI Input | 1x HDMI 2.0 type A |
|---|---|
| SDI Video Output | 2x SDI on BNC (automatically matches SD, HD, 3G, 6G, 12G-SDI HDMI video input) |
| XLR Audio Input | 2 channels professional balanced analogue audio via XLR connectors Right XLR can be configured for timecode input |
| AES/EBU Audio Input | 4 channels professional 110 ohm balanced digital audio via XLR connectors Right XLR can be configured for timecode input |
| Multi Rate Support | Automatic switching between SD, HD, 2K, and 4K |
| Updates and Configuration | USB or Ethernet |
| Re-Clocking | Yes |
| SD Format Support | 525/29.97 NTSC, 625/25 PAL |
| HD Format Support | 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60 |
| 2K Format Support | 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25 |
| 4K Format Support | 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, ITU-R BT.656, and ITU-R BT.601 |
| SDI Video Rates | SDI video connections are auto switching between SD-SDI, HD-SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| SDI Colour Precision | 4:2:2 and 4:4:4 |
| SDI Colour Space | YUV |
| HDMI Format Support | 525/29.97 NTSC, 625/25 PAL, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60 |
| HDMI Colour Space | REC 601, REC 709 |
| HDMI Colour Precision | YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources Always confirm copyright ownership before capture or distribution of content |
| Software Control | Mac OS X and Windows software upgrade via USB and Ethernet |
| Internal Software Upgrade | Via included updater application |
| Basic Settings Control | Mini Switches, USB, and Ethernet via free software utility |
| Power Supply | 1x built-in international AC power supply with IEC C14 inlet IEC power cable required (not included) 90 - 240 VAC input |
| Power Over Ethernet | Can be powered via 48 VDC using PoE (Power-over-Ethernet) |
| Power Consumption | 15 W |
| Operational Voltage Range | 90 - 240 VAC |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 60°C |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | W x H x D: 14 x 4.6 x 17 cm (with SDI port included) |
| Weight | 0.6 kg |
In the box
- Blackmagic Design Teranex Mini HDMI to SDI 12G Converter
- Software SD Card
- Limited 3-Year Warranty
