Description
The Blackmagic Design MultiView 4 sits in our Video Routers, Switchers & DA's range.

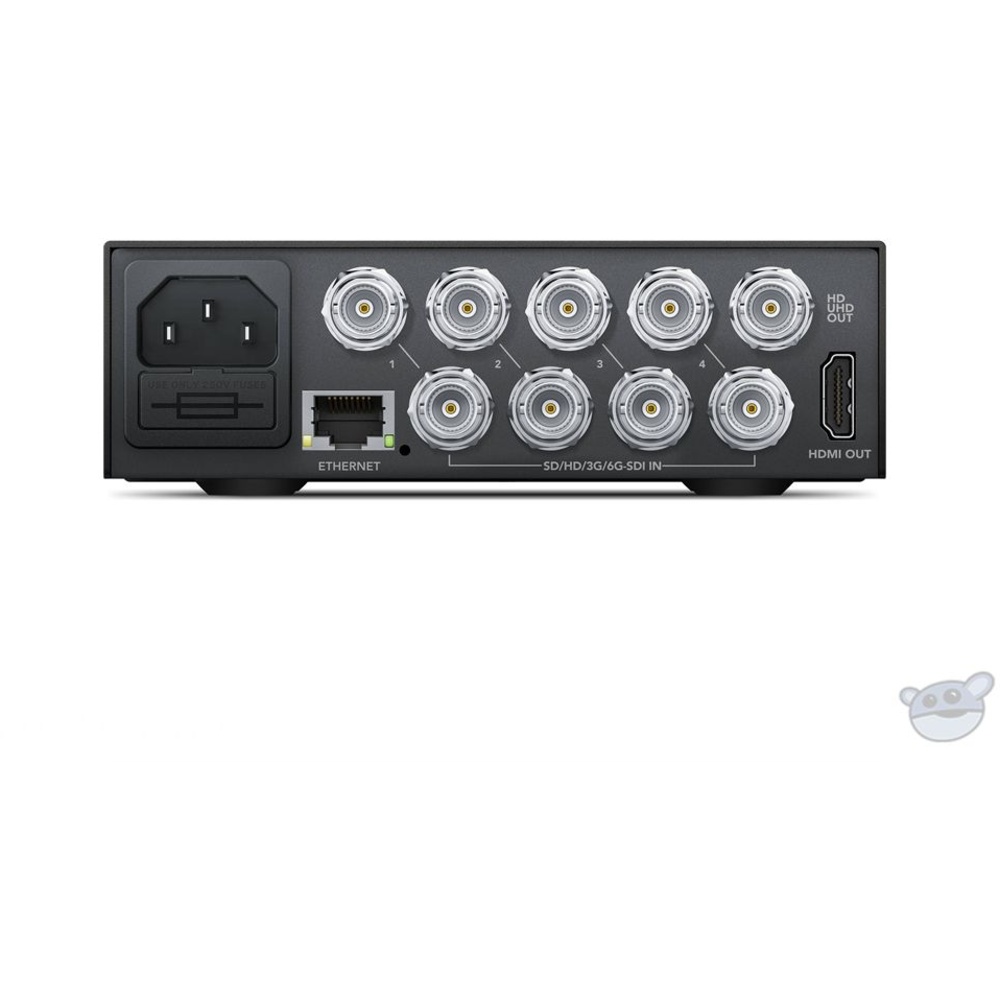

Highlights include 4x 6G-SDI inputs with loop outputs, 1x SDI & 1x HDMI MultiView outputs, supports SD, HD, UHD 4K, DCI 4K, independent inputs allow mixing formats and standard 2x2 configuration.
Key specifications: weight 0.58 kg; dimensions (W x H x D) 13.99 x 4.45 x 16.99 cm; SDI video input 4 x 10-bit SD/HD/6G-SDI; SDI video output 4 x 10-bit SD/HD/6G-SDI loop outputs; control 1 x RJ45 Ethernet.
In the box: Blackmagic Design MultiView 4, SD Card with Software and Manual and limited 3-Year warranty.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Connections | |
|---|---|
| SDI Video Input | 4 x 10-bit SD/HD/6G-SDI |
| SDI Video Output | 4 x 10-bit SD/HD/6G-SDI loop outputs |
| Multi-View Outputs | 1 x 10-bit HD/6G-SDI 1 x HDMI, type A (supports EDID of the monitor) |
| Multi-Rate Support | Auto detection of SD, HD, or 6G-SDI. Simultaneous viewing of 4K, HD, and SD video. |
| Updates | USB 2.0 high speed (480 Mb/s) interface or via Ethernet |
| Control | 1 x RJ45 Ethernet |
| Configuration | Via RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting |
| Reclocking | On all SDI outputs; auto switching between SD, HD, or 6G-SDI video |
| Standards | |
| Format Support | SD Format Support 625/25 PAL 525/29.97 NTSC HD Format Support 720p 50/59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K Format Support 2048x1080p 23.98/24/25 2048x1080PsF 23.98/24/25 4K Format Support 3840x2160p 23.98/24/25/29.97/30 4096x2160p 24 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656, and ITU-R BT.601 |
| SDI Video Rates | SD-SDI: 270 Mb/s HD-SDI: 1.5 Gb/s 3G-SDI: 3 Gb/s 6G-SDI: 6 Gb/s |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Colour Precision | 4:2:2 and 4:4:4 10-bit |
| SDI Colour Space | Inputs: YUV or RGB Outputs: YUV |
| SDI Audio Sampling | 48 kHz and 24-bit |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M |
| Software | |
| Software Control | Multi-view control software included free for Windows and Mac OS X |
| Internal Software Upgrade | Via included updater application |
| General | |
| Power Supply | IEC power cable required 90 to 240 VAC input PoE+: 48 VDC |
| Power Consumption | 16 W |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 45°C |
| Relative Humidity | 0 to 90% non-condensing |
| Rack Space | 1 RU |
| Dimensions (W x H x D) | 13.99 x 4.45 x 16.99 cm |
| Weight | 0.58 kg |
In the box
- Blackmagic Design MultiView 4
- SD Card with Software and Manual
- Limited 3-Year Warranty
