Description

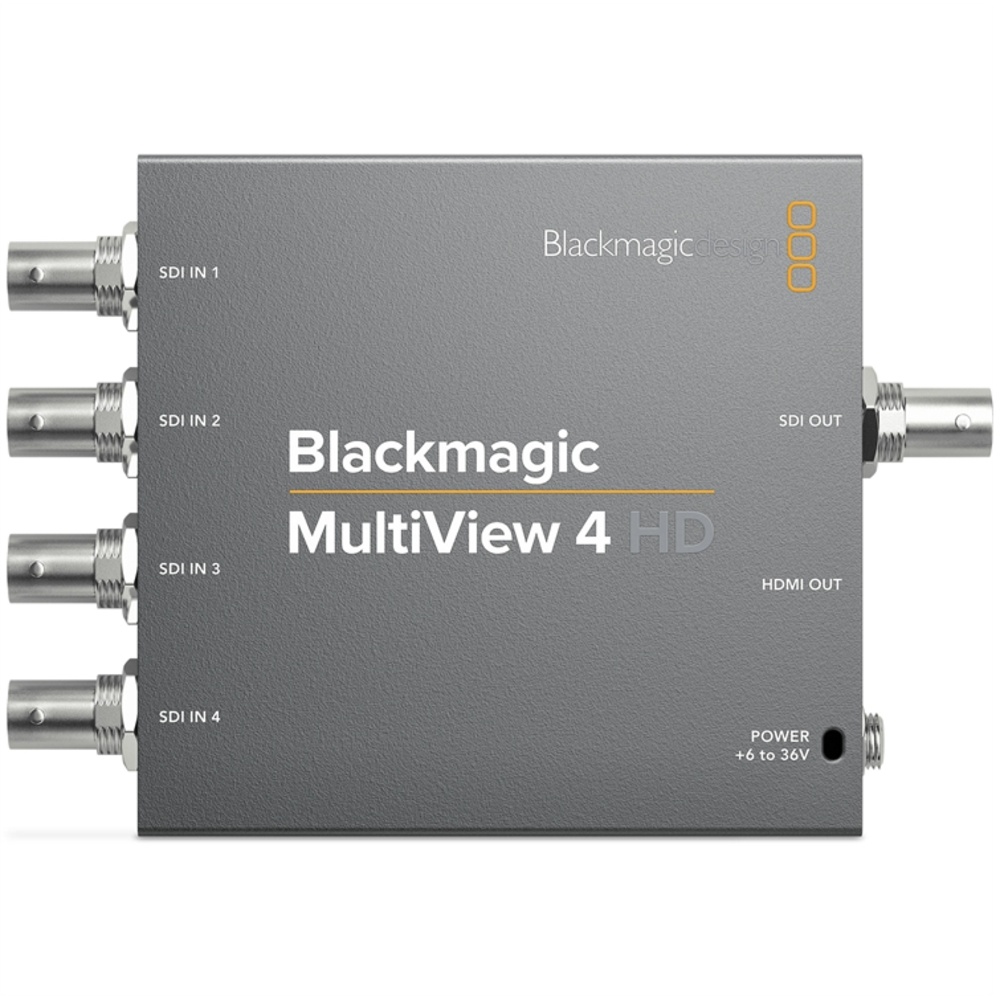

The Blackmagic Design MultiView 4 HD sits in our Video Routers, Switchers & DA's range.
Highlights include 1x SDI & 1x HDMI MultiView outputs, auto detection of SD or HD, USB 2.0 Configuration, 10-bit SD-SDI and HD-SDI Inputs and SDI Reclocking.
Key specifications: SDI video inputs 4 x 10-bit SD-SDI and HD-SDI; SDI video outputs 1 x HD-SDI; SDI rates 270Mb, 1.5G, 3G; SDI video multi view outputs 1 x 10-bit HD-SDI; multi rate support Auto detection of SD or HD.
In the box: Blackmagic MultiView 4 HD and universal power supply with international socket adapters.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Connections | |
|---|---|
| SDI Video Inputs | 4 x 10-bit SD-SDI and HD-SDI |
| SDI Video Outputs | 1 x HD-SDI |
| SDI Rates | 270Mb, 1.5G, 3G |
| SDI Video Multi View Outputs | 1 x 10-bit HD-SDI |
| HDMI Video Multi View Outputs | 1 x HDMI type A connector. Output supports EDID of the monitor |
| SDI Reclocking | On all SDI outputs, auto switching between standard definition or high definition |
| Reference Input | None |
| Multi Rate Support | Auto detection of SD or HD |
| Updates | USB 2.0 high speed (480Mb/s) interface |
| Configuration | USB 2.0 |
| Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24 1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601 |
| Audio Meters | Each view, VU standard |
| Source Routing | None |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Audio Sampling | Television standard sample rate of 48kHz and 24-bit |
| SDI Color Precision | 10-bit 4:2:2 and 4:4:4 |
| SDI Color Space | YUV or RGB for inputs, YUV for outputs |
| SDI Auto Switching | Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M |
| Control | |
| Built in Control Panel | None |
| External Control Panel | None |
| Software | |
| Software Control | MultiView software included free for Windows™ and Mac OS X™ |
| Internal Software Upgrade | Via included updater application |
| Operating Systems | |
| Mac | Mac OS X 10.11 El Capitan macOS Sierra or later |
| Windows | Windows 8.1 Windows 10 |
| Power Requirements | |
| Power Supply | +12V universal power supply included with international socket adapters for all countries. Cable tie point |
| Power Fail Protection | MultiView 4 HD settings preserved and restored instantly at power on. |
| Power Consumption | 5.5 Watts |
| Operational Voltage Range | 6 to 36V DC |
| Environmental Specifications | |
| Operating temperature | 0° to 40° C (32° to 104° F) |
| Storage temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
In the box
- Blackmagic MultiView 4 HD
- Universal power supply with international socket adapters
