Description

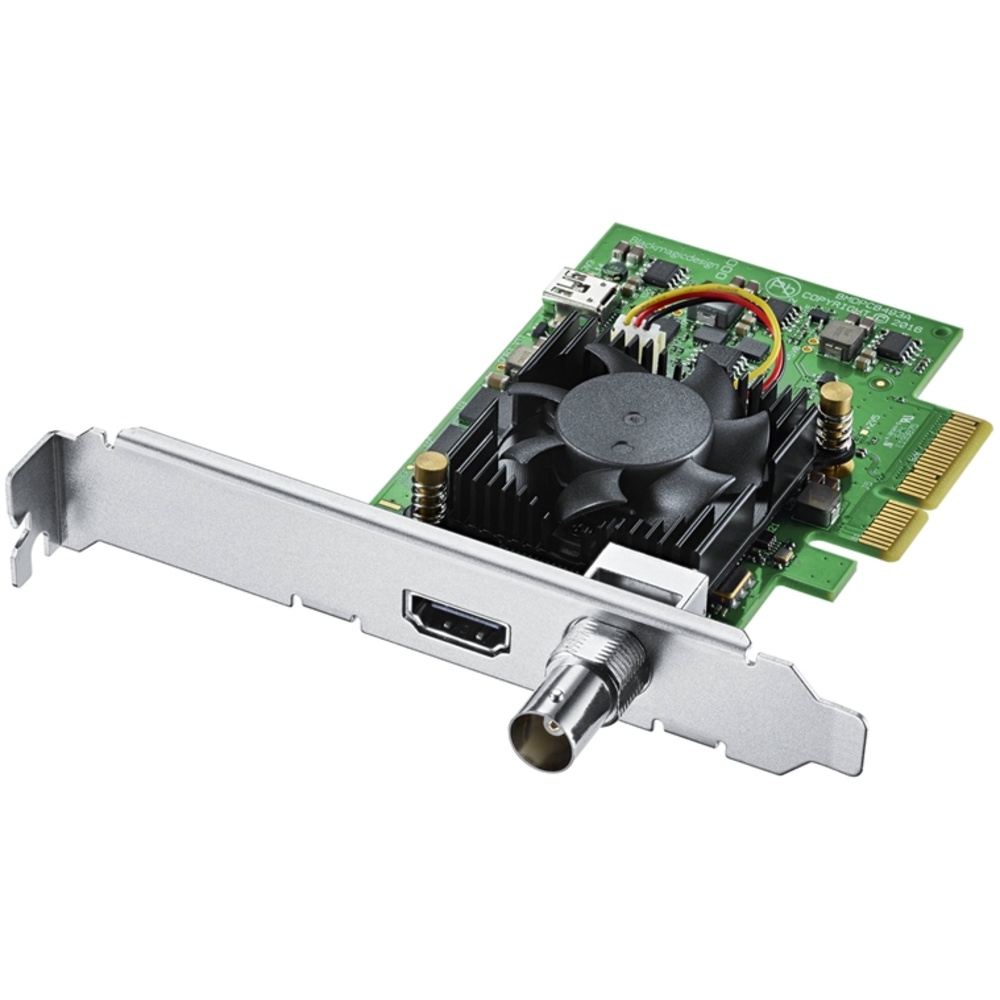

The Blackmagic Design DeckLink Mini Recorder 4K sits in our Computer Hardware range.
Highlights include SD/HD/3G/6G-SDI Input, HDMI Input, PCI-Express 2.0 x4 Interface, DCI 4K, UHD, HD, and SD video support and 10-Bit Processing.
Key specifications: weight 90 g; computer interface PCI-E 2.0 x4; SDI compliance SMPTE 259M, 292M; audio sampling 24-bit, 48 kHz; video sampling 4:2:2.
An external recorder captures higher-quality codecs than many cameras record internally. In the box: Blackmagic Design DeckLink mini recorder 4K, low-profile bracket and limited 3-Year warranty.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| I/O | 1 x BNC, SD/HD/3G/6G-SDI input 1 x HDMI Type A, v2.0 input |
|---|---|
| Computer Interface | PCI-E 2.0 x4 |
| Codec Support | AVC-Intra AVCHD Canon XF (MPEG-2) H.264 DV DVCPRO50 DVCPROHD DPX HDV XDCAM EX/HD/HD422 Apple ProRes 4444/422 HQ/422/LT/Proxy Uncompressed 8-bit 4:2:2 Uncompressed 10-bit 4:2:2 |
| Resolution Support | 4096 x 2160 23.98/24/25 3840 x 2160 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080i 50/59.94/60 720p 50/59.94/60 NTSC PAL |
| SDI Compliance | SMPTE 259M, 292M |
| SDI Metadata Support | VITC read for 3:2 pulldown removal VANC capture using up to 3 lines of video in file HD RP188 and closed captioning |
| Audio Sampling | 24-bit, 48 kHz |
| Video Sampling | 4:2:2 |
| Colour Precision | 10-bit |
| Colour Spaces Supported | REC 601, REC 709, REC 2020 |
| Operating System Support | MacOS 10.10 or later Windows 7/8.1/10 (64-bit) Linux |
| Certification | FCC, COE and C-Tick |
| Environmental | Operating Temperature: 5 to 40°C Storage Temperature: -20 to 45°C Humidity: 0-90%, non-condensing |
| Dimensions | Length: 119 mm Form Factor: Half-height, half-length Width: Single-slot |
| Weight | 90 g |
In the box
- Blackmagic Design DeckLink Mini Recorder 4K
- Low-Profile Bracket
- Limited 3-Year Warranty
Reviews
There are no reviews yet.
