Description

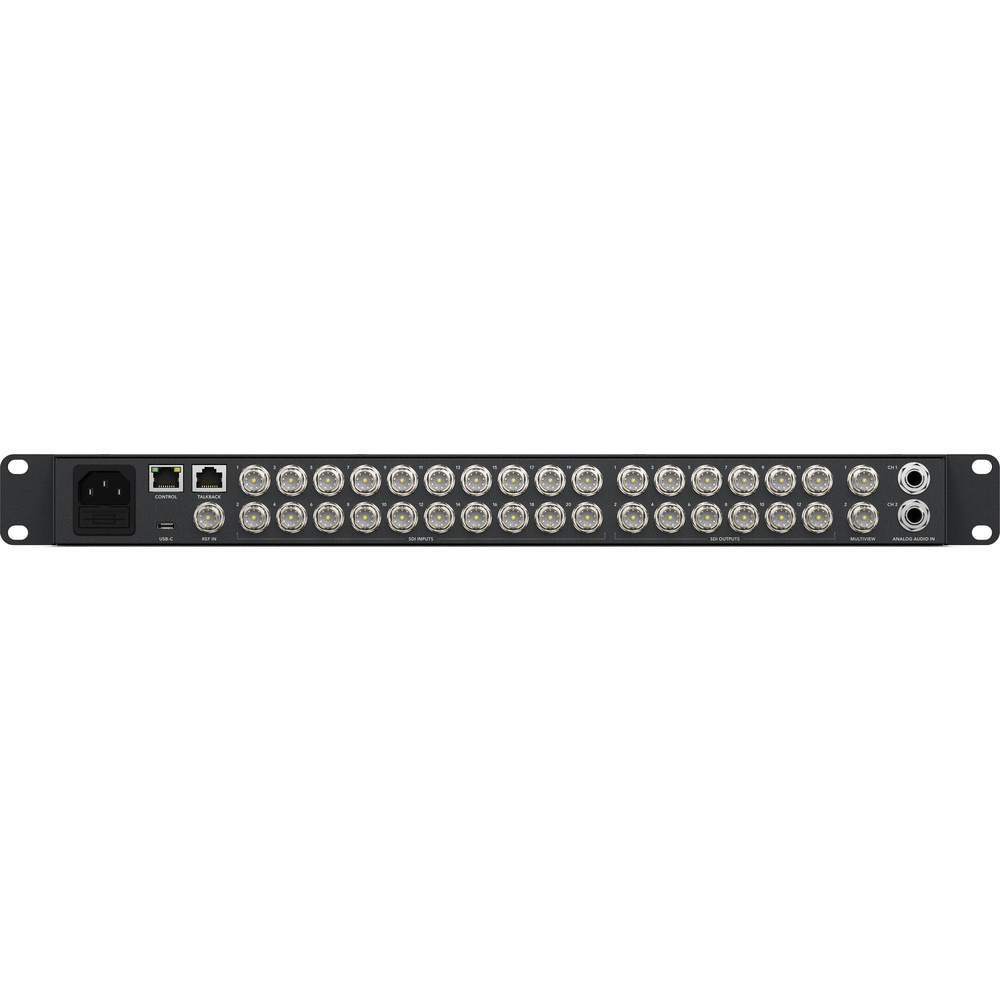

Blackmagic ATEM 2 M/E Constellation UHD 4K Live Production Switcher (1 RU): a video switcher.
Highlights include supports 12/3G/HD-SDI at 10-Bit, 20 x 12G-SDI input, 12 x 12G-SDI output, up to 16-Multiview monitoring Windows, webcam output via USB-C and frame Rate/Format convertor per input.
Key specifications: weight 6.55 lb / 2.97 kg; dimensions 19 x 9.22 x 1.74" / 48.3 x 23.42 x 4.42 cm; available M/E layers 2 M/E; effect types 8x Chroma Key 11x Luma Key 2x DVE, Stinger 2x DVE; downstream keys 2x Chroma, Luma, DVE.
Manufacturer model number SWATEMSCN2/2ME2/4K.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Available M/E Layers | 2 M/E |
|---|---|
| Effect Types | 8x Chroma Key 11x Luma Key 2x DVE, Stinger 2x DVE |
| Downstream Keys | 2x Chroma, Luma, DVE |
| Generators | 2x Colour 11x Pattern |
| Audio Mixing | 48-Channel Mixing |
| Processing | |
| Switching Type | Pushbutton, Software |
| Latency | 10 Lines |
| Processing Resolution | UHD 4K |
| Colour Processing | 10-Bit 4:2:2 |
| Input | |
| Number of Video Input Sources | 20 |
| Video Inputs | 20x BNC (12G-SDI) Female |
| Input Video Format | SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
| Audio Inputs | 2x 1/4" TRS |
| Embedded Audio Input | SDI: 16-Channel |
| Output | |
| Video Output Channels | 12 |
| Video Outputs | 12x BNC (12G-SDI) Female |
| Output Video Format | SDI UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps |
| Embedded Audio Output | SDI: 16-Channel |
| Multiview Output | 16-Way Multiview |
| Connectivity | |
| Other I/O | 1x USB-C 1x XLR 5-Pin Talkback Input 1x XLR 5-Pin Talkback Output 1x RJ45 Control, LAN Input/Output 1x RJ45 Talkback Input/Output 1x BNC Blackburst, Reference, Tri-Level Sync Input |
| Video Standard Compliance | SMPTE 292M/296M/424M/424M-A/424M-B/ST 2081-10/ST-2081-1/ST-2082-1/ST-2082-10 |
| Display | |
| Display Size | 2.2" |
| Hardware | |
| OS Compatibility | Windows 10 to 11 macOS 13.0 to 14.0 |
| Processor | Not Specified by Manufacturer |
| Wi-Fi | Yes |
| Bluetooth | No |
| Power I/O | 1x IEC C13 Input |
| Power Consumption | Device: 100 to 240 VAC (90 W) |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 90% |
| General | |
| Rack Form Factor | 1 RU |
| Dimensions | 19 x 9.22 x 1.74" / 48.3 x 23.42 x 4.42 cm |
| Weight | 6.55 lb / 2.97 kg |
In the box
- Blackmagic Design ATEM 2 M/E Constellation UHD 4K Live Production Switcher (1 RU)
