Description

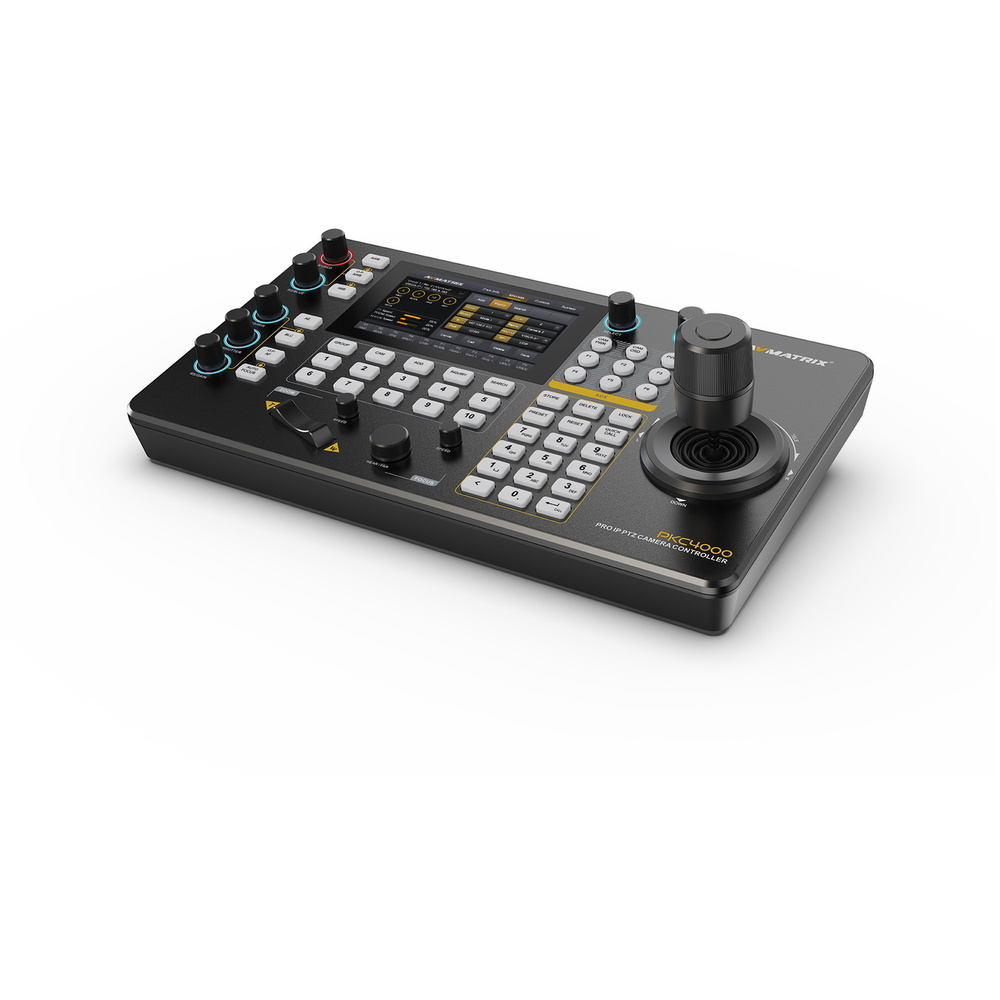

AVMATRIX PKC4000 IP & Serial PTZ Camera Controller (NDI): a PTZ camera accessory.
Highlights include 5-inch touch screen and 4D joystick, supports video decoding, automatic IP address assignment, manages up to 100 IP cameras and 6 user-assignable keys.
Key specifications: weight Net: 1730g, Gross: 2360g; IP protocol ONVIF, VISCA-IP, NDI; serial protocol PELCO-D, PELCO-P, VISCA; serial baud rate 2400, 4800, 9600, 19200, 38400, 115200 bps; LAN port 100M x1 (PoE/PoE+: IEEE802.3 af/at).
Manufacturer model number PKC4000-NDI.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Connections | |
|---|---|
| Interfaces | IP (RJ45) x1, RS-232 x1, RS-485/RS-422 x4, Tally x1, USB 2.0 |
| IP Protocol | ONVIF, VISCA-IP, NDI |
| Serial Protocol | PELCO-D, PELCO-P, VISCA |
| Serial Baud Rate | 2400, 4800, 9600, 19200, 38400, 115200 bps |
| LAN Port | 100M x1 (PoE/PoE+: IEEE802.3 af/at) |
| User interfaces | |
| Display | 5" touch screen |
| Knob | Quickly control iris, shutter speed, gain, auto exposure, white balance etc. |
| Joystick | Pan/Tilt/Zoom |
| Camera Group | 10 (each group connect up to 10 cameras) |
| Camera Address | Up to 100 |
| Camera Preset | Up to 255 |
| Power | |
| Power | PoE/DC 7-24V |
| Power consumption | PoE: <8W, DC: <8W |
| Environment | |
| Working temperature | -20°C-60°C |
| Storage temperature | -20°C-70°C |
| Dimensions | |
| Dimensions | 340 x 195 x 49.5mm 340 x 195 x 110.2mm (With joystick) |
| Weight | Net: 1730g, Gross: 2360g |
In the box
- AVMATRIX PKC4000 IP & Serial PTZ Camera Controller
