Description
FeelWorld KBC10 PTZ Camera Controller with Joystick: a PTZ camera accessory.
Highlights include IP VISCA, VISCA, Pelco-D/P, and ONVIF, control up to 255 cameras, 255 presets, PoE support, Power adapter included, PTZ joystick, configurable buttons and LCD status display.
Key specifications: weight 1.69 kg; dimensions 32 x 18 x 10 cm; number of supported cameras 255 Channels; supported control protocols IP Pelco-D Pelco-P RS-232 RS-422 VISCA; presets 255.
In the box: FeelWorld KBC10 PTZ Camera controller with joystick and Power adapter.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| General | |
|---|---|
| Number of Supported Cameras | 255 Channels |
| Supported Control Protocols | IP Pelco-D Pelco-P RS-232 RS-422 VISCA |

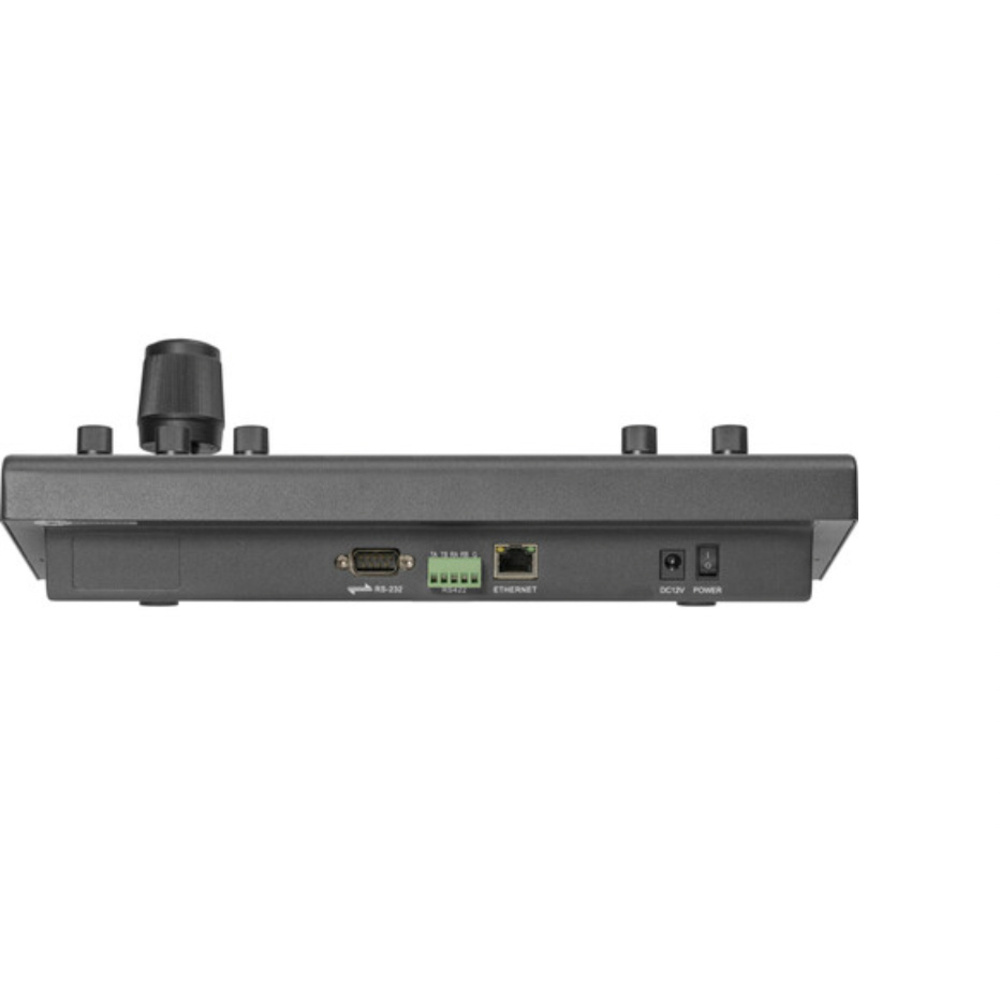

| Control Interface | 1 x RJ45 Output 1 x D-Sub 9-Pin (RS-232) Output 1 x Phoenix (RS-422) Output |
| Presets | 255 |
| Power | |
| PoE Support | Yes |
| Power Connectors | 1 x Barrel / Coaxial |
| Power Consumption | 0.6 W |
| DC Input Power | 12 VDC |
| Environmental | |
| Operating Temperature | 0 to 50°C |
| Operating Humidity | 0 to 90% |
| Physical | |
| Security Lock Support | None |
| Dimensions | 32 x 18 x 10 cm |
| Weight | 1.69 kg |
In the box
- FeelWorld KBC10 PTZ Camera Controller with Joystick
- Power Adapter
