Description
The Aputure Storm 80c LED Monolight 3-Light Kit is an LED light kit. Compatible with Aputure STORM` 80c.
Highlights include three STORM 80c light fixtures, two CF4 fresnels and barn doors, one light dome and Bowens adapter, one handheld bracket, three D-Tap Cables and three AC adapters and 13.1' Power Cables.
Key specifications: mounting 1x Mini ProLock; connector 1 D-Tap Male; connections 2 x 3/8"-16 Male Stud; weight 1.2 lb / 530 g; dimensions 5.5 x 5.5 x 3.4" / 14 x 14 x 8.7 cm.
Continuous LED light lets you see the effect as you set it, for video and stills alike. In the box: 3x Aputure Storm 80c LED Monolight, 2x Aputure CF4 Fresnel for STORM 80c, 2x Aputure Barndoors for CF4 Fresnel, Aputure light dome 40 with grid for STORM 80c (15.7"), Aputure handheld bracket with V-Mount and D-Tap cable for STORM 80c and Aputure mini ProLock to Bowens mount adapter for STORM 80c monolight and 3 more items. Manufacturer model number AP0703012L.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Light Fixture | |
|---|---|
| Item Type | 1x LED Monolight |
| Included Light Modifier | 1x Reflector 1x Diffuser |
| Included Storage Case | Yes |
| Lumens | 13,201 (at 3200K) |
| Photometrics | 35° at 3200K: 1806 fc / 19,443 Lux at 3.3' / 1 m (with Reflector) *Standardised Measurement Supplied by the Manufacturer 35° at 5600K: 1844 fc / 19,850 Lux at 3.3' / 1 m (with Reflector) *Standardised Measurement Supplied by the Manufacturer |
| Colour Temperature | 1800 to 20,000K |
| Colour Modes | RGB |
| Colour Accuracy Standard | CRI 97 TLCI 99 CQS 96 at 5600K CQS 97 at 3200K SSI 88 SSI 84 TM-30 Rf 96 TM-30 Rg 103 |
| Dimming | App-Controlled / Built-In Dimmer / DMX (Continuous) |
| Beam Angle | 35° with Included Reflector 60° Unmodified |
| Built-In Flash | No |
| Preprogrammed Effects | Yes |
| Umbrella Mount | No |
| Front Accessory Mount | Proprietary |
| Connectivity | |
| Wireless Remote Control Type | Bluetooth Wireless CRMX |
| Mobile App Compatible | Yes: Android & iOS |
| Power & I/O | |
| Power Source | AC Power (Cable Included) *Requires Power Supply/Controller (Included) |
| Inputs/Outputs | 1x USB-C Firmware Input/Output 1x XLR 3-Pin DMX Input |
| Battery Plate Type | 1x V-Mount (Not Included) |
| Battery | 1x V-Mount Rechargeable, 14.4 VDC (Not Included) |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Included Adapter / Cable | 1x Proprietary to IEC Cable • 19 VDC at 5.3 A |
| Power Consumption | 100 W (Maximum) |
| Mounting | |
| Yoke Type | Manually-Operated Yoke |
| Fixture Mounting | Accessory Mount 2x 3/8"-16 Female Thread 2x 3/8"-16 Female Thread (Via Yoke Mount) |
| General | |
| Display | LCD |
| Environmental Resistance | Dust/Water-Resistant (IP65) |
| Operating Conditions | -4 to 113°F / -20 to 45°C |
| Storage Conditions | -40 to 176°F / -40 to 80°C |
| Dimensions | 5.8 x 4.1 x 4" / 14.7 x 10.4 x 10.1 cm (Fixture without Yoke) 8.9 x 6.6 x 5.8" / 22.5 x 16.7 x 14.7 cm (Fixture with Yoke) |
| Weight | 2.23 lb / 1.01 kg (Fixture without Yoke) 2.98 lb / 1.35 kg (Fixture with Yoke) 0.9 lb / 405 g (Power Supply/Controller) |
| Compatibility | Aputure STORM` 80c |
| Physical | |
| Mounting | 1x Mini ProLock |
| Colour | Black |
| Dimensions | 5.5 x 5.5 x 3.4" / 14 x 14 x 8.7 cm |
| Weight | 1.2 lb / 530 g |
| Aputure Barndoors for CF4 Fresnel | |
| Item Type | 8-Leaf Barndoors |
| Light Compatibility | Proprietary Mount: For Aputure CF4 Fresnel / Aputure STORM 80c |
| Materials | Aluminium |
| Weight | 13.4 oz / 380 g |
| **Aputure Light Dome 40 with Grid for STORM 80c ** | |
| Interior Colour | Silver |
| Light Compatibility | Direct Attachment (Requires No Bracket/Speed Ring) with Proprietary Mount: For Aputure 80c |
| Quick Open Type | Click/Locking Type |
| Accepts Grids | Yes (Included) |
| Removable Front Face | Yes |
| Interior Baffle | Yes, Removable |
| Light Loss/Gain | 1- to 2-Stop Loss (with Diffuser) |
| Materials | Fabric |
| Dimensions | ø: 17.3" / ø: 44 cm 17.3 x " / 44 x cm 15 x 3.9 x 1.7" / 38 x 10 x 4.3 cm (Closed) |
| Weight | 1.61 lb / 0.73 kg |
| General | |
| Compatibility | Aputure STORM 80c |
| Physical | |
| Mounting | Top: 1x 3/8"-16 Thumbscrew Front: 1x 5/8" Baby Pin Receiver Front: 1x V-Mount Plate |
| Weight | 11.3 oz / 320 g |
| Mounting | 1x Mini ProLock to Bowens |
| Material of Construction | Metal |
| Weight | 4.6 oz / 130 g |
| General | |
| Connector 1 | D-Tap Male |
| Connector 2 | Barrel / Coax Male |
| Cable Length | Not Specified by Manufacturer |
| Mounting | |
| Mounting | Light/Accessory Mount: |
| Aputure Universal Magic Arm | |
| Connections | 2 x 3/8"-16 Male Stud |
| Number of Sections | 2 |
| Points of Articulation | 3 |
| Weight | 7.1 oz / 200 g |
Product details
| Colour Temperature | 1800 - 20,000K |
|---|
In the box

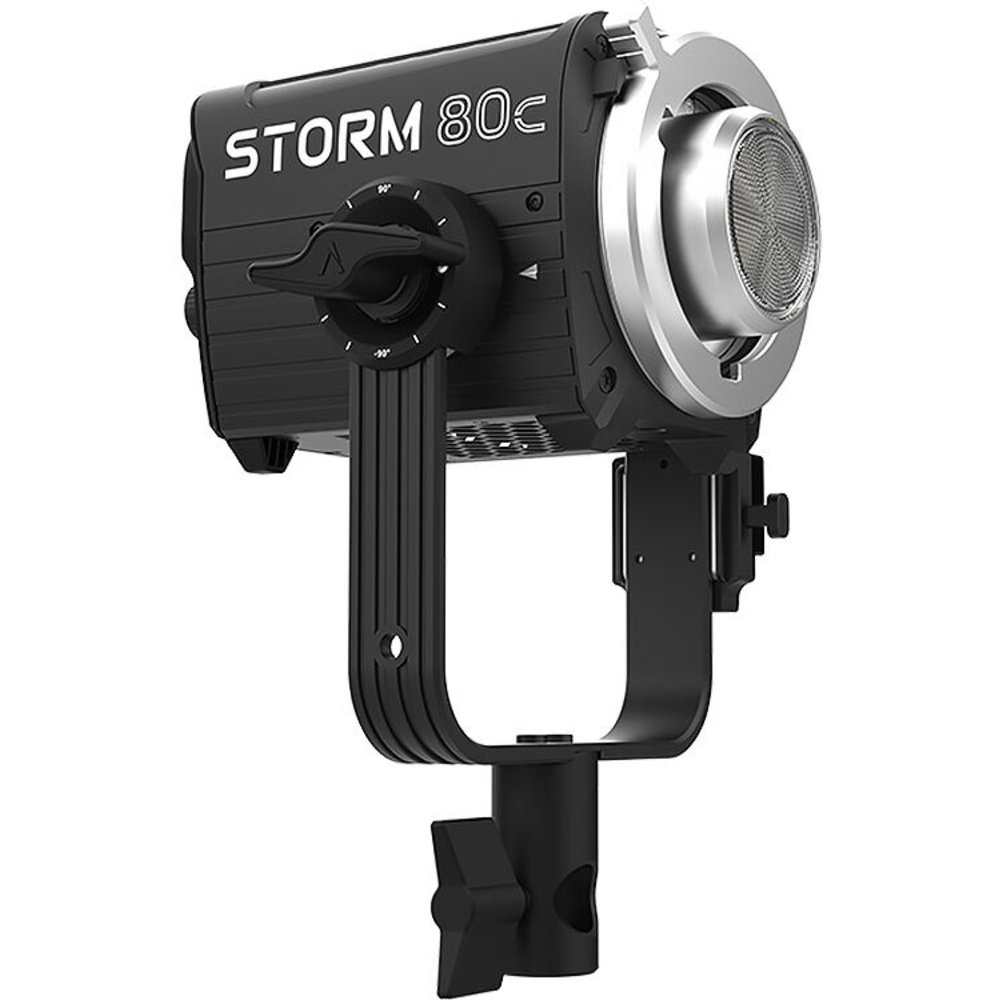

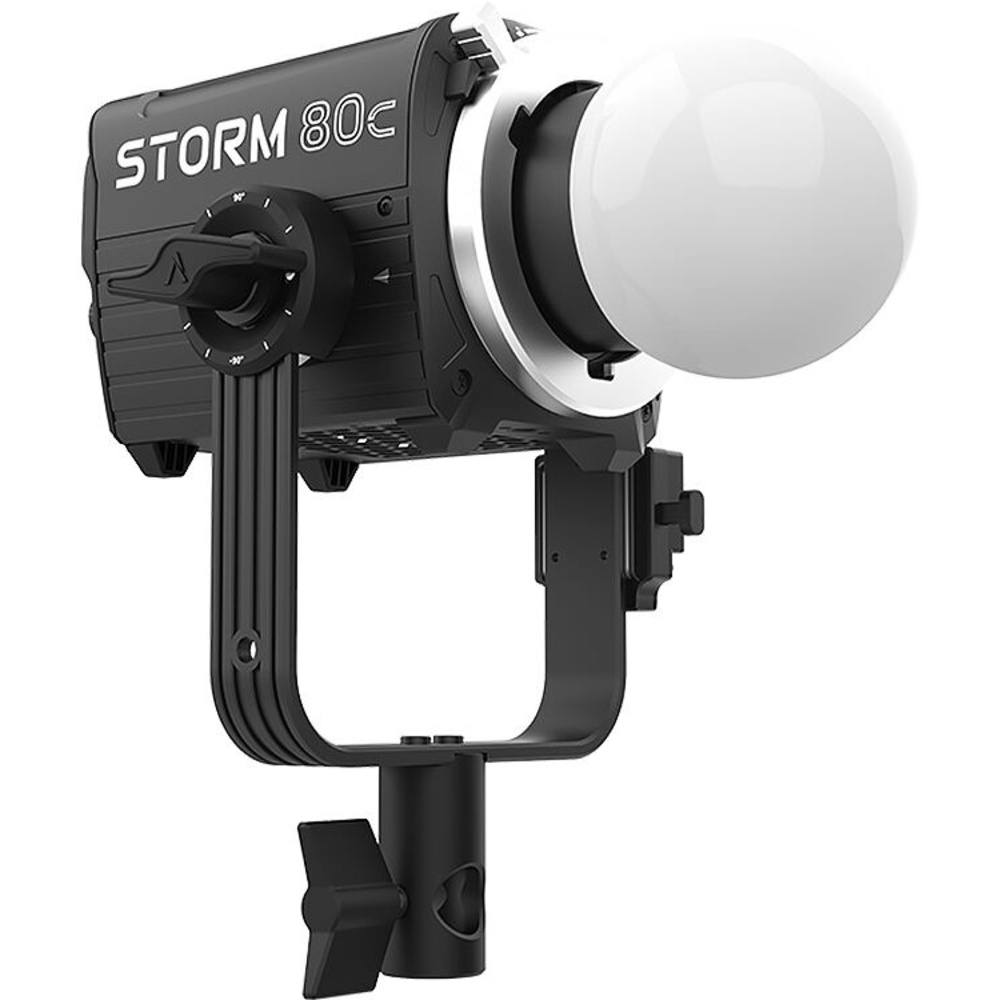

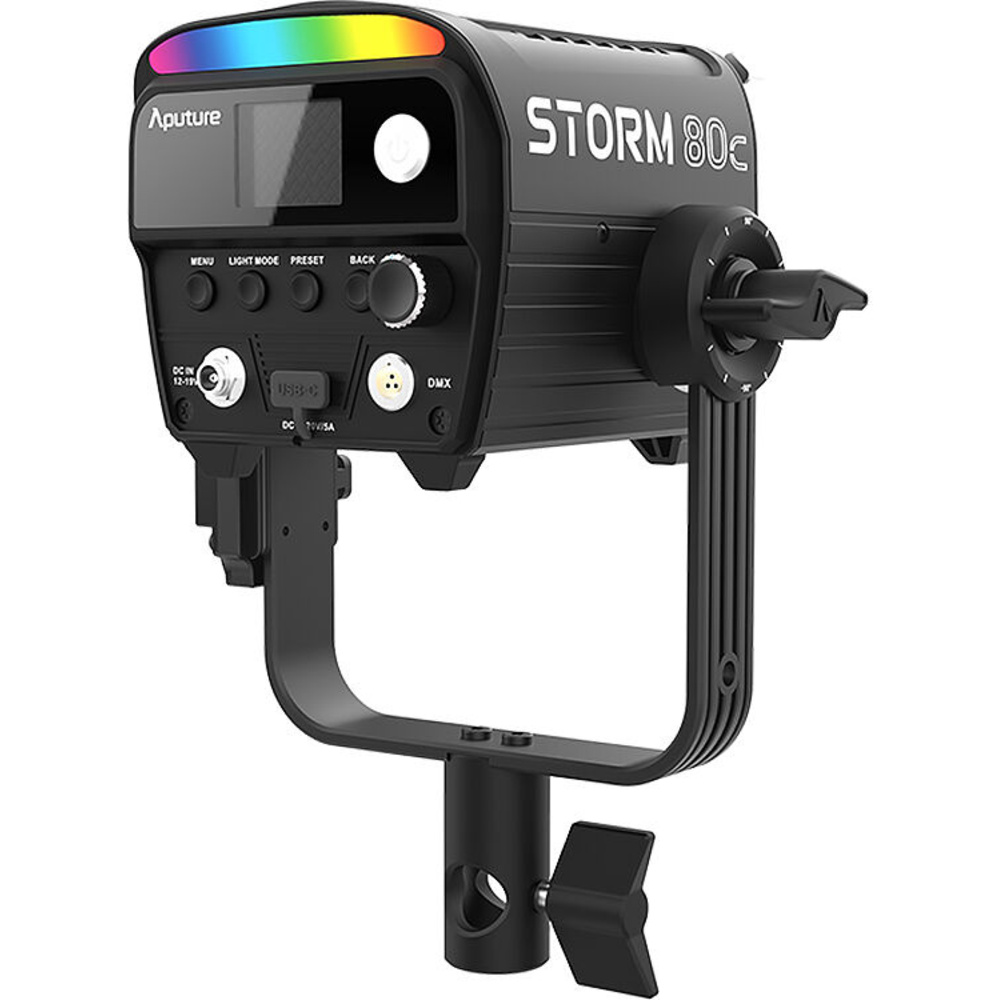

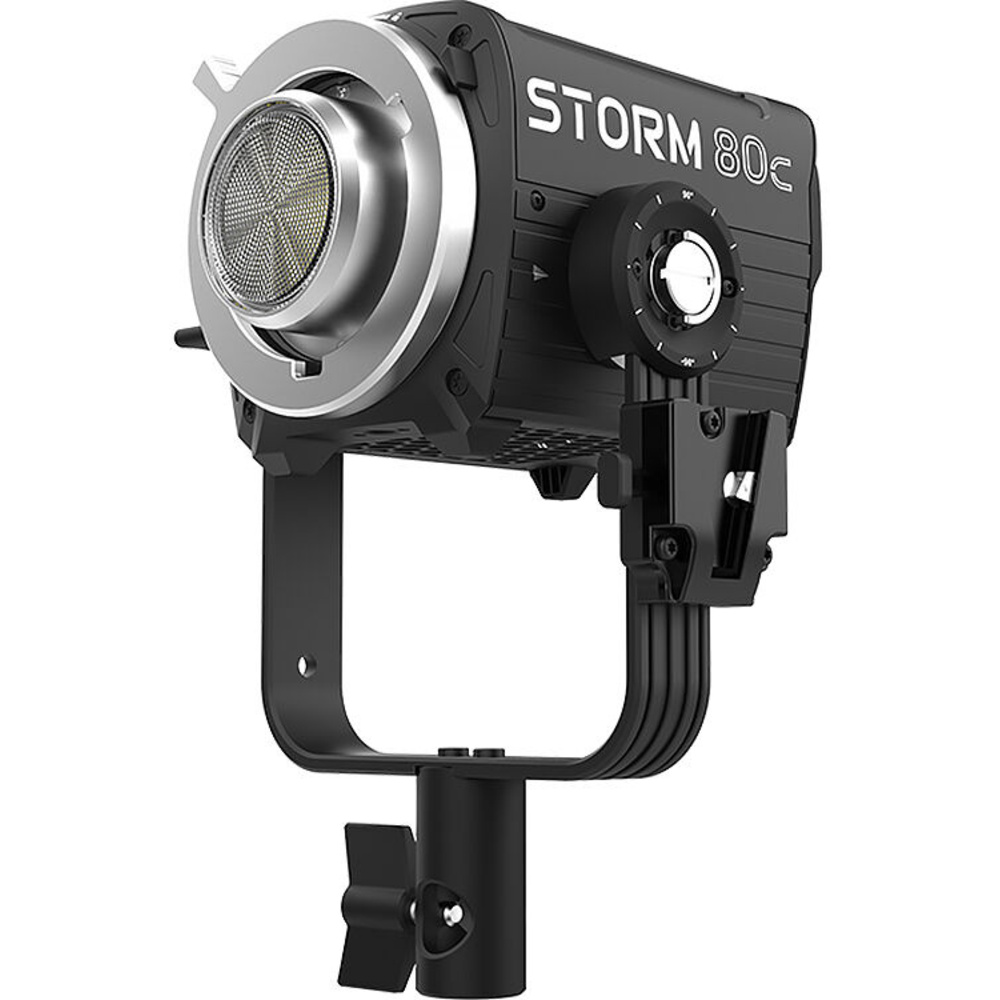

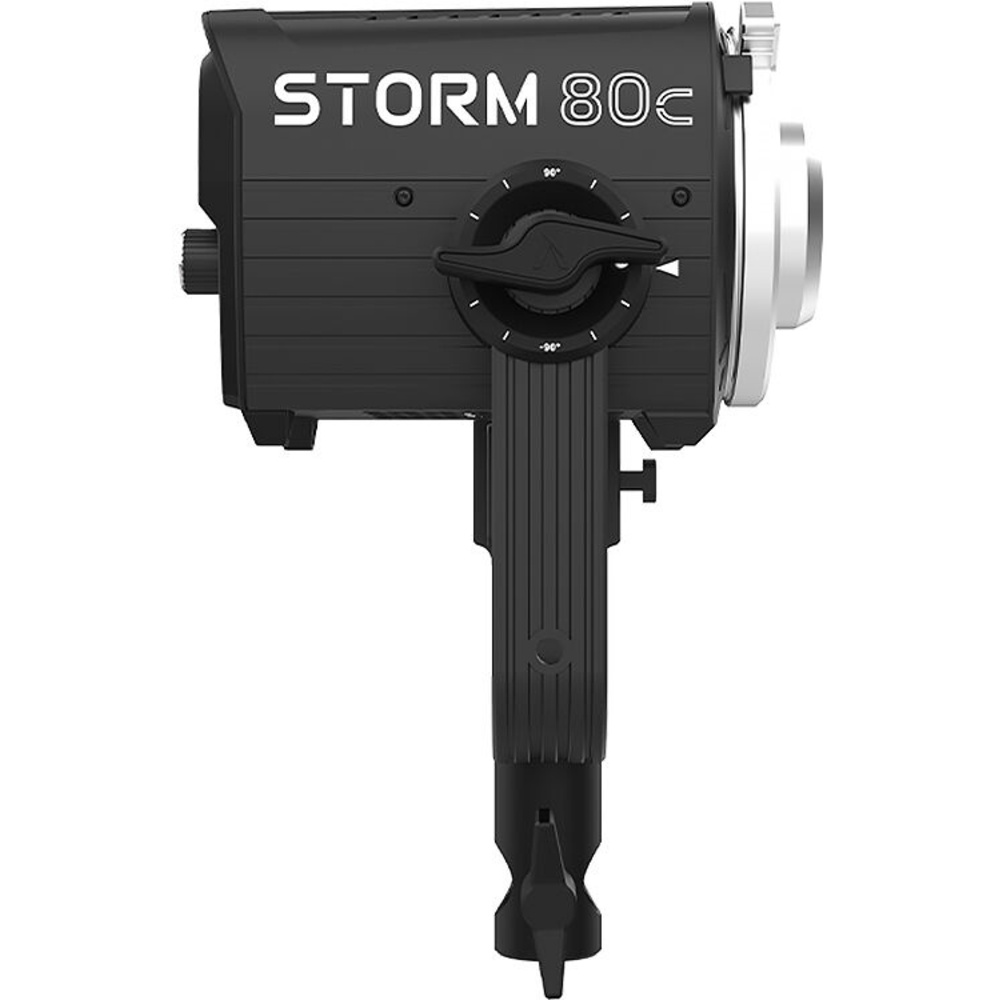

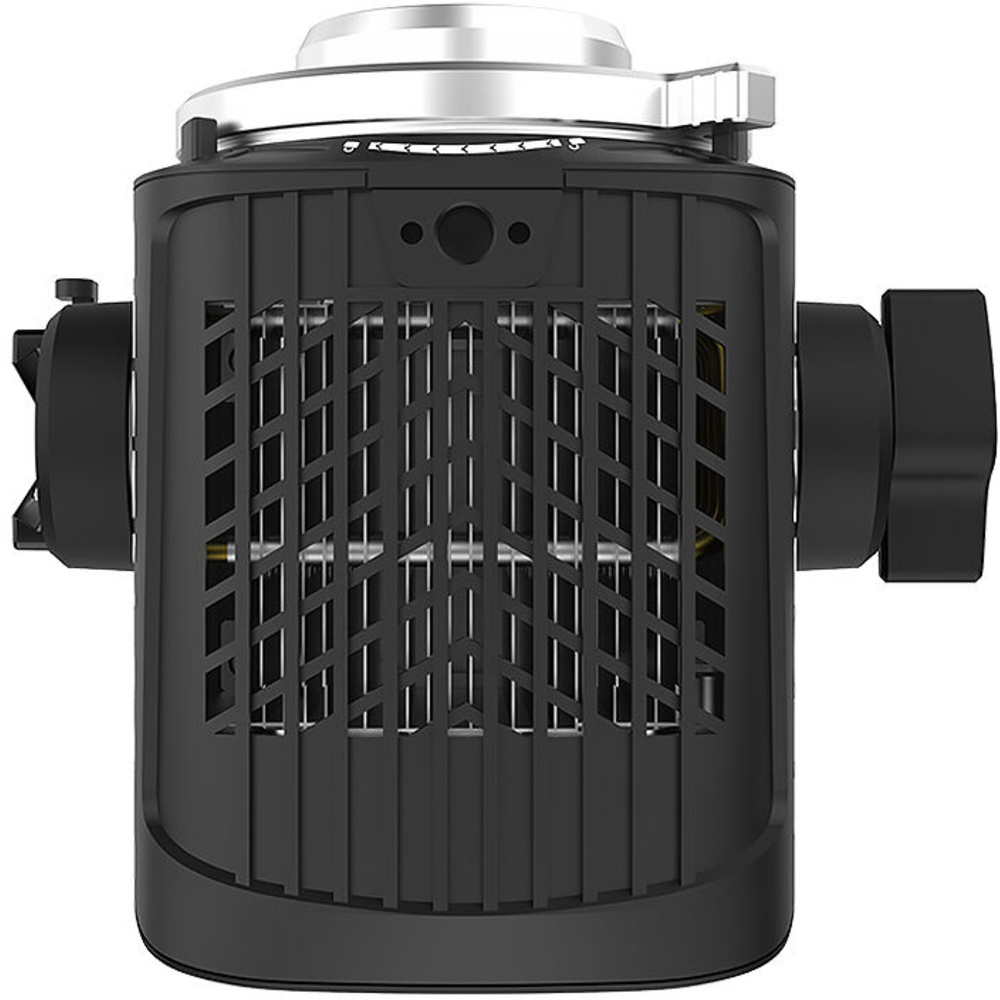

- 3x Aputure Storm 80c LED Monolight

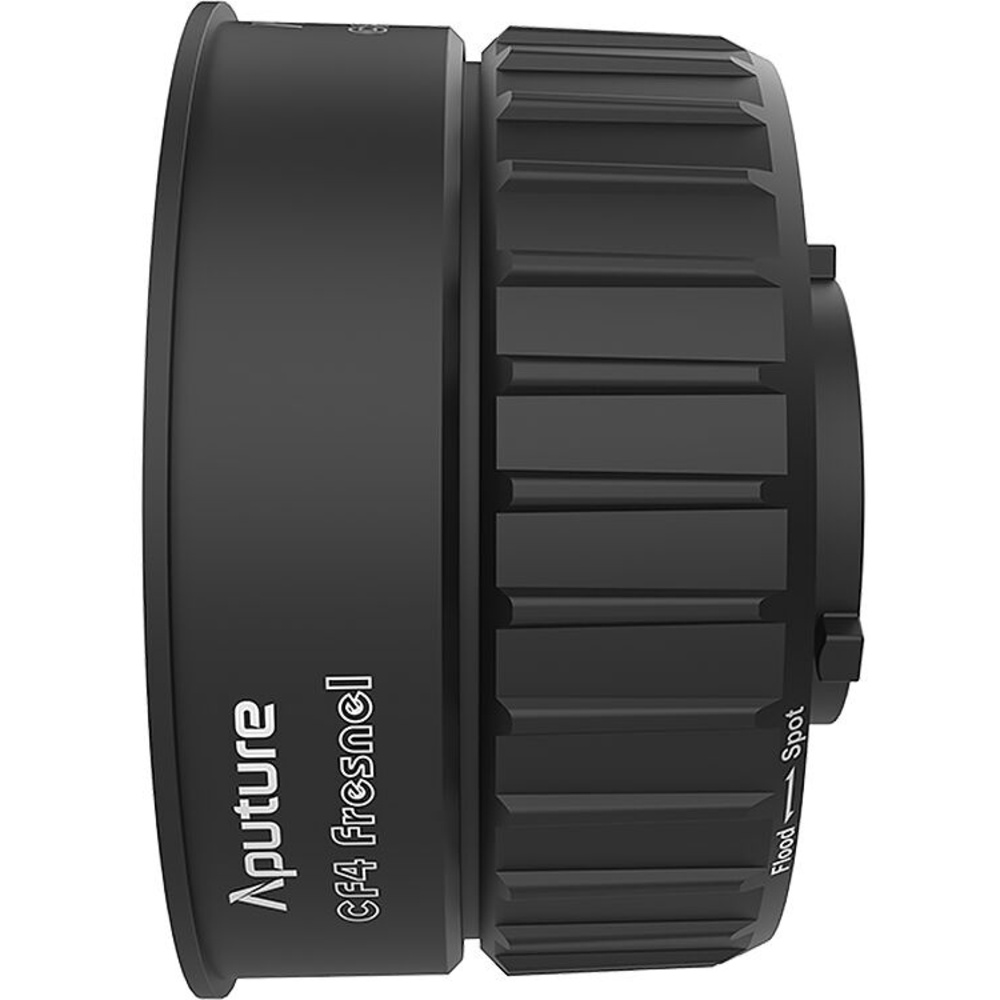

- 2x Aputure CF4 Fresnel for STORM 80c

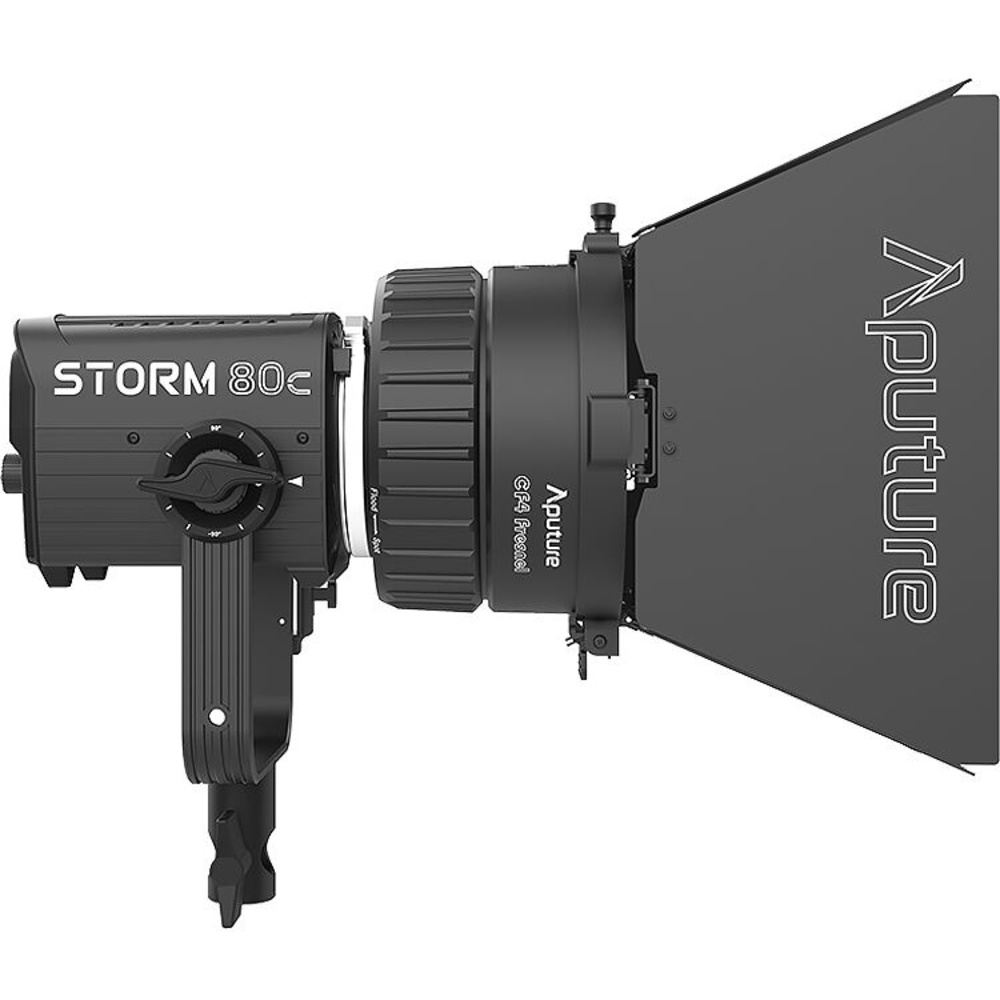

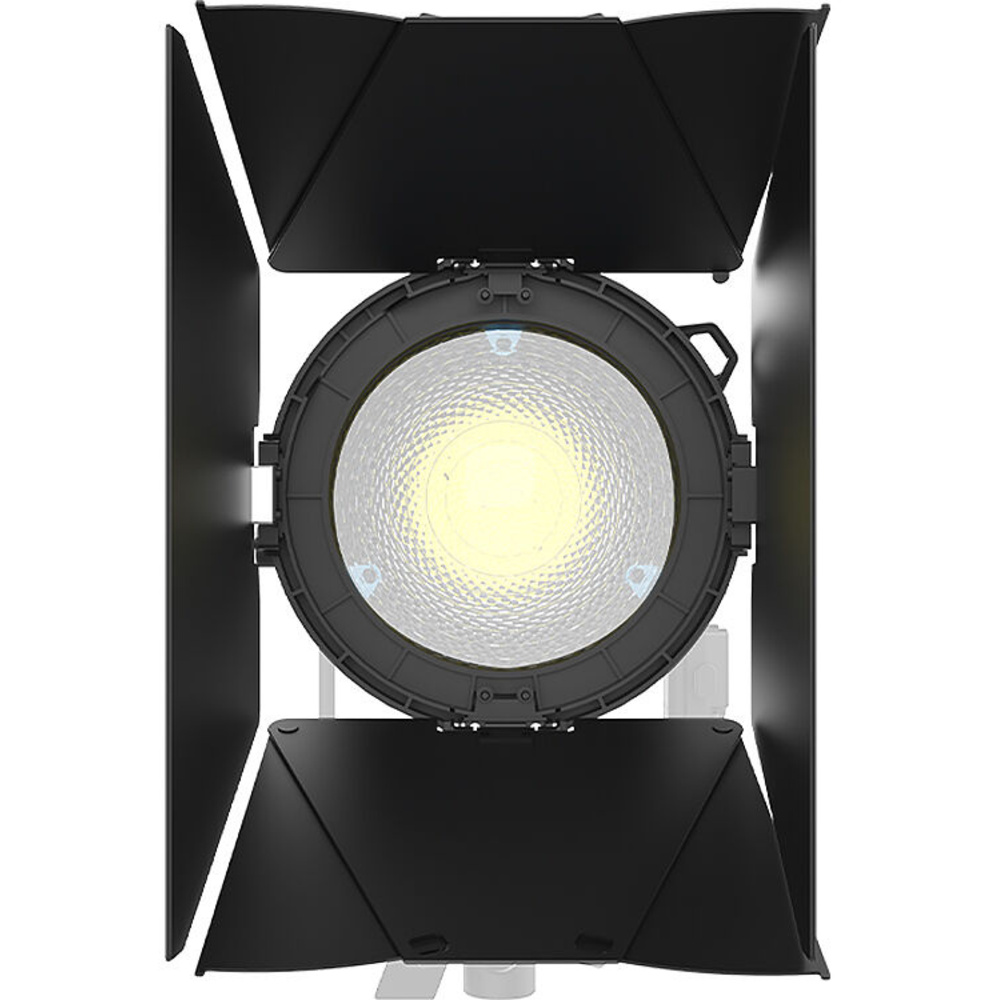

- 2x Aputure Barndoors for CF4 Fresnel

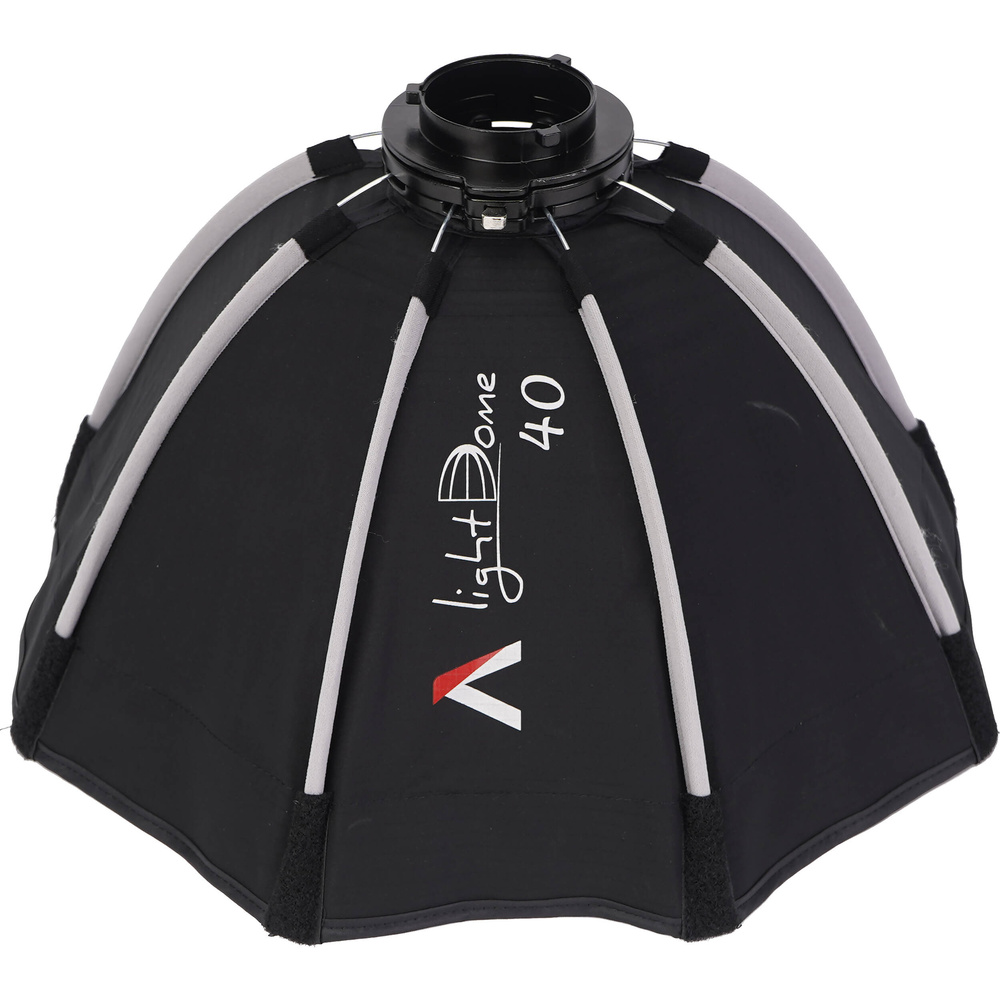

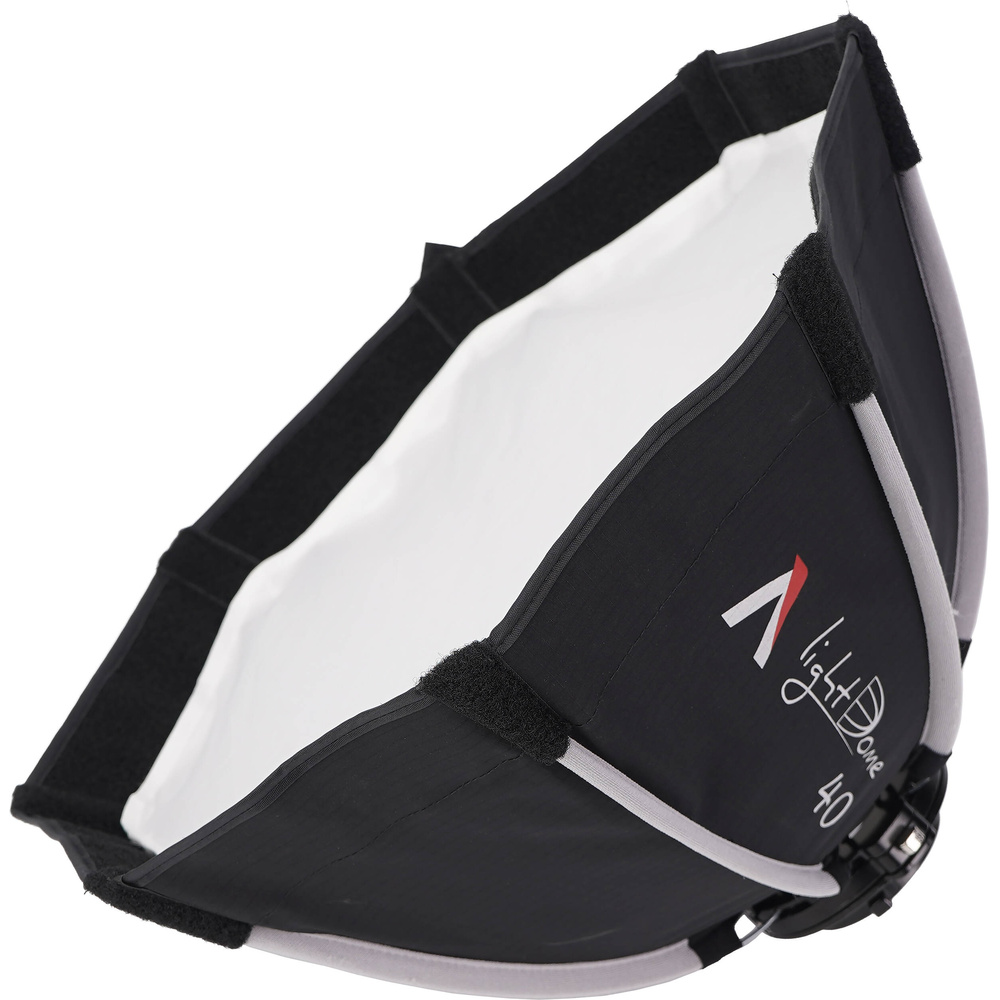

- Aputure Light Dome 40 with Grid for STORM 80c (15.7")
- Aputure Handheld Bracket with V-Mount and D-Tap Cable for STORM 80c

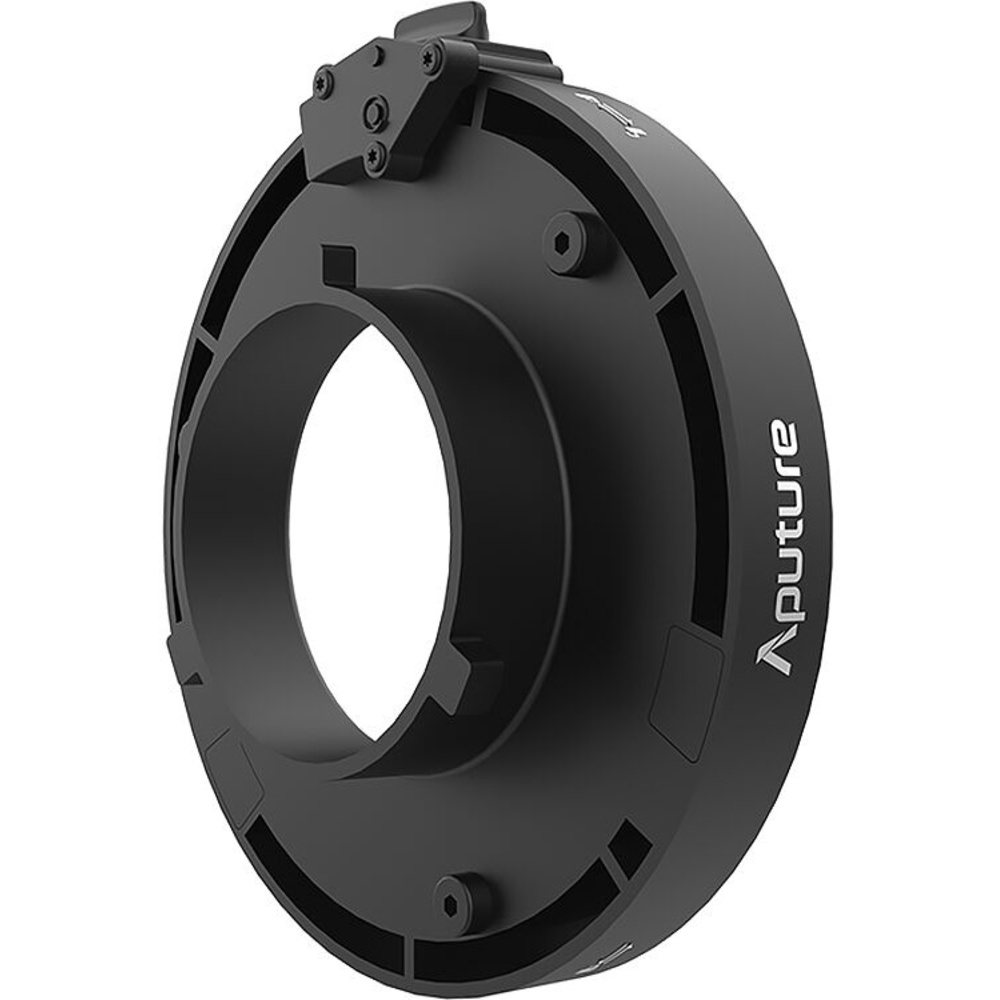

- Aputure Mini ProLock to Bowens Mount Adapter for STORM 80c Monolight

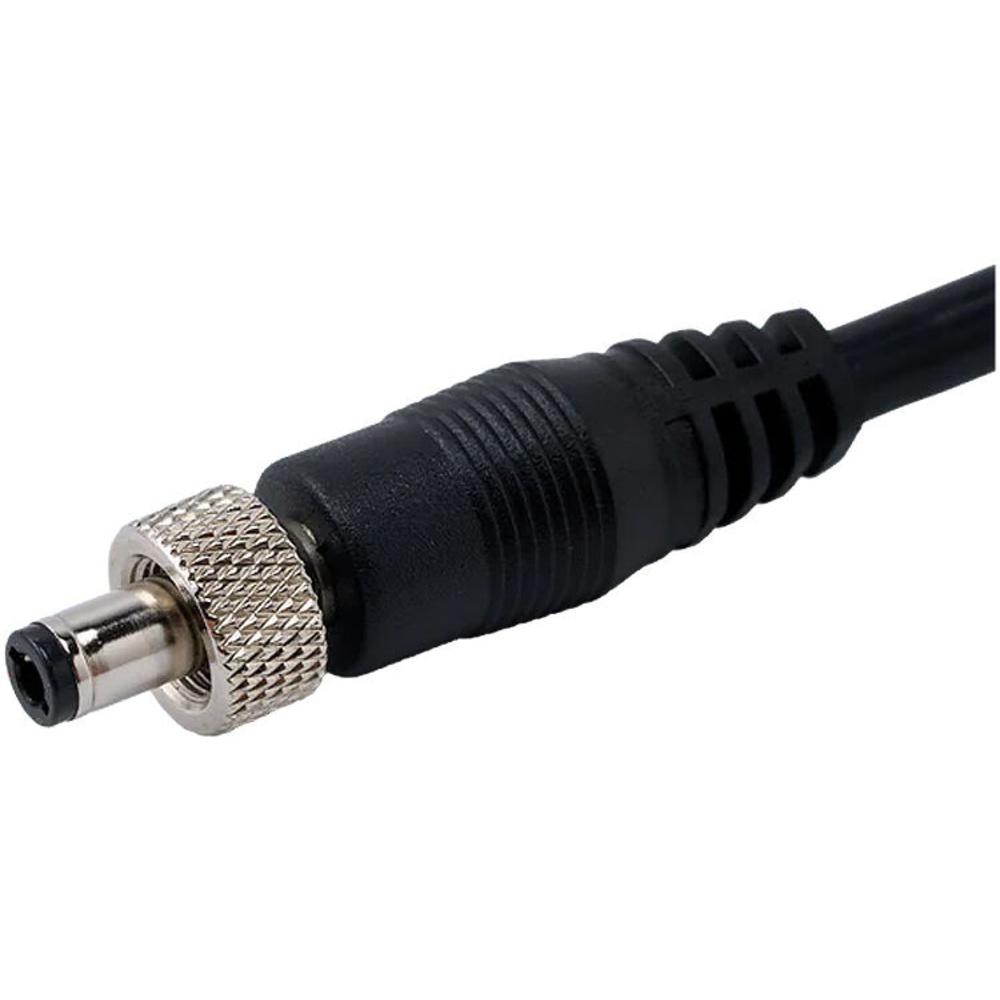

- 3x Aputure D-Tap to Locking 5.5mm DC Barrel Power Cable for STORM 80c

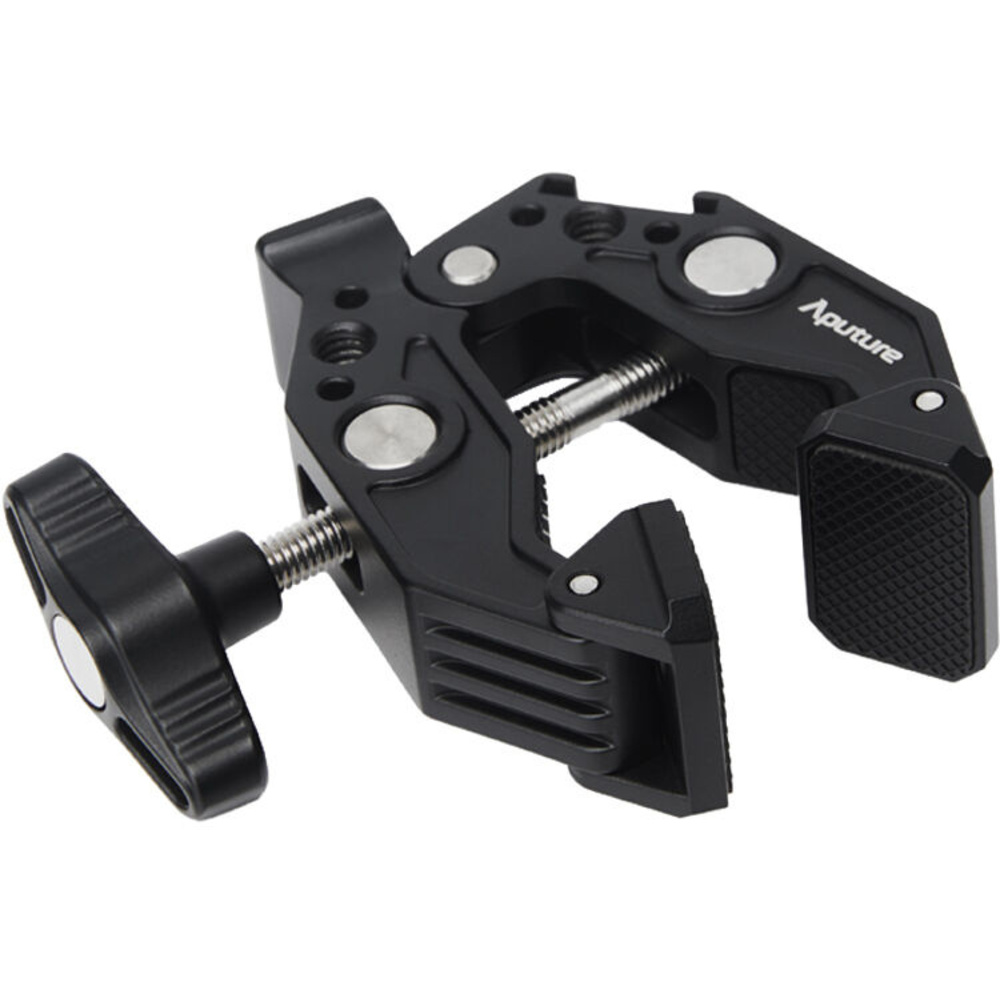

- 3x Aputure Super Clamp with T-Handle
- 3x Aputure Universal Magic Arm
