Decimator
3 products. Prices from $139.95 to $775.95, including GST. 1 ship within 1-2 business days.
Decimator Design states that its products are designed and manufactured in Sydney, Australia, and its range centres on compact converters between HDMI and SDI video. From Decimator we stock the MD-LX bi-directional converter, the MD-HX cross converter with scaling and frame rate conversion, and the 12G-CROSS 4K cross converter. They suit broadcast, live production, streaming and AV crews.
Showing all 3 results
-
DecimatorDECIMATOR MD-LX HDMI/SDI Bi-Directional Converter
$139.95 incl. GST Ships in 1-2 weeksAdd to cart -
DecimatorDECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion
$382.95 incl. GST Ships in 1-2 business daysAdd to cart -

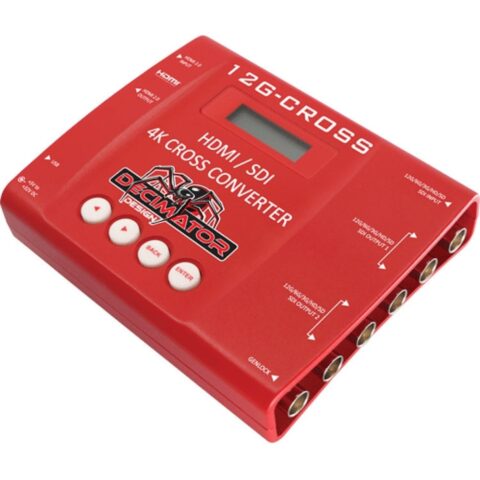

DecimatorDECIMATOR 12G-CROSS 4K HDMI/SDI Cross Converter
$775.95 incl. GST Ships in 1-2 weeksAdd to cart
Shop Decimator by category
About Decimator
The MD-LX converts between HDMI and 3G-SDI in either direction, with four routing modes and USB for power, control and firmware updates. The MD-HX takes HDMI or SDI in and feeds four SDI outputs, so it can also act as a one-to-four distribution amplifier, with a 2K scaler and LCD controls in a fanless aluminium case. The 12G-CROSS steps up to 4K, with HDMI and 12G-SDI inputs, four SDI outputs plus HDMI, a 4K scaler and a test pattern generator.
Start with the highest resolution and frame rate you need. For HD work where you only need to convert one way or the other, the MD-LX covers it. If sources and destinations run different formats, or you need to feed several SDI devices, the MD-HX's scaler and extra outputs help. For 4K over single-link 12G-SDI, choose the 12G-CROSS. Check that cameras, switchers and monitors support the SDI standard in use, since a single 3G-SDI link cannot carry 4K. Decimator publishes a 36 month warranty from purchase.
Decimator questions
Can the Decimator MD-HX convert frame rates?
Yes. The MD-HX is a cross converter with a 2K scaler that handles scaling and frame rate conversion across a wide range of input and output formats. Settings are made through its LCD and buttons, so you can set it up on location without a computer.
Do I need a 12G-SDI converter for 4K?
For 4K over a single SDI cable, yes. 12G-SDI carries 4K on one link, while a single 3G-SDI link tops out at HD formats up to 1080p. The 12G-CROSS converts 4K HDMI and 12G-SDI and can scale for HD equipment where needed.
Where are Decimator converters made?
Decimator Design states its products are designed and manufactured in Sydney, Australia. The company publishes a 36 month warranty from the date of purchase, and models such as the MD-LX take firmware updates over USB.
