Description

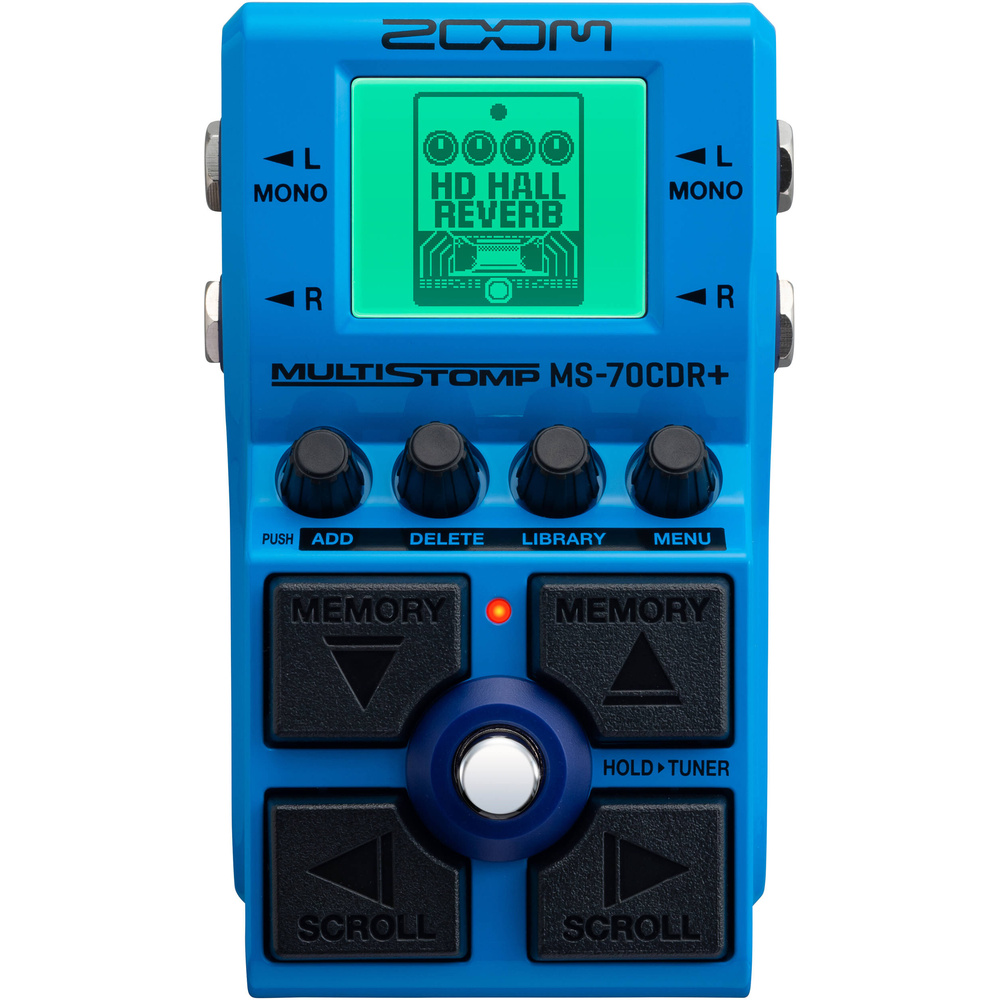

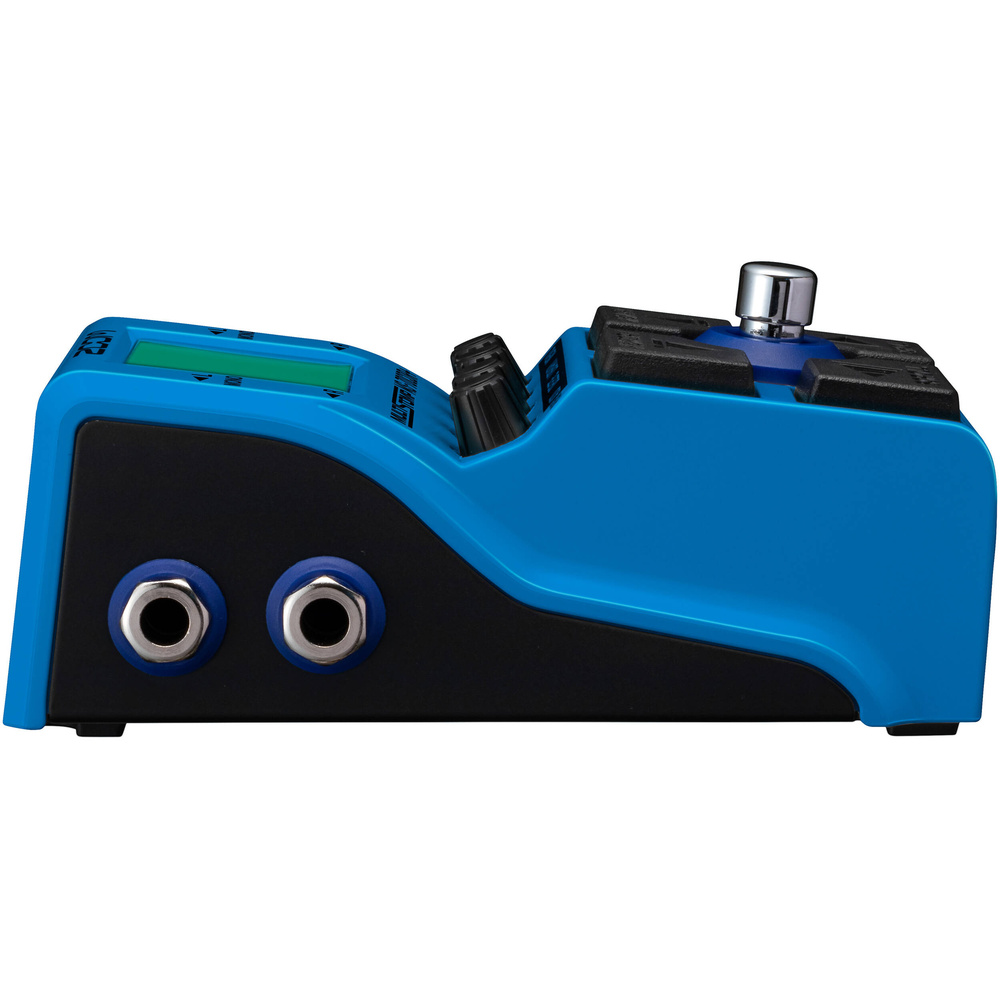

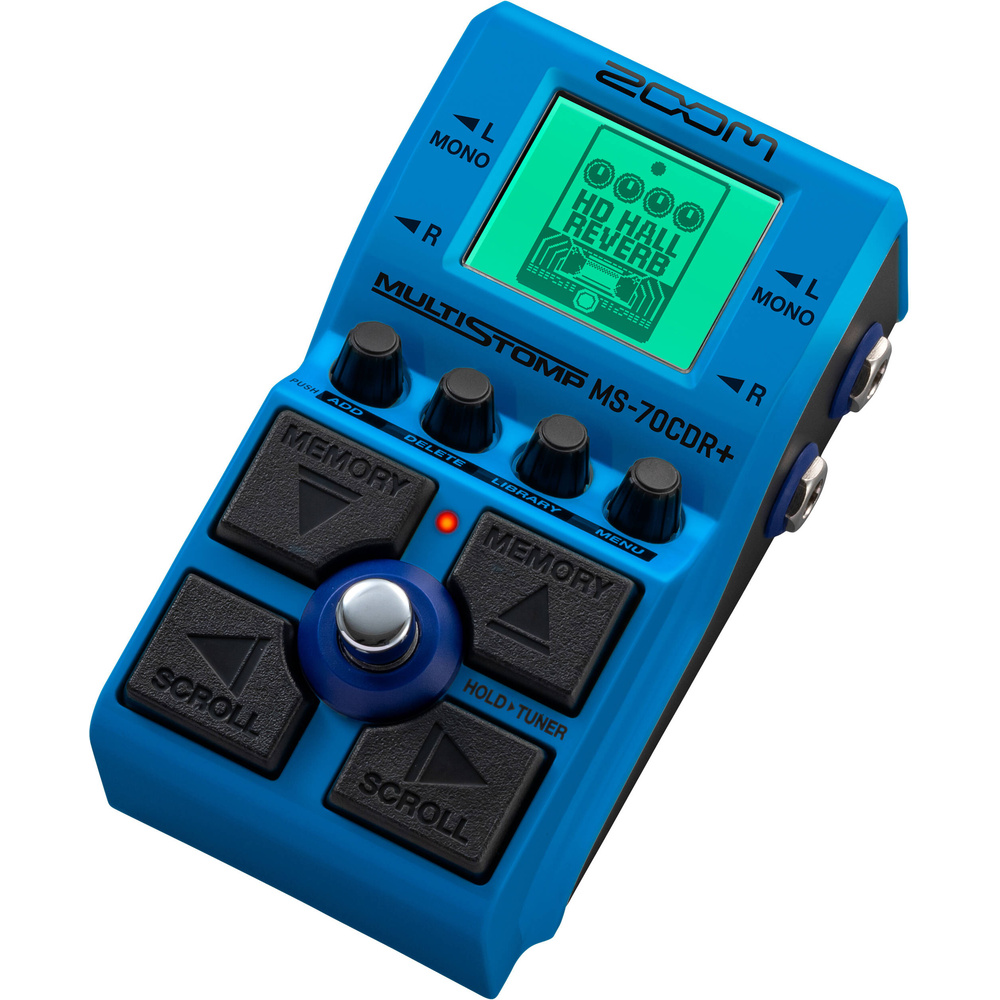

The Zoom MS-70CDR+ Multi-FX Pedal sits in our Pedals range.
Highlights include 149 Spatial FX, 43 chorus, 29 delays, and 33 reverbs, 44 dynamics and filter FX, stack up to 6 simultaneous FX and 80 presets and 100 user patches.
Key specifications: frequency response 20 Hz to 20 kHz (±0.5 dB, 10-Kilohm Load); battery type 2x AA; dimensions 5.2 x 3.1 x 2.4" / 13.3 x 7.9 x 6.1 cm; resolution 160 x 128; material of construction Metal.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| General | |
|---|---|
| Frequency Response | 20 Hz to 20 kHz (±0.5 dB, 10-Kilohm Load) |
| Sampling Rate | 44.1 kHz |
| DSP | 32-Bit |
| A/D Conversion | 24-Bit 128x Oversampling |
| Audio D/A Convertor | 24-Bit 128x Oversampling |
| Input Impedance | 470 Kilohms (Line) |
| Maximum Output Level | 7.2 dBu |
| S/N Ratio | 122 dB |
| Noise Floor | -100 dBu |
| Display | |
| Panel Type | LCD |
| Resolution | 160 x 128 |
| Touchscreen | No |
| Inputs / Outputs | |
| USB I/O | 1 x USB-C 2.0 Female Input/Output |
| Audio I/O | 2x 1/4" TS Hi-Z/Instrument/Line Input (1 Stereo Pair) 2x 1/4" TS Line Output (1 Stereo Pair) |
| Wireless | |
| Mobile App Compatible | Yes: iOS Only App Name: Handy Guitar Lab |
| Power | |
| Power Source | AC Adapter with Power Brick, Battery, USB |
| Battery Type | 2x AA |
| DC Input Power | 9 VDC at 500 mA |
| Operating Current | 500 mA |
| Environmental | |
| Environmental Protection | No |
| Physical | |
| Colour | Blue |
| Material of Construction | Metal |
| Dimensions | 5.2 x 3.1 x 2.4" / 13.3 x 7.9 x 6.1 cm |
| Weight | 13 oz / 368 g (Excluding Batteries) 14.6 oz / 415 g (Including Batteries) |
In the box
- Zoom MS-70CDR+ Multi-FX Pedal
Reviews
There are no reviews yet.
