Description

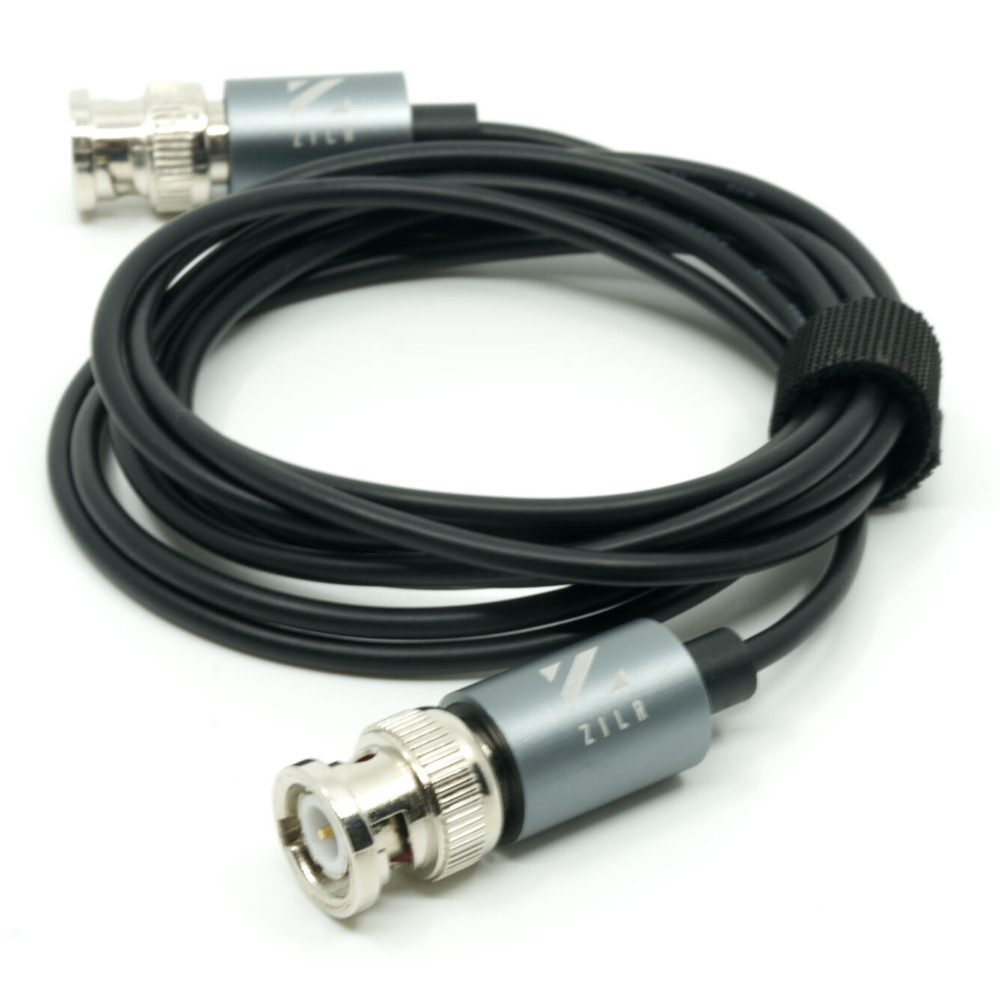

The ZILR 12G-SDI BNC-to-BNC Cable (2m) sits in our BNC Cables range.
Highlights include supports 4K60 hz, up to 4096 x 2160, supports 12G-/6G-/3G-/HD-/SD-SDI and RG-6 coaxial cable, 28 AWG wire gauge.
Key specifications: connector type BNC to BNC; cable connector BNC Male; length meters 2 m; length feet 6.6 ft; signal type 12G-SDI.
Also available in other length meters options: 0.45 m, 1 m. In the box: ZILR 12G-SDI BNC-to-BNC Cable (6.6') and pouch. Manufacturer model number ZRSDI03.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Connector Type | BNC to BNC |
|---|---|
| Signal Type | 12G-SDI |
| Cable Length | 6.6' / 2 m |
| Shielding | 85% Copper Braid |
| Wire Gauge | 28 AWG |
| Outer Diameter | 0.1" / 3 mm |
| Coaxial Type | RG-6 |
| Insulation Type | Polyethylene |
| Maximum Impedance | 75 Ohms |
Product details
| Length Meters | 2 m |
|---|---|
| Length Feet | 6.6 ft |
| Cable Connector | BNC Male |
| Connector count | 2 |
In the box
- ZILR 12G-SDI BNC-to-BNC Cable (6.6')
- Pouch
