Description

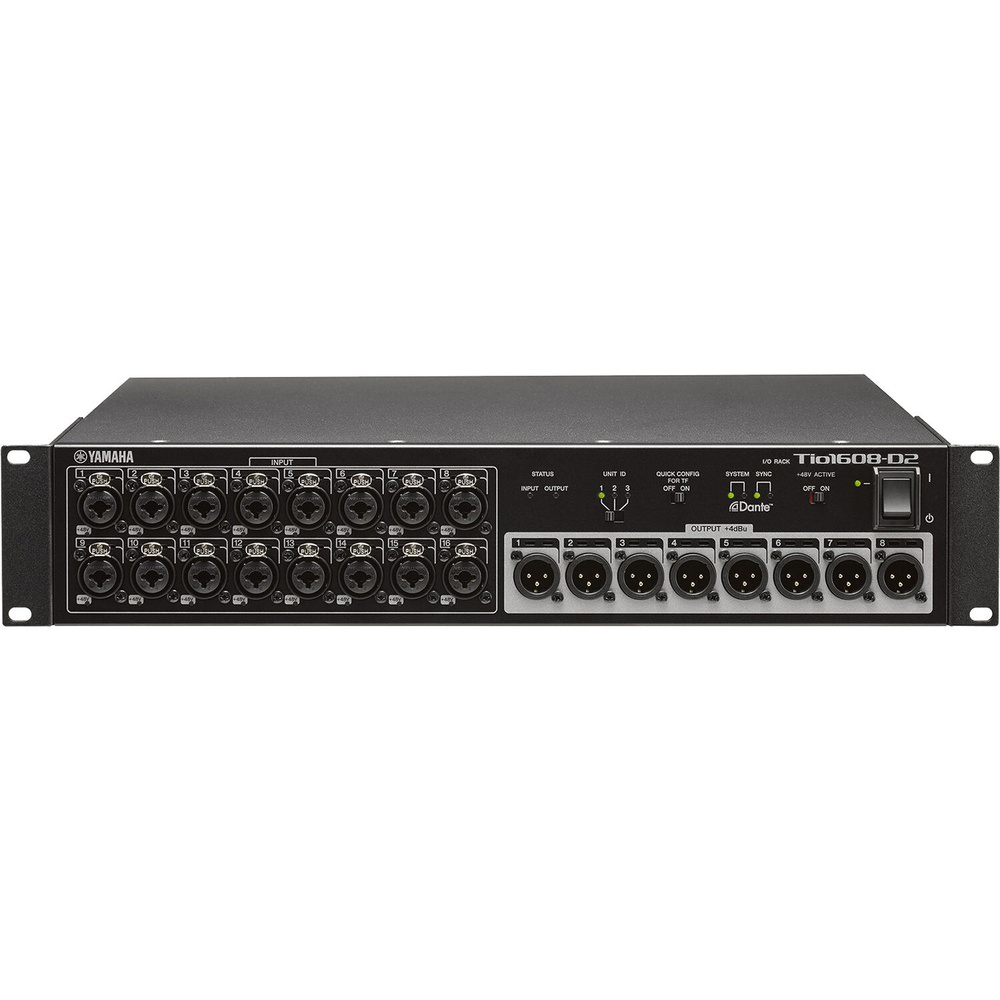

The Yamaha Tio1608-D2 Dante-Equipped I/O Rack sits in our Multicore & Stage Boxes range. Compatible with Yamaha TF / DM3.
Highlights include works remotely with TF series & DM3, cable connection to console via dante, preamp with balanced inputs & outputs, 16 combo XLR-1/4" input jacks and 8 XLR output jacks.
Key specifications: mounting Side: 4x Rackmount; weight 12.6 lb / 5.7 kg; dimensions 18.9 x 14.4 x 3.5" / 48 x 36.6 x 8.9 cm; compatibility Yamaha TF / DM3; material of construction Metal.
In the box: Yamaha Tio1608-D2 dante-equipped I/O rack, Power cord and rubber feet.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| General | |
|---|---|
| Compatibility | Yamaha TF / DM3 |
| Sample Rate | 44.1, 48, 88.2, 96 kHz |
| Latency | <1.3ms Input to Output, Connect with DM3, Dante Receive Latency Set to 0.25 ms (One Way), Fs=96 kHz <2.6 ms Input to Output, Connect with DM3, Dante Receive Latency set to 0.25 ms (One Way), Fs=48 kHz |
| THD | <0.2% +4 dBu at 20 Hz to 20 kHz into 600 Ohms, Gain = +66 dB <0.05% +4 dBu at 20 Hz to 20 kHz into 600 Ohms, Gain = -6 dB, Input to Output, Fs=88.2 kHz, 96 kHz <0.1% +4 dBu 20 Hz to 20 kHz into 600 Ohms, Gain = +66 dB <0.05% +4 dBu 20 Hz to 20 kHz into 600 Ohms, Gain= -6 dB, Input to Output, Fs=44.1 kHz, 48 kHz (Measured with a -18 dB/Octave Filter at 80 kHz) |
| Frequency Response | +0.5, -1.5 dB 20 Hz to 20 kHz, Refer to the Nominal Output Level at 1 kHz, Input to Output |
| Dynamic Range | 108 dB, Input to Output, Gain = -6 dB / 110 dB, DA Convertor, Fs 96 kHz 108 dB, Input to Output, Gain = -6 dB / 112 dB, DA Convertor, Fs 48 kHz |
| EIN | -128 dBu, Gain = +66 dB, Fs 96 kHz, 48 kHz (Measured with A-Weighting Filter) |
| Noise | Residual Output Noise: -86 dBu, Fs 96 kHz / -88 dBu, Fs 48 kHz, ST Main Off (Measured with A-Weighting Filter) |
| Crosstalk | -100 dB, Adjacent Input/Output Channels, Input Gain = -6 dB (Measured with a -30 dB/Octave Filter at 22 kHz) |
| Gain | -6 to +66 dB |
| Impedance | Actual Load Impedance: 7.5 Kilohms Mic Input: 50 to 600 Ohms Line Input: 600 Ohms Actual Source: 75 Ohms Line Output: 600 Ohms |
| Input Level | Sensitivity Mic: -82 dBu (61.6 μV) Line: +10 dBu (245 mV) Nominal Mic: -62 dBu (0.616 mV) Line: +10 dBu (2.45 V) Max Before Clipping Mic: -42 dBu (6.16 mV) Line: +30 dBu (24.5 V) |
| Output Level | Nominal: +4 dBu (1.23 V) Maximum Before Clipping: +24 dBu (12.3 V) |
| Inputs / Outputs | |
| Audio I/O | 16x Combo XLR-1/4" 3-Pin Line/Mic Input 8x XLR 3-Pin Line Output |
| Digital I/O | Dante: 2 x etherCON Cat 5e (Primary and Secondary) Data Length: 24- or 32-Bit Level: 1000Base-T Audio: 16 Channels (Tio1608-D2 to Other Devices) 8 Channels (Other Devices to Tio1608-D2) |
| Power | |
| Power Source | AC Input (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 50 W |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Physical | |
| Mounting | Side: 4x Rackmount |
| Colour | Black |
| Material of Construction | Metal |
| Cable Length | Not Specified by Manufacturer |
| Dimensions | 18.9 x 14.4 x 3.5" / 48 x 36.6 x 8.9 cm |
| Weight | 12.6 lb / 5.7 kg |
In the box
- Yamaha Tio1608-D2 Dante-Equipped I/O Rack
- Power Cord
- Rubber Feet
