Description

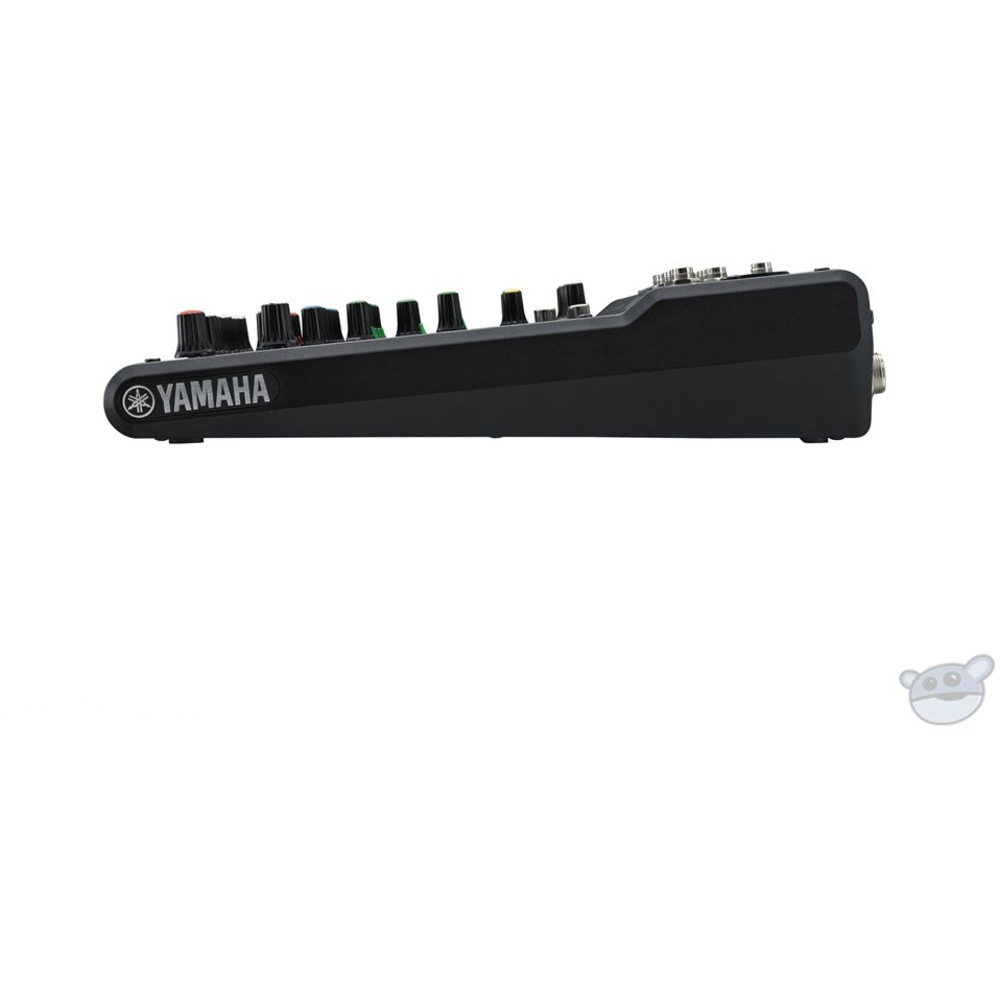

The Yamaha MG10 - 10-Input Mixer is a small format mixer.
Highlights include 4 x Mic/Line combo inputs, 6 x 1/4" line inputs, XLR and TRS 1/4" stereo outs, TRS Monitor outs and 1 x aux send.
Key specifications: dimensions 244 x 71 x 294 mm; phantom power +48 V switchable, channels 1 - 4; input channels 4x mono [mic/line] 3x stereo [line]; bus Stereo: 1 AUX[FX]: 1; pad 26 dB (mono channels).
In the box: Yamaha MG10 - 10-Input mixer and AC Adaptor.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Phantom Power | +48 V switchable, channels 1 - 4 |
|---|---|
| Input Channels | 4x mono [mic/line] 3x stereo [line] |
| Output Channels | 2x stereo out 1x monitor out 1x headphone out 1x aux out |
| Bus | Stereo: 1 AUX[FX]: 1 |
| Pad | 26 dB (mono channels) |
| HPF | 80 Hz, 12 dB/oct (mono channels) |
| Compressor | Threshold: +22 dBu to -8 dBu Ratio: 1:1 to 4:1 Output level: 0 dB to 7 dB Attack time: approx. 25 msec Release time: approx. 300 msec |
| Equaliser | AEQ high gain: +15 dB/-15 dB, Frequency: 10 kHz shelving AEQ mid gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking AEQ low gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| LED | Peak LED turns on when post AEQ signal reaches 3 dB below clipping |
| Level Metering | 2 x 7-segment LED metre [PEAK, +10, +6, 0, -6, -10, -20 dB] |
| Total Harmonic Distortion | 0.02% @ +14 dBu (20 Hz to 20 kHz), GAIN knob: Min, 0.003% @ +24 dBu (1 kHz), GAIN knob: min |
| Frequency Response | +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: min |
| Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 Ω, GAIN knob: max) |
| Residual Output Noise | -102 dBu (STEREO OUT, STEREO LEVEL knob: min) |
| Crosstalk | -83 dB |
| Power Requirement | PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| Power Consumption | 22.9 W |
| Dimensions | 244 x 71 x 294 mm |
| Nett Weight | 1.9 kg |
In the box
- Yamaha MG10 - 10-Input Mixer
- AC Adaptor
