Description

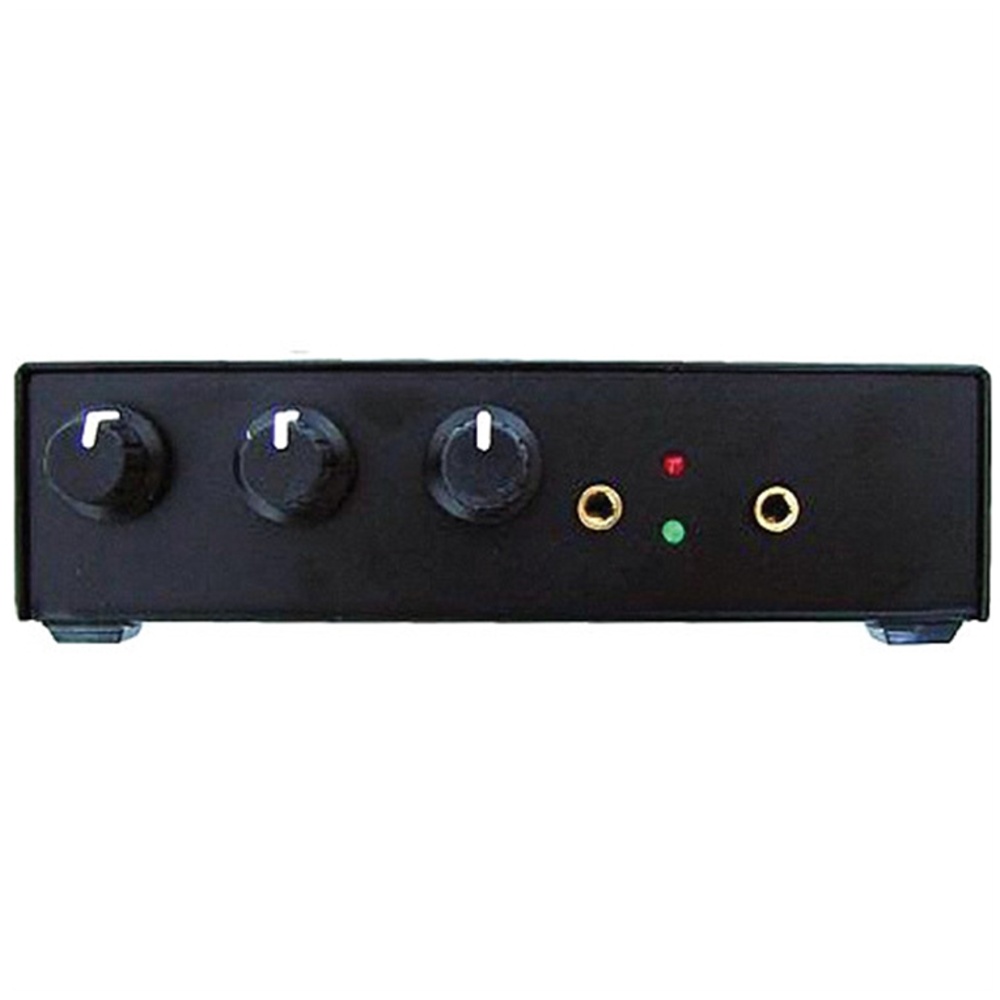

The Rolls MX310 MorMics 3-Channel Mic Mixer/Combiner is a small format mixer.
Highlights include metal chassis, 3 XLR mic inputs and 1 output, individual level controls, phantom Power and low cut filters.
Key specifications: weight 0.45 kg; dimensions (WxDxH) 5.25 x 3.75 x 1.5" (133 x 95 x 38 mm); indicators 1 x Green Power LED 1 x Red Clip LED; bandwidth 20 Hz - 20 kHz; input impedance 600 Ohms.
In the box: Rolls MX310 MorMics 3-Channel mic Mixer/Combiner, installation mounts and Power supply.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Connectors | 3 x XLR Mic Inputs 1 x XLR Mic/Line Output 1 x 3.5 mm Input 1 x 3.5 mm Output |
|---|---|
| Controls | 3 x Level Controls 6 x Phantom/Low Cut Switches 1 x Mic/Line Output Selector |
| Indicators | 1 x Green Power LED 1 x Red Clip LED |
| Bandwidth | 20 Hz - 20 kHz |
| Input Impedance | 600 Ohms |
| Output Impedance | 600 Ohms |
| Total Harmonic Distortion (THD) | 0.05% Typical |
| Voltage Gain | 50dB Line, 10 dB Mic |
| Power Supply Voltage | 16 VDC Max (12 VDC Power Supply Included) |
| Dimensions (WxDxH) | 5.25 x 3.75 x 1.5" (133 x 95 x 38 mm) |
| Weight | 0.45 kg |
In the box
- Rolls MX310 MorMics 3-Channel Mic Mixer/Combiner
- Installation Mounts
- Power Supply
