Description

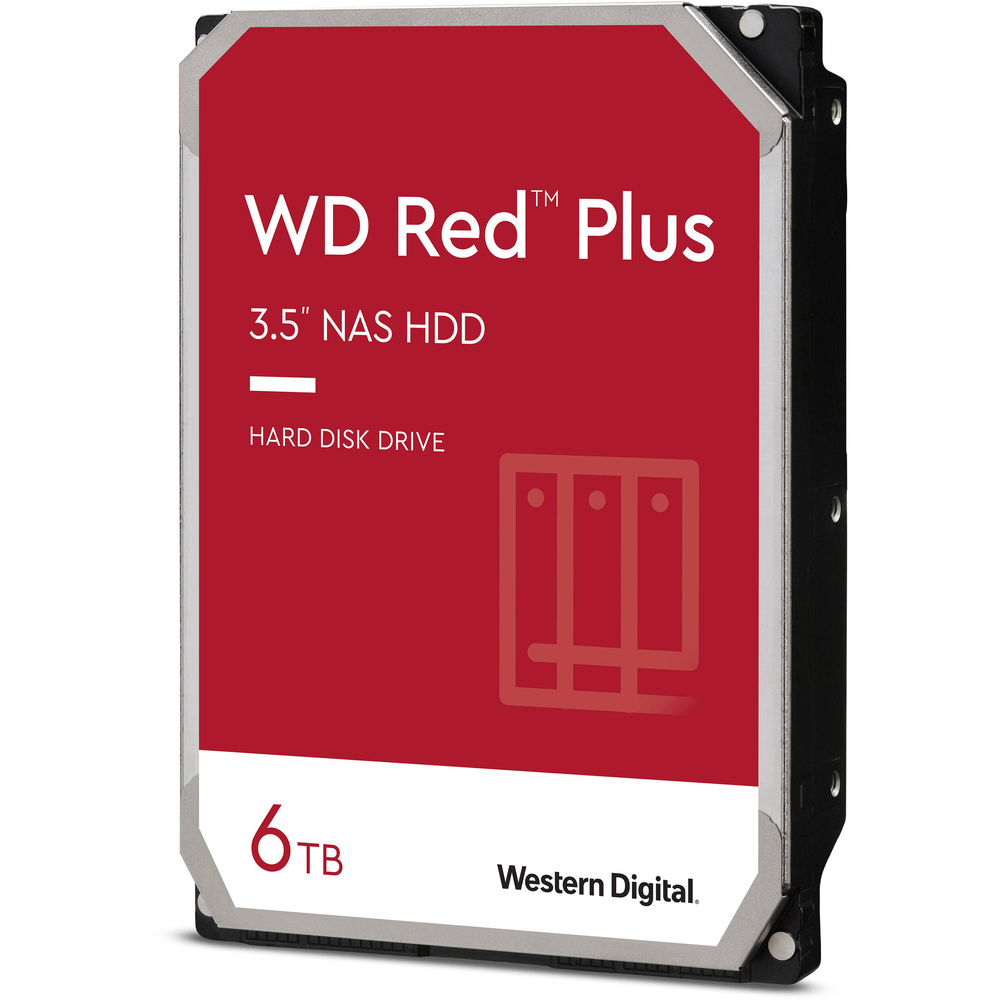

The Western Digital WD60EFPX Red Plus is a 6TB 3.5-inch internal hard drive for NAS systems. It suits users who need a storage drive for shared files, media libraries or backup duties in a multi-bay setup. It is a mechanical HDD with a SATA III connection and is aimed at steady, always-on storage use.
It offers 6TB capacity, a 256MB cache and sustained transfer rates up to 180MB/s. The drive spins at 5400rpm and is rated for 600,000 load and unload cycles. Noise is listed at 30.0dB during active use and 25.0dB when idle. Power draw is 4.7W active, 3.1W idle and 0.4W in standby.
In practice, this drive fits into a desktop NAS bay or any system that accepts a 3.5-inch SATA hard drive and needs 5VDC and 12VDC power. It works as internal storage for a networked backup or file-sharing setup. The box includes one WD 6TB WD60EFPX Red Plus SATA III 3.5-inch Internal NAS HDD.
Specifications
| Storage Capacity | 6 TB SATA III (6 Gb/s) 3.5" HDD (5400 rpm) |
|---|---|
| Read Speed | Maximum: 180 MB/s |
| Write Speed | Maximum: 180 MB/s |
| Buffer | 256 MB |
| HDD Specs | |
| Noise Level | 30.0 dB (Active) 25.0 dB (Idle) |
| Reliability / Data Integrity | |
| Encryption | None |
| Endurance (Total Bytes Written) | 180 TB |
| Load/Unload Cycles | 600,000 |
| Mean Time Between Failures (MTBF) | 1.0 Million Hours |
| Non-Recoverable Read Errors per Bits Read | 1 in 10 14 |
| Electrical | |
| Power Draw | 4.7 W (Active) 3.1 W (Idle) 0.4 W (Standby) |
| Supported Voltage | 5 VDC, 12 VDC |
| Current | 1.75 A at 12 VDC |
| Environmental | |
| Operating Temperature | 32 to 149°F / 0 to 65°C |
| Storage Temperature | -40 to 158°F / -40 to 70°C |
| Operating Shock | 70 G / 2.0 ms |
| Storage Shock | 250 G / 2.0 ms |
| General | |
| Certifications | RoHS *as per Manufacturer |
| Dimensions | 5.79 x 4 x 1.02" / 147.07 x 101.6 x 25.91 mm |
| Weight | 1.65 lb / 0.75 kg |
Product details
| Capacity | 6 TB |
|---|
In the box
- WD 6TB WD60EFPX Red Plus SATA III 3.5" Internal NAS HDD
