Description

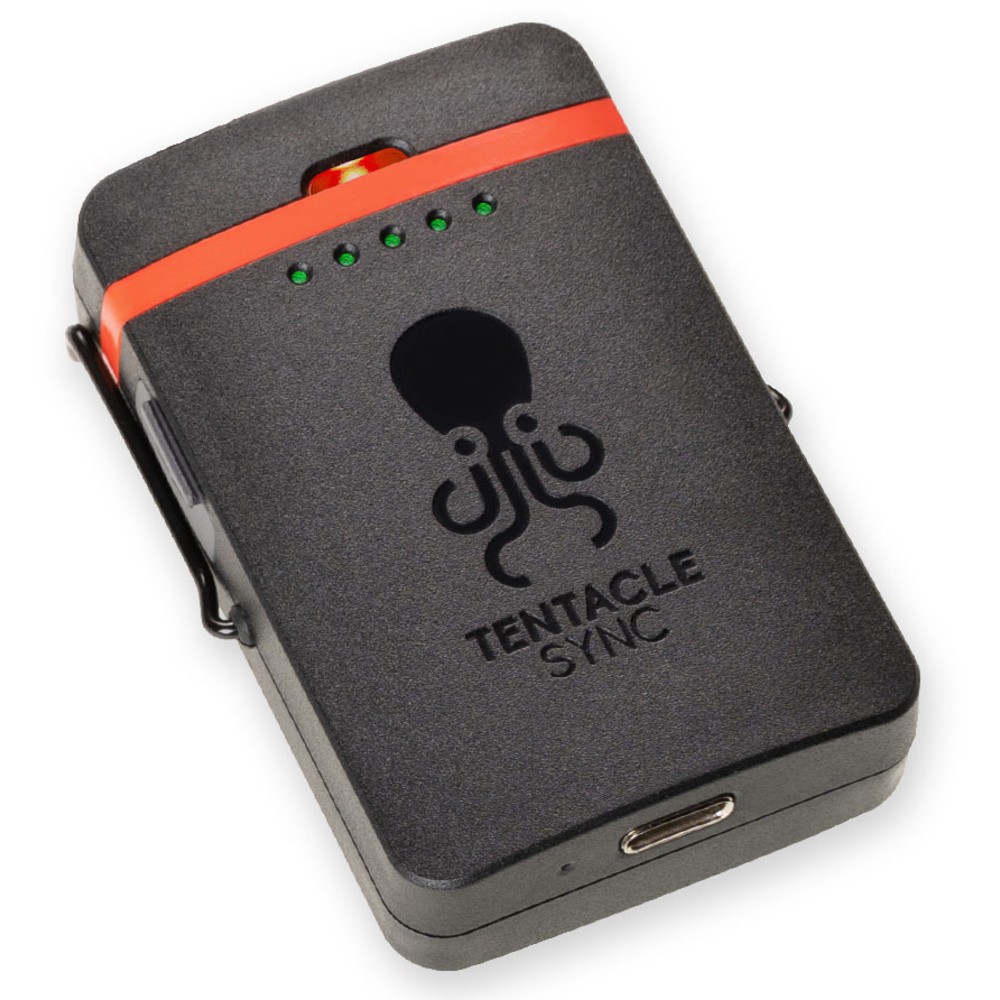

The Tentacle Sync TR1 Track E Timecode Audio Recorder (Basic Box) sits in our Time Code Generators & Readers range.
Highlights include 32-bit float recording / 24-Bit recording, control multiple Devices via Bluetooth® (iOS & Android), wireless timecode Sync (Bluetooth®) / Jam-Sync via cable and up to 10 hours operating time.
Key specifications: frequency response 20 Hz - 20 kHz; battery capacity 900 mAh; number of tracks 1; sampling rate 48 kHz; recording Bit-Depth 32-bit Float / 24-bit.
An external recorder captures higher-quality codecs than many cameras record internally. In the box: 1x Tentacle TRACK E Timecode Audio Recorder, 1 x Belt Clip, 1 x Charging Cable and 1x Software License for Tentacle Sync Studio (macOS). Manufacturer model number TR1-B.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Recording | |
|---|---|
| Number of Tracks | 1 |
| Sampling Rate | 48 kHz |
| Recording Bit-Depth | 32-bit Float / 24-bit |
| Recording File Formats | WAV (BWF) |
| Recording Time | 30hrs (24-bit) / 23hrs (32-bit Float) with 16GB Card |
| Storage Media | microSDHC Card up to 32GB (Recommended Class 10) |
| Signal Processing | Low Cut Filter, Limiter (24-bit only) |
| Connectivity | |
| Microphone Input | 3.5mm Jack (screw lock) |
| Mic Plug-In Power | 5 V (switchable) |
| Headphone Output* | 3.5mm Jack |
| USB Connection | USB-C (USB 2.0) |
| USB Modes: | Charging, Card Reader, Firmware Update |
| Performance | |
| Frequency Response | 20 Hz - 20 kHz |
| Gain Range | +6 to +46 dB |
| Dynamic Range | 110dB typ |
| THD+N | ≤ -85 dB (0,05%) |
| Control & Sync | |
| Bluetooth® | 5.0 |
| Remote Control | Tentacle Setup App (iOS/Android) |
| Synchronization | Via Bluetooth® (Tentacle Setup App) or Jam-Sync via Cable |
| Timecode Input | LTC via Mic In |
| Timecode Output | N/A |
| Frame Rates | SMPTE 12M / 23.98, 24, 25, 29.97, 29.97DF, 30 |
| Power | |
| Power Source | Built-in rechargeable Lithium Polymer Battery |
| Battery Capacity | 900 mAh |
| Battery Operation Time | approx. 10 hrs |
| Battery Charging Time | max. 2 hours |
In the box
- 1x Tentacle TRACK E Timecode Audio Recorder
- 1 x Belt Clip
- 1 x Charging Cable
- 1x Software License for Tentacle Sync Studio (macOS)
