Description

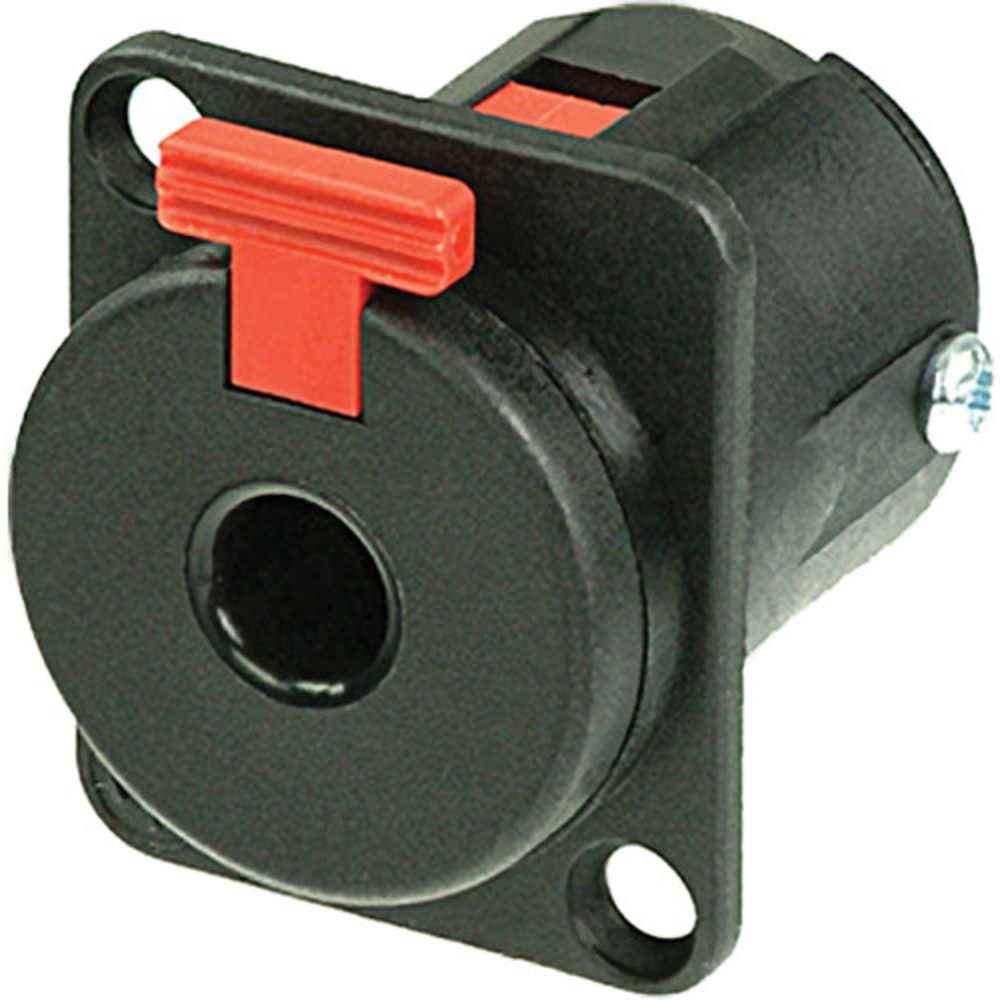

The Neutrik NJ3FP6C-B Locking 1/4" TRS Female Jack - Gold Contacts sits in our TRS Phone Jack range. Compatible with Mates with mono and stereo plugs specified according to EIA RS-453 (A-gauge).
Highlights include locking 1/4 inch phone jack, black metal housing, gold contact plating, solder contacts and latch lock.
Key specifications: mounting direction Front mounting; connection type Jack; product title NJ3FP6C-B; gender female; rated current per contact 10 A.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product title | NJ3FP6C-B |
|---|---|
| Connection type | Jack |
| Gender | female |
| Rated current per contact | 10 A |
| Contact resistance | < 6 mΩ (initial) |
| Dielectric strength | 1 kVdc |
| Insulation resistance | ≥ 1 GΩ @ 500 V dc |
| Insertion force | < 30 N |
| Withdrawal force | < 20 N |
| Lifetime | > 10000 mating cycles |
| Locking force | > 80 N |
| Wire size | 1 mm² / 18 AWG |
| Mounting direction | Front mounting |
| Chassis shape | D |
Product details
| Connection | 1/4" TRS Female |
|---|---|
| Compatible With | Mates with mono and stereo plugs specified according to EIA RS-453 (A-gauge) |
