Description

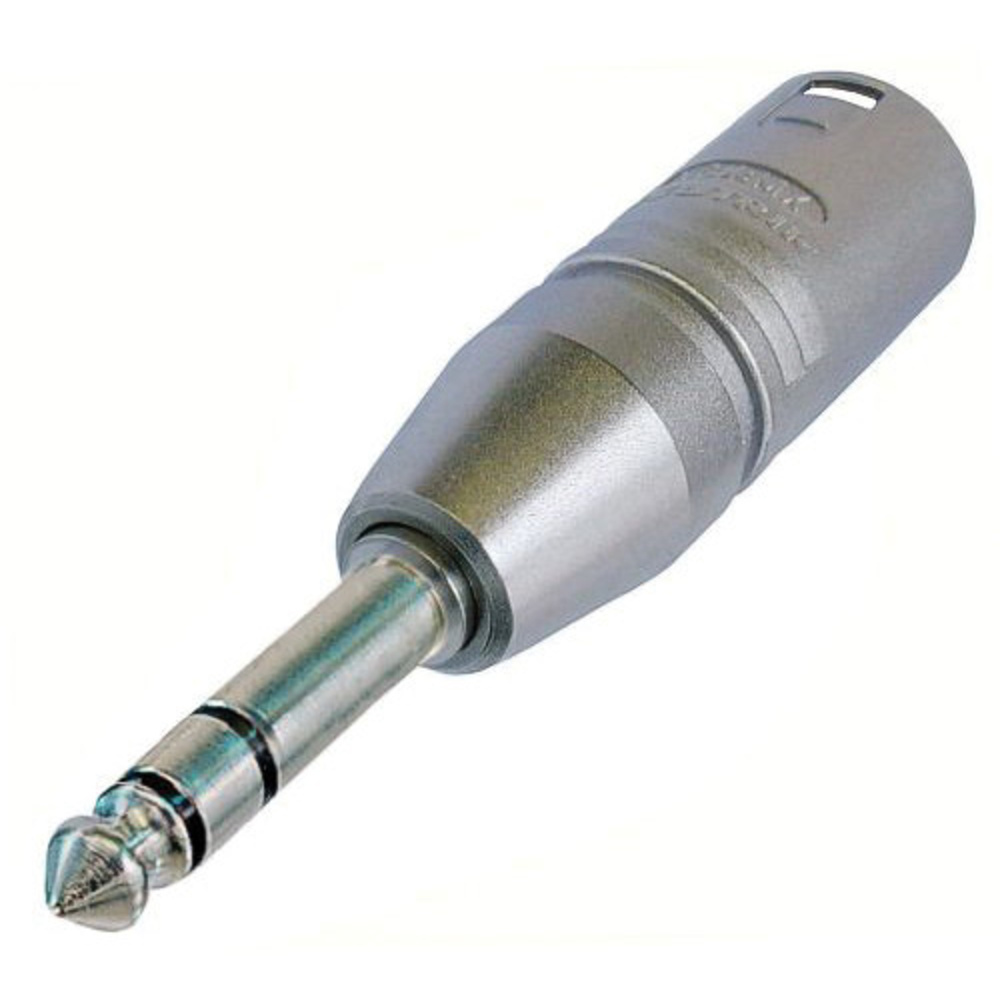

The Neutrik NA3MP 3-Pole XLR Male to Stereo 1/4" Locking Plug Adapter sits in our 3 Pin XLR range. Compatible with 3-pole XLR connections and stereo 1/4 in. plug connections.
Highlights include 3-pole XLR male to stereo 1/4 in. plug adapter, TRS contact configuration, based on Neutrik X series and rugged diecast shell.
Key specifications: connector 1 3-pole XLR; cable connector XLR 3-Pin Male; connection type Adapter; gender male; connector 2 stereo 1/4 in. plug (Tip, Ring, Sleeve contact).
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product | NA3MP |
|---|---|
| Connection type | Adapter |
| Gender | male |
| Connector 1 | 3-pole XLR |
| Connector 2 | stereo 1/4 in. plug (Tip, Ring, Sleeve contact) |
| Contact resistance (XLR) | ≤ 3 mΩ |
| Contact resistance (plug) | ≤ 6 mΩ |
| Dielectric strength | 1.5 kV dc / > 1 kVdc (XLR/Plug) |
| Insulation resistance | > 2 GΩ |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Temperature range | -20 °C to +65 °C |
Product details
| Cable Connector | XLR 3-Pin Male |
|---|---|
| Compatible With | 3-pole XLR connections and stereo 1/4 in. plug connections |
