Description

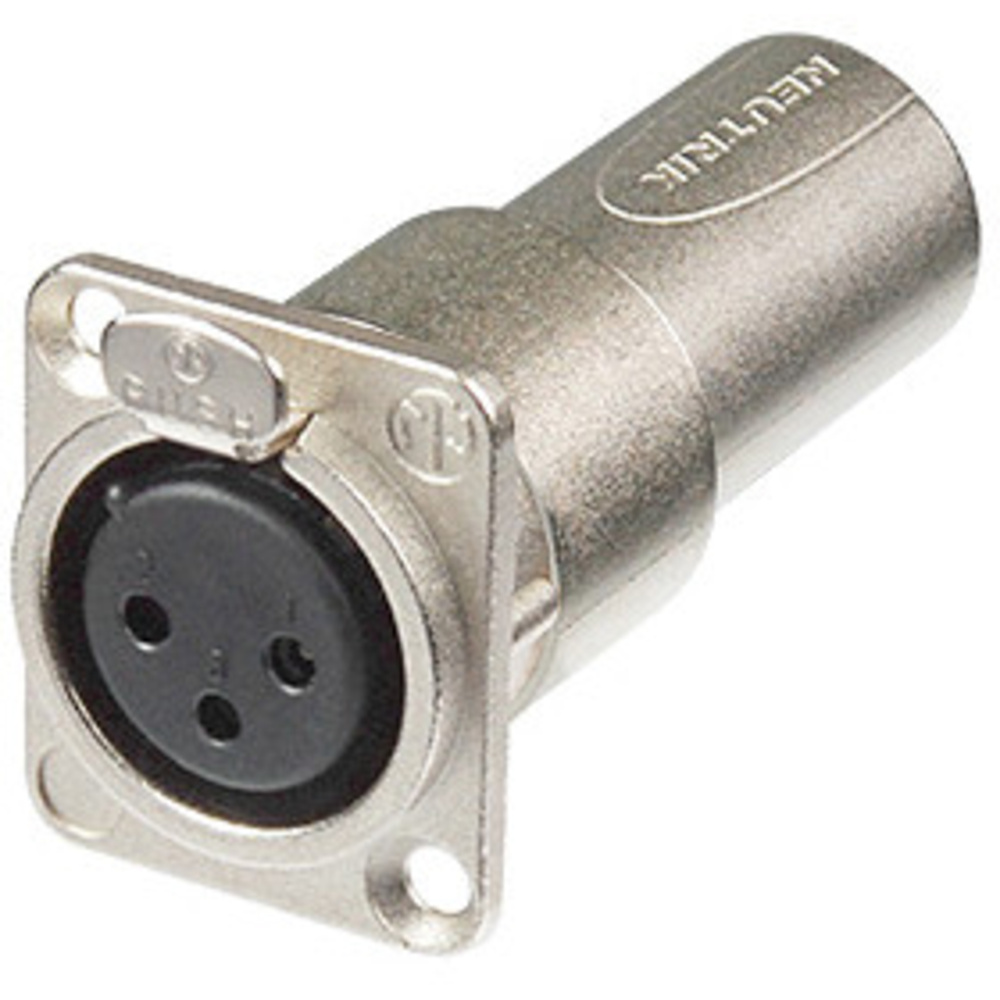

The Neutrik NA3FDM XLR Female-Male Feedthrough Adapter for Panel Mount sits in our 3 Pin XLR range. Designed for Panel Mount. Compatible with IEC 61076-2-103.
Highlights include 3-pin XLR female to XLR male feedthrough, panel mount with D-type chassis shape, solder contacts, latch lock and nickel-plated zinc diecast shell.
Key specifications: cable connector XLR 3-Pin Male; connection type Adapter; compatible with IEC 61076-2-103; rated current per contact 16 A; rated voltage < 50 V.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Product | NA3FDM |
|---|---|
| Connection type | Adapter |
| Type | XLR female-male feedthrough adapter for panel mount |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1.5 kVdc |
| Insulation resistance | > 2 GΩ (initial) |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
Product details
| Cable Connector | XLR 3-Pin Male |
|---|---|
| Compatible With | IEC 61076-2-103 |
