Description

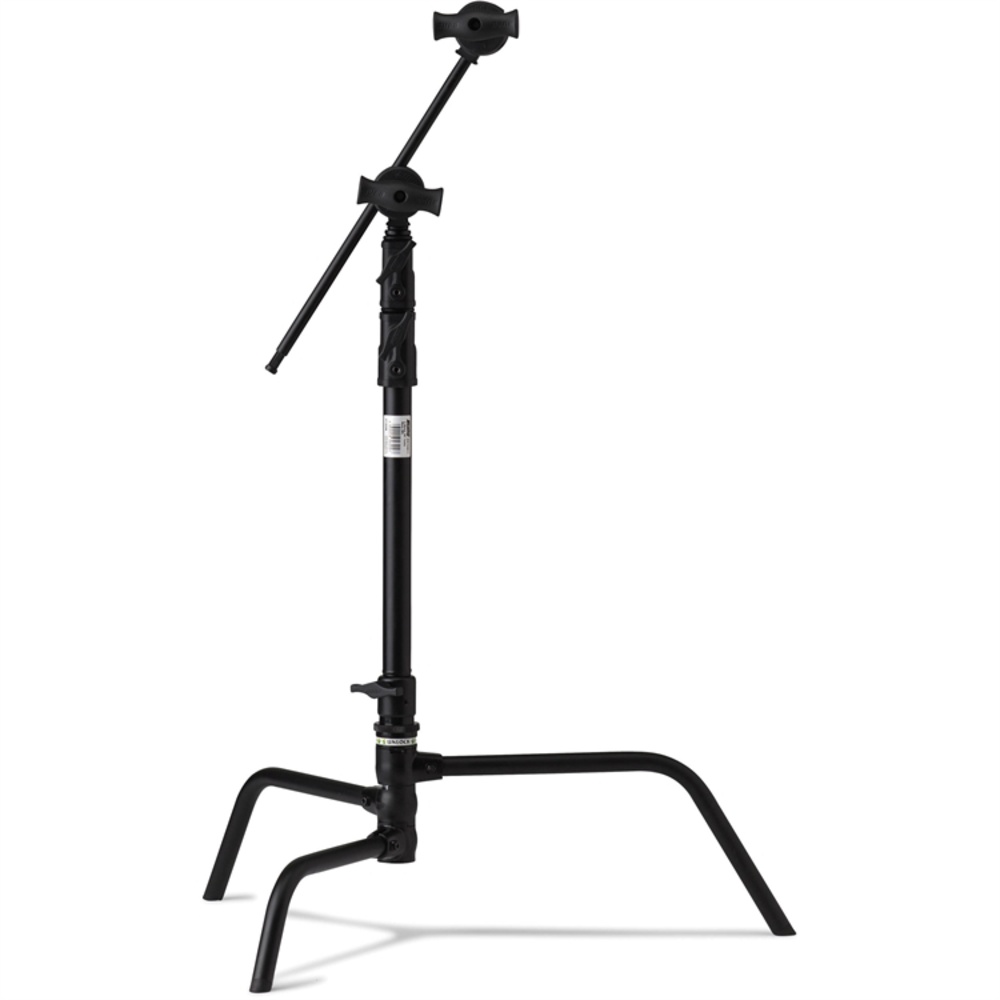

The Kupo CT-20MKB is a black steel C-stand kit with a turtle base, grip arm and grip head. It suits lighting setups that need a stable support for modifiers, reflectors or small fixtures. The removable base makes it easier to pack down and move between locations or sets.
It has a maximum working height of 172 cm and a minimum working height of 92.5 cm, with a closed length of 93 cm. The stand supports up to 10 kg and uses a 5/8 inch stud top mount. It is a three section stand with round legs, a 100 cm footprint and a total weight of 6.2 kg.
In use, it can support a light, arm or grip accessory on the 5/8 inch stud while the 20 inch grip arm and 2.5 inch grip head help position gear. It is suited to studio and location work where a compact C-stand is needed. The kit includes the C-stand with turtle base, 20 inch hex grip arm and 2.5 inch grip head.
Specifications
| Key Specs | |
|---|---|
| Stand Type | 1 x C-Stand |
| Maximum Working Height | 67.7" / 172 cm |
| Minimum Working Height | 36.4" / 92.5 cm |
| Load Capacity | 22.05 lb / 10 kg |
| Stand/Column Top Mount | 5/8" Stud |
| Air Cushioned | No |
| Levelling Leg | No |
| Weight | 13.7 lb / 6.2 kg |
| Closed Length | 36.6" / 93 cm |
| Features | |
| Accepts Second Riser | No |
| Detachable Base | Yes |
| Reverse Legs | No |
| General | |
| Column Diameter | 0.98" / 25 mm 1.18" / 30 mm 1.38" / 35 mm |
| Number of Sections | 3 |
| Footprint Diameter | 39.37" / 100 cm |
| Leg Shape | Round |
| Finish | Black |
| Material | Steel |
| Key Specs | |
| Inputs/Outputs | 1 x 5/8" Receiver |
| Length | 20" / 508 mm |
| Clamp Width | 0.25 to 0.62" / 6.35 to 16 mm |
| Construction Material | Aluminium, Steel |
| Kupo 2-1/2" Grip Head With Big Handle | |
| Number of Heads | Single Grip |
| Bottom Mount | 5/8" Receiver |
| Material | Aluminium, Steel |
| Colour | Black |
| Head Diameter | 2.5" / 6.3 cm |
| Overall Dimensions | 7.38 x 3.92 x 2.79" / 18.73 x 9.96 x 7.08 cm |
| Weight | 1.72 lb / 0.78 kg |
Product details
| Load Capacity | 10.0 kg |
|---|---|
| Maximum Height | 172.0 cm |
| Minimum Height | 92.5 cm |
| Top Mounting Type | 5/8" Stud |
In the box
- Kupo Master C-Stand with Turtle Base (20", Black)
- Kupo 20'' Hex Grip Arm (Black)
- Kupo 2-1/2" Grip Head With Big Handle (Black Powder-Coated Finish)
