Description

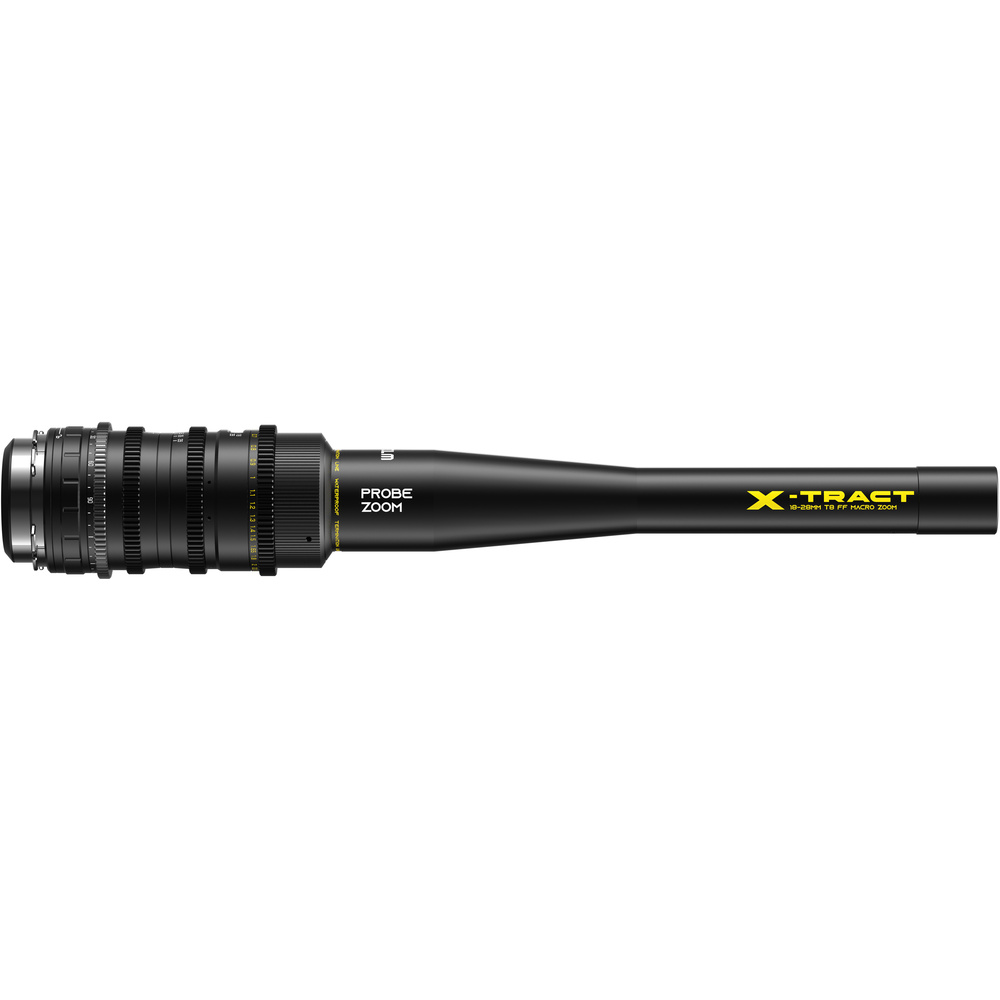

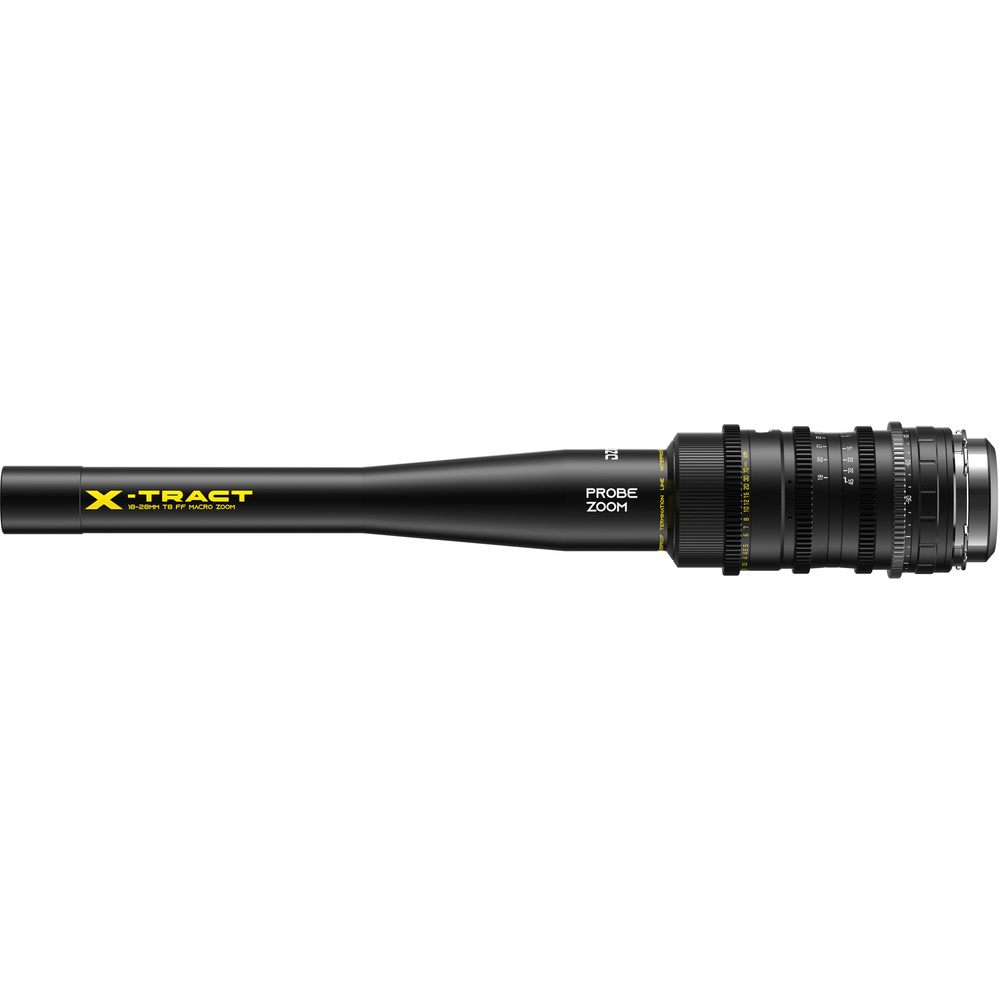

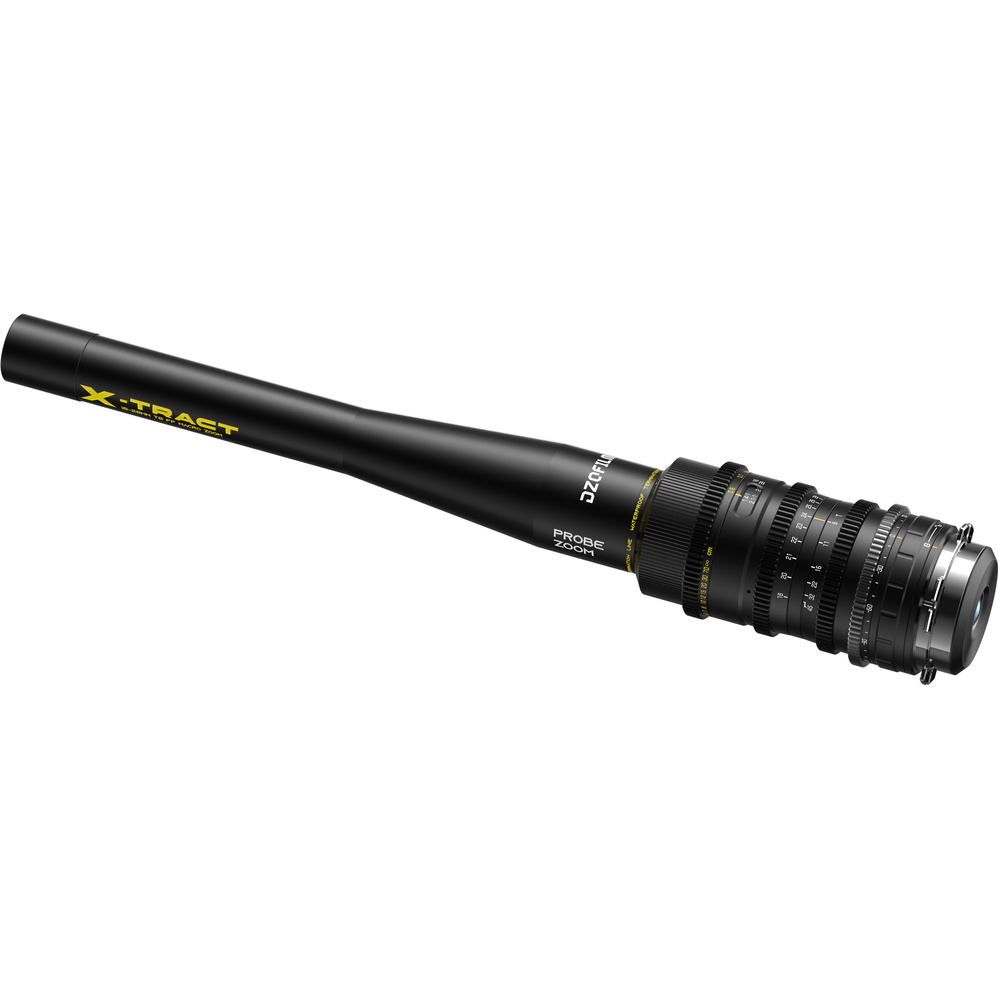

DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens (0 Degrees Direct View, ARRI PL): an industrial lens.
Highlights include full frame probe | T8 maximum aperture, innovative probe Zoom for close-ups, 0.8 MOD FIZ gears, 300° focus rotation, 2.1:1 image magnification and versatile 73 to 100° angle of view.
Key specifications: lens mount ARRI PL; maximum aperture T8; length 16.3" / 415 mm; weight 2.4 lb / 1.09 kg; minimum aperture T22.
In the box: DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens (0° Direct View, ARRI PL), front cap, rear cap, Y-Bracket Support, bolt driver and shim set and 2 more items. Manufacturer model number DZO-X1828A.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Maximum Aperture | T8 |
|---|---|
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Interchangeable Mount | No |
| Lens Format Coverage | Full-Frame |
| Image Circle | Not Specified by Manufacturer |
| Angle of View | Full Frame Horizontal: 100 to 73° |
| Focus Scales | Metric |
| Filter Thread | No |
| Zoom Ratio | 1.56x |
| Minimum Focus Distance | From Front of Lens: 0.2" / 6 mm |
| Maximum Magnification Ratio | 2.1:1 |
| Diaphragm Blades | Not Specified by Manufacturer |
| Image Stabilisation | No |
| Lens Mounting | 1x 1/4"-20 (via Included Support Foot) 3x 3/8"-16 (via Included Support Foot) |
| Gear Standard | Focus: 0.8 MOD Iris: 0.8 MOD Zoom: 0.8 MOD |
| Gear Rotation | Focus: 300° |
| Electronic Communication | No |
| Coating | Multi- & Resistance-Coated |
| Environmental Resistance | Water-Resistant (Unrated) |
| Diameter | Front: 1.2" / 29.6 mm |
| Length | 16.3" / 415 mm |
| Weight | 2.4 lb / 1.09 kg |
Product details
| Lens Type | Probe |
|---|---|
| Zoom or Prime Lens | Zoom |
In the box
- DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens (0° Direct View, ARRI PL)
- Front Cap
- Rear Cap
- Y-Bracket Support
- Bolt Driver
- Shim Set
- Hard Case with Foam Inlay
- Support Ring
