Description

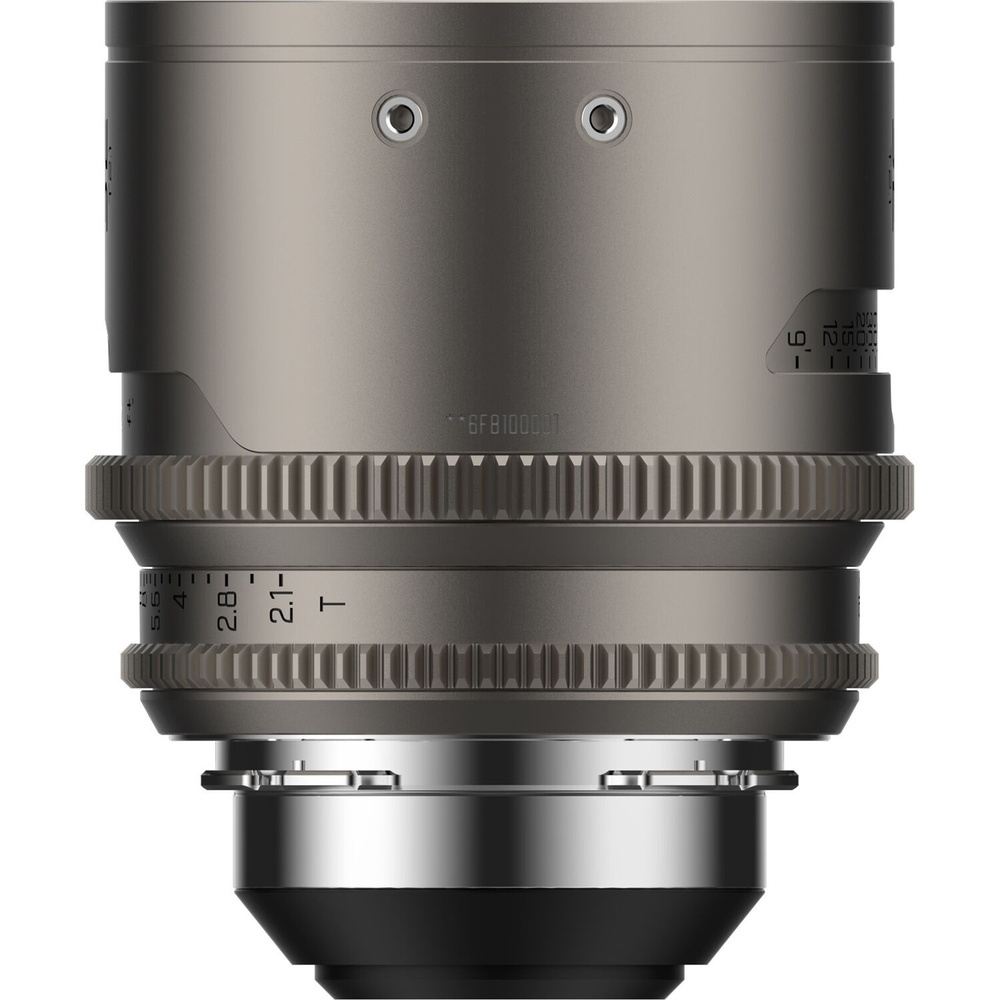

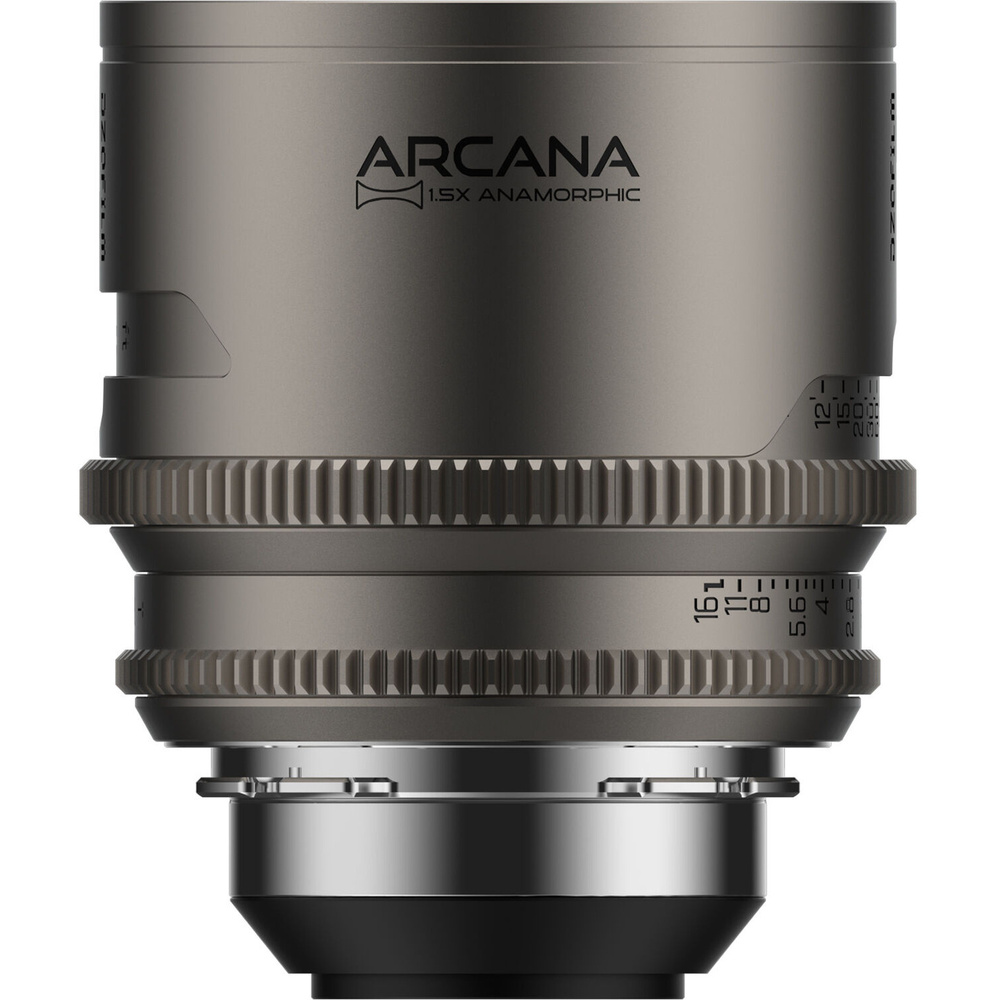

DZOFilm Arcana Anamorphic Prime 3-Lens Kit (ARRI PL, Titanium, Meters): a digital cine lens.
Highlights include full frame | T2.1-T16 aperture range, 32, 45, and 75mm anamorphic primes, neutral flare, dramatic oval bokeh, 1.5x anamorphic squeeze and 0.8 MOD gears / 270° focus rotation.
Key specifications: lens mount ARRI PL; focal length 32mm; maximum aperture T2.1; Aperture/Iris blades 14; length 3.1" / 80 mm.
Also available in other focus distance markings options: Feet. In the box: DZOFilm Arcana 32mm T2.1 Anamorphic Prime Lens (ARRI PL, Titanium, Meters), DZOFilm Arcana 45mm T2.1 Anamorphic Prime Lens (ARRI PL, Titanium, Meters) and DZOFilm Arcana 75mm T2.1 Anamorphic Prime Lens (ARRI PL, Titanium, Meters). Manufacturer model number Arcana Anamorphic 3-Lens Kit.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| DZOFilm Arcana 32mm T2.1 Anamorphic Prime Lens (ARRI PL, Titanium, Meters) | |
|---|---|
| Focal Length | 32mm |
| Maximum Aperture | T2.1 |
| Minimum Aperture | T16 |
| Lens Mount | ARRI PL |
| Horizontal Squeeze (Anamorphic) | 1.5x |
| Flare Colour | Neutral |
| Lens Format Coverage | Full-Frame |
| Focus Scales | Metric |
| Optical Design | 15 Elements in 13 Groups |
| Filter Thread | 77 mm |
| Minimum Focus Distance | From Camera Sensor: 1.6' / 48 cm |
| Aperture/Iris Blades | 14 |
| Image Stabilisation | No |
| Gear Standard | Focus, Iris: 0.8 MOD |
| Gear Rotation | Focus: 270° Iris: 52.26° |
| Electronic Communication | No |
| Diameter | Front: 3.1" / 80 mm |
| Length | 3.1" / 80 mm |
| Weight | 1.6 lb / 709 g |
| DZOFilm Arcana 45mm T2.1 Anamorphic Prime Lens (ARRI PL, Titanium, Meters) | |
| Focal Length | 45mm |
| Minimum Focus Distance | From Camera Sensor: 1.7' / 53 cm |
| Gear Rotation | Focus: 270° Iris: 51.96° |
| Weight | 1.5 lb / 695 g |
| DZOFilm Arcana 75mm T2.1 Anamorphic Prime Lens (ARRI PL, Titanium, Meters) | |
| Focal Length | 75mm |
| Optical Design | 15 Elements in 11 Groups |
| Minimum Focus Distance | From Camera Sensor: 2.6' / 78 cm |
| Gear Rotation | Focus: 270° Iris: 59.53° |
Product details
| Lens Type | Anamorphic |
|---|---|
| Zoom or Prime Lens | Prime |
| Focus Distance Markings | Meters |
In the box
- DZOFilm Arcana 32mm T2.1 Anamorphic Prime Lens (ARRI PL, Titanium, Meters)
- DZOFilm Arcana 45mm T2.1 Anamorphic Prime Lens (ARRI PL, Titanium, Meters)
- DZOFilm Arcana 75mm T2.1 Anamorphic Prime Lens (ARRI PL, Titanium, Meters)
