Description
The DJI O4 Air Unit Pro sits in our Drone FPV & Optics range.
Highlights include add FPV capabilities to your drone, fits drone frames as Small as 2", works with DJI goggles, DJI O4 transmission w/ 2T2R antennas and stream 1080p100 video.
Key specifications: storage capacity 4 GB; memory card type microSD (Up to 512 GB); wireless 5.8 GHz Radio/RF; power source Proprietary Interface; DC input power 7.4 to 26.4 VDC.
Check CASA rules for where and how high you can fly in Australia before the first flight. In the box: DJI O4 Air Unit Pro, Camera module, transmission module, antenna and 3-in-1 Cable. Manufacturer model number 190021122451.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| General | |
|---|---|
| Camera | Image Sensor: 1/1.3" CMOS FOV: 155° Equivalent Focal Length: 12mm Aperture: f/2.8 Minimum Focus Distance: 2' / 0.6 m ISO Range (Auto): 100 to 25,600 ISO Range (Manual): 100 to 25,600 Video Resolution (4K 4:3): 3840 x 2880 at 30, 48, 50, and 60 fps Video Resolution (4K 16:9): 3840 x 2160 at 30, 48, 50, 60, 100, and 120 fps Video Resolution (2.7K 4:3): 2888 x 2016 at 30, 48, 50, and 60 fps Video Resolution (2.7K 16:9): 2688 x 1512 at 30, 48, 50, 60, 100, and 120 fps Video Resolution (1080p 4:3): 1440 x 1080 at 30, 48, 50, 60, 100, and 120 fps Video Resolution (1080p 16:9): 1920 x 1080 at 30, 48, 50, 60, 100, and 120 fps Video Format: MP4 Video Bit Rate (Max): 130 Mb/s |
| Storage Capacity | 4 GB |
| Memory Card Type | microSD (Up to 512 GB) |
| Wireless | |
| Wireless | 5.8 GHz Radio/RF |
| Mobile App Compatible | No |
| Type of Transmitter | Operating Freqency: 5.17 to 5.25 and 5.725 to 5.85 Transmitter Power (EIRP): 5.1 GHz: <23 dBm (COE) Transmitter Power (EIRP): 5.8 GHz: <33 dBm (FCC), <14 dBm (COE), and <30 dBm (SRRC) Transmission Range: With DJI Goggles 3/N3: Up to 9.3 Miles / 15 km (FCC), Up to 5 Miles / 8 km (COE/SRRC) Live View Quality: 1080p at 30, 48, 50, 60, or 100 fps Communication Bandwidth: 60 MHz (Max) Antenna: 2T2R Channels with DJI Goggles 3/N3: 60/40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels with DJI Goggles 2/Integra: 40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels (FCC/SRRC/COE, 60/40 MHz): Channel 1 at 5794.5 MHz Channels (FCC/SRRC/COE, 20/10 MHz): Channel 1 at 5768.5 MHz, Channel 2 at 5789.5 MHz, and Channel 3 at 5814.5 MH |
| Latency | With DJI Goggles 3, Racing Mode, and 1080p/100: Down to 15 ms With DJI Goggles N3, Racing Mode, and 1080p/100: Down to 19 ms With DJI Goggles 2 or Integra and 1080p/100: Down to 30 ms |
| Power | |
| Power Source | Proprietary Interface |
| DC Input Power | 7.4 to 26.4 VDC |
| Physical | |
| Colour | Black |
| Operating Conditions | 14 to 104°F / -10 to 40°C |
| Cable Length | 5.5" / 140 mm (Coaxial) 3.9" / 100 mm (3-in-1) |
| Dimensions | 1.3 x 1.3 x 0.5" / 33.5 x 33.5 x 13 mm (Transmission Module) 1.01 x 0.9 x 0.8" / 25.55 x 23.3 x 20 mm (Camera Module) 4.3" / 110 mm (Each Antenna) |
| Weight | 0.6 oz / 15.6 g (Without Camera Module) 1.1 oz / 32 g (With Camera Module) 0.1 oz / 2.1 g (Each Antenna) |
Product details
| Series/Compatibility | FPV/Avata |
|---|

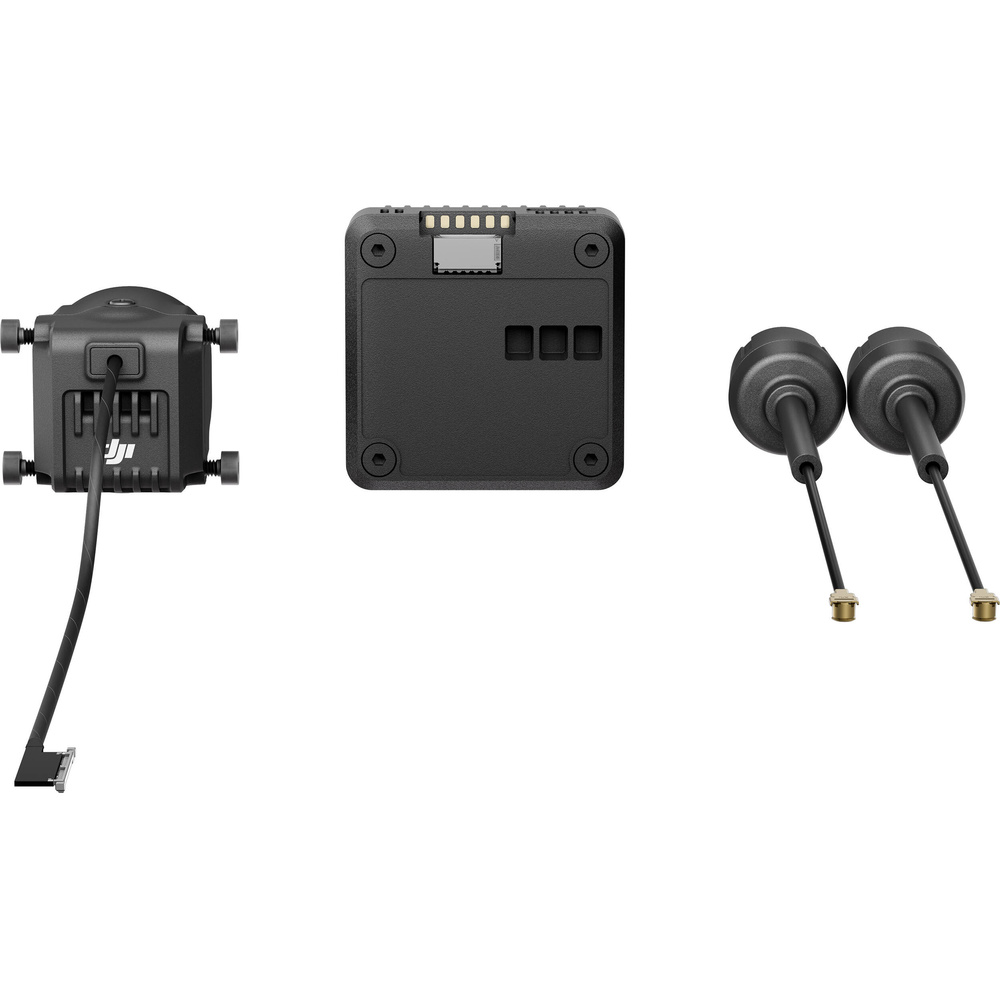

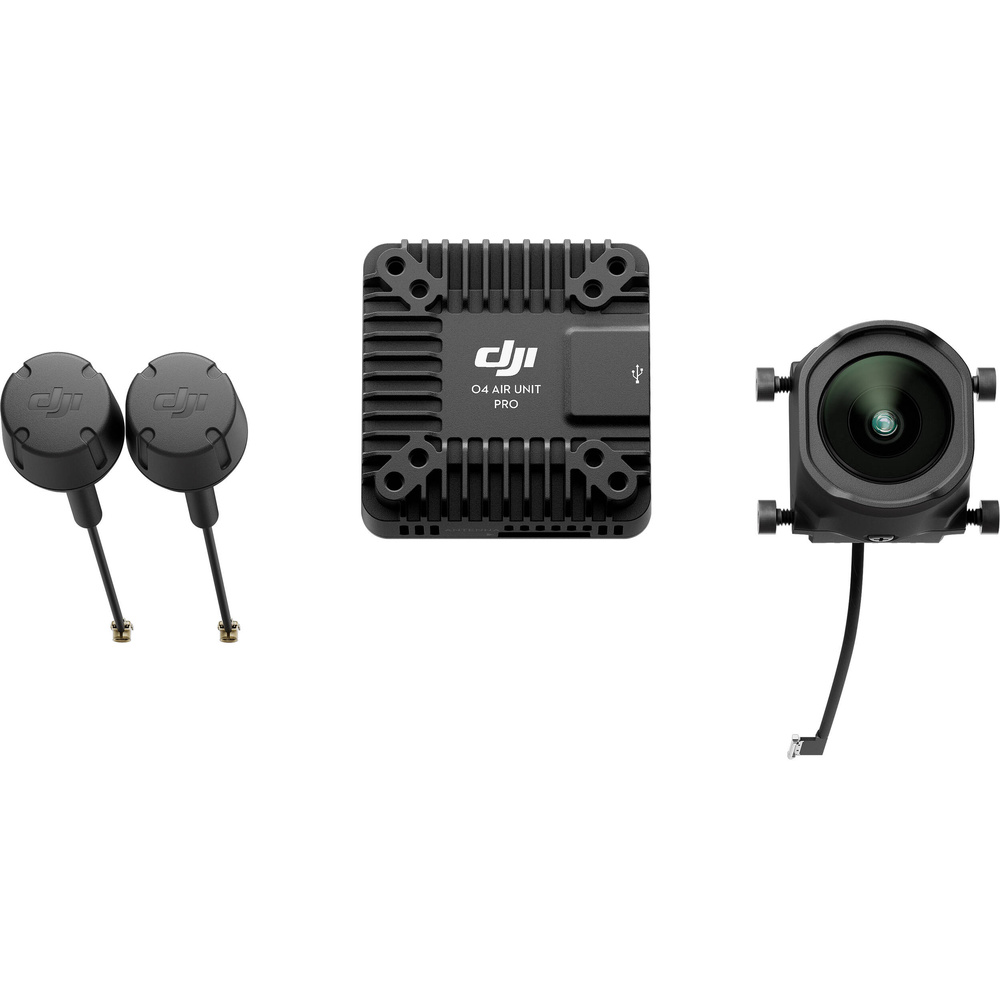

In the box
- DJI O4 Air Unit Pro
- Camera Module
- Transmission Module
- Antenna
- 3-in-1 Cable
