Description

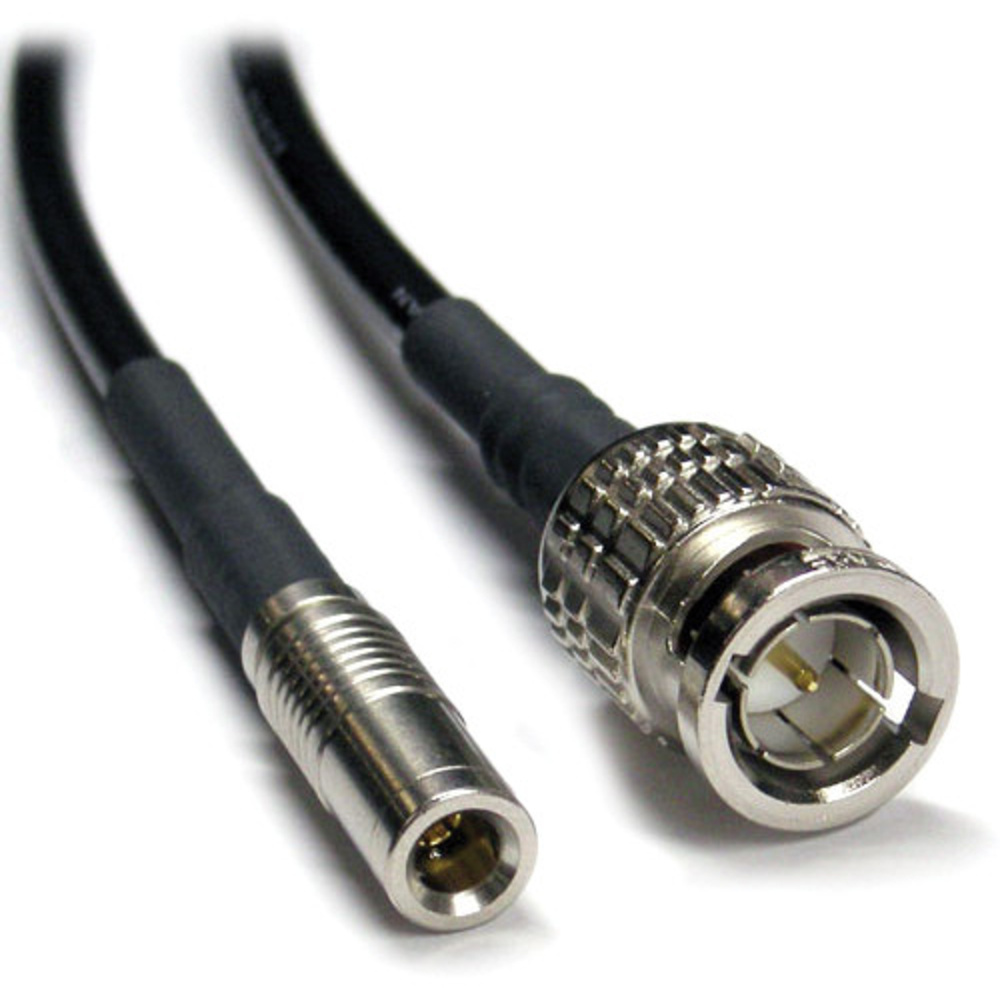

Canare L-2.5CHDB3 3G HD/SDI Cable with 1.0/2.3 DIN to BNC Male Connectors (3'): a BNC cable. Compatible with SMPTE ST 259, ST 344, ST 292, ST 424, ST 2082-1.
Highlights include 75 ohm coax cable, 23 AWG construction, 95% braided shield, AL foil outer conductor and 3 ft cable assembly.
Key specifications: cable connector BNC Male; length meters 0.91 m; length feet 3 ft; weight 2.6 kg/100 m; compatible with SMPTE ST 259, ST 344, ST 292, ST 424, ST 2082-1.
SDI over BNC locks in place and runs far longer than HDMI, which is why broadcast setups use it. Manufacturer model number CAL2.5CHDB3.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| Model | L-2.5CHD |
|---|---|
| Nominal outer diameter | 4.2 mm |
| Weight | 2.6 kg/100 m |
| Wire gauge | 23 AWG |
| Inner conductor diameter | 0.59 mm |
| Insulation outer diameter | 2.59 mm |
| Outer conductor foil | AL |
| Braiding | 0.12TA/7/16 (95%) |
| Inner conductor resistance | 66.9 Ω/km |
| Static capacitance | 53 pF/m |
| Attenuation | 43.1 dB/100 m at 6 GHz |
| Impedance | 75 Ω |
Product details
| Length Feet | 3 ft |
|---|---|
| Length Meters | 0.91 m |
| Cable Connector | BNC Male |
| Compatible With | SMPTE ST 259, ST 344, ST 292, ST 424, ST 2082-1 |
