Description

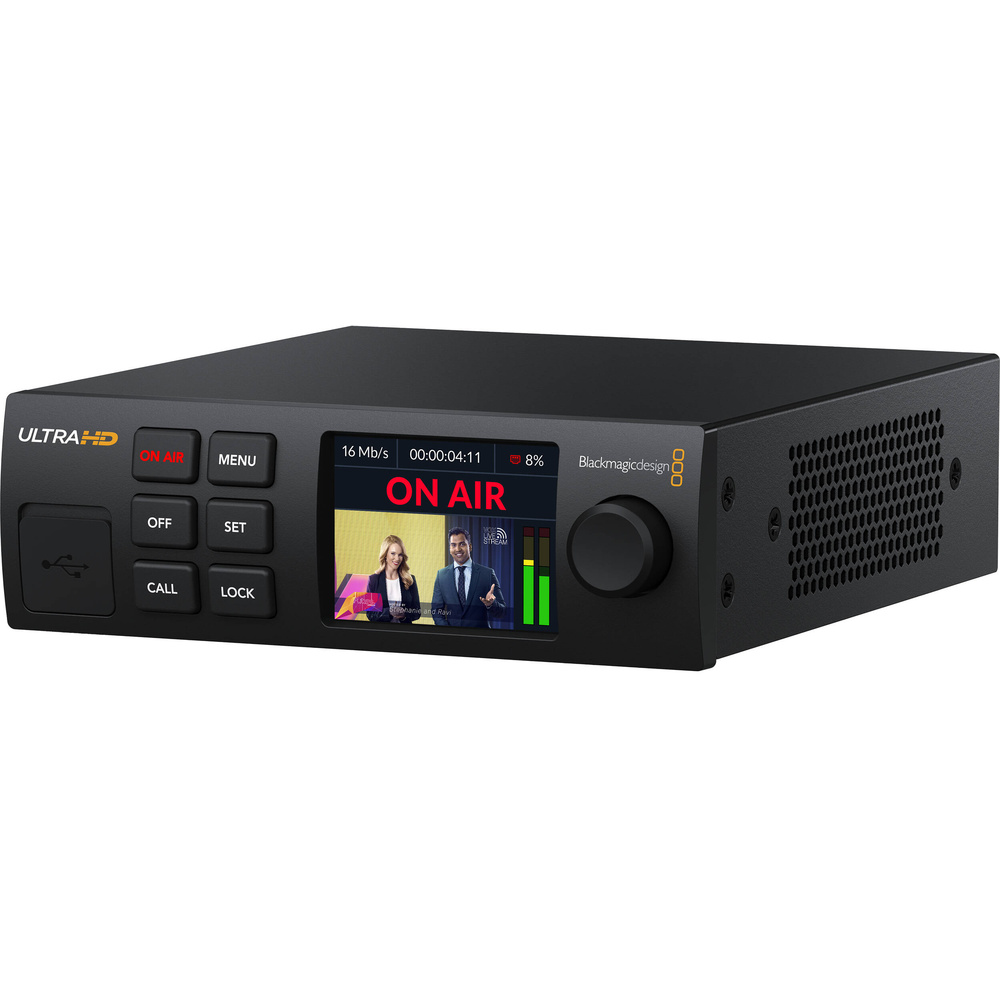

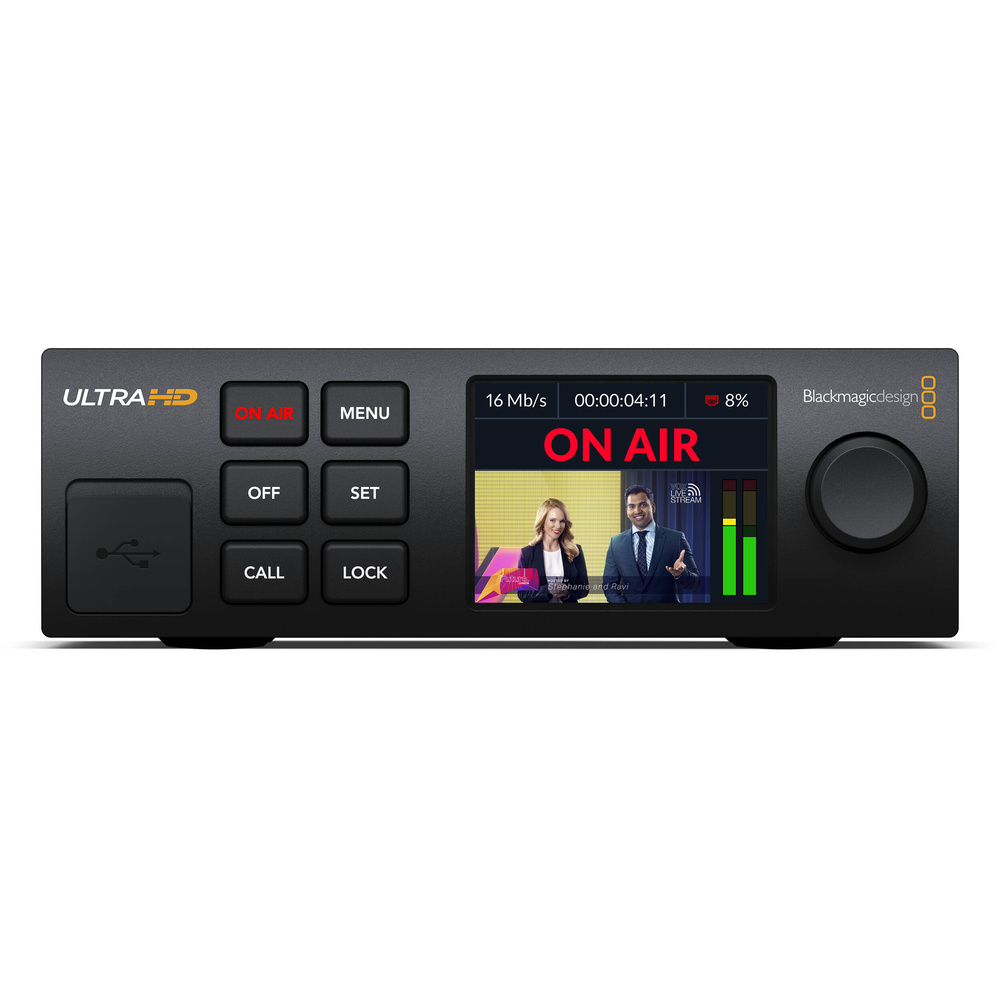

Blackmagic Design Streaming Encoder 4K: a streaming media solution.
Highlights include H.264 & H.265 Streaming to SRT or RTMP, 12G-SDI input & loop output, DCI 4K Streaming up to 60 fps, ethernet 10/100/1000BASE-T support and SDI & HDMI Monitor outputs.
Key specifications: weight 1.66 lb / 753 g; dimensions 6.9 x 5.5 x 1.75" / 17.5 x 14 x 4.45 cm; IP video H.264/H.265: 4096 x 2160 Encoding; transport protocols RTMP, SRT; compatible services Facebook Live, Twitch, YouTube Live.
In the box: Blackmagic Design streaming encoder 4K and welcome wallet with QR code for software download. Manufacturer model number Streaming Encoder 4K0.
The price includes GST and shipping is free Australia-wide; the dispatch time is shown above the add-to-cart button.
Specifications
| IP Encoding/Decoding | |
|---|---|
| IP Video | H.264/H.265: 4096 x 2160 Encoding |
| Transport Protocols | RTMP, SRT |
| Compatible Services | Facebook Live, Twitch, YouTube Live |
| Wireless | |
| Wireless | No |
| Wi-Fi | No |
| Bluetooth | No |
| Cellular Support | 5G NR / 4G LTE via Unspecified SIM Type |
| Interfaces | |
| Video I/O | 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Input 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Loop Output 1x BNC (12G-SDI / 3G-SDI / 6G-SDI / HD-SDI) Monitor Output 1x HDMI Monitor Output |
| Other I/O | 1x RJ45 Fast Ethernet Input/Output 1x USB-C Output 1x USB-C Input/Output |
| Embedded Audio | SDI Input: 16-Channel SDI Output: 16-Channel HDMI Output: 2-Channel LAN (RJ45)/USB Output |
| Power | |
| Power I/O | 1x IEC C14 Input 1x XLR 4-Pin Input |
| Power Consumption | (25 W) |
| General | |
| Operating Conditions | 32 to 104°F / 0 to 40°C at 0 to 90% Humidity |
| Storage Conditions | -4 to 113°F / -20 to 45°C at 0 to 90% Humidity |
| Display | LCD |
| Rackmount Size | 1 U |
| Dimensions | 6.9 x 5.5 x 1.75" / 17.5 x 14 x 4.45 cm |
| Weight | 1.66 lb / 753 g |
In the box
- Blackmagic Design Streaming Encoder 4K
- Welcome Wallet with QR Code for Software Download
